3M 7010328210 Trizact 237AA Abrasive Belt 30x0.5 Inch Ao

Product Description

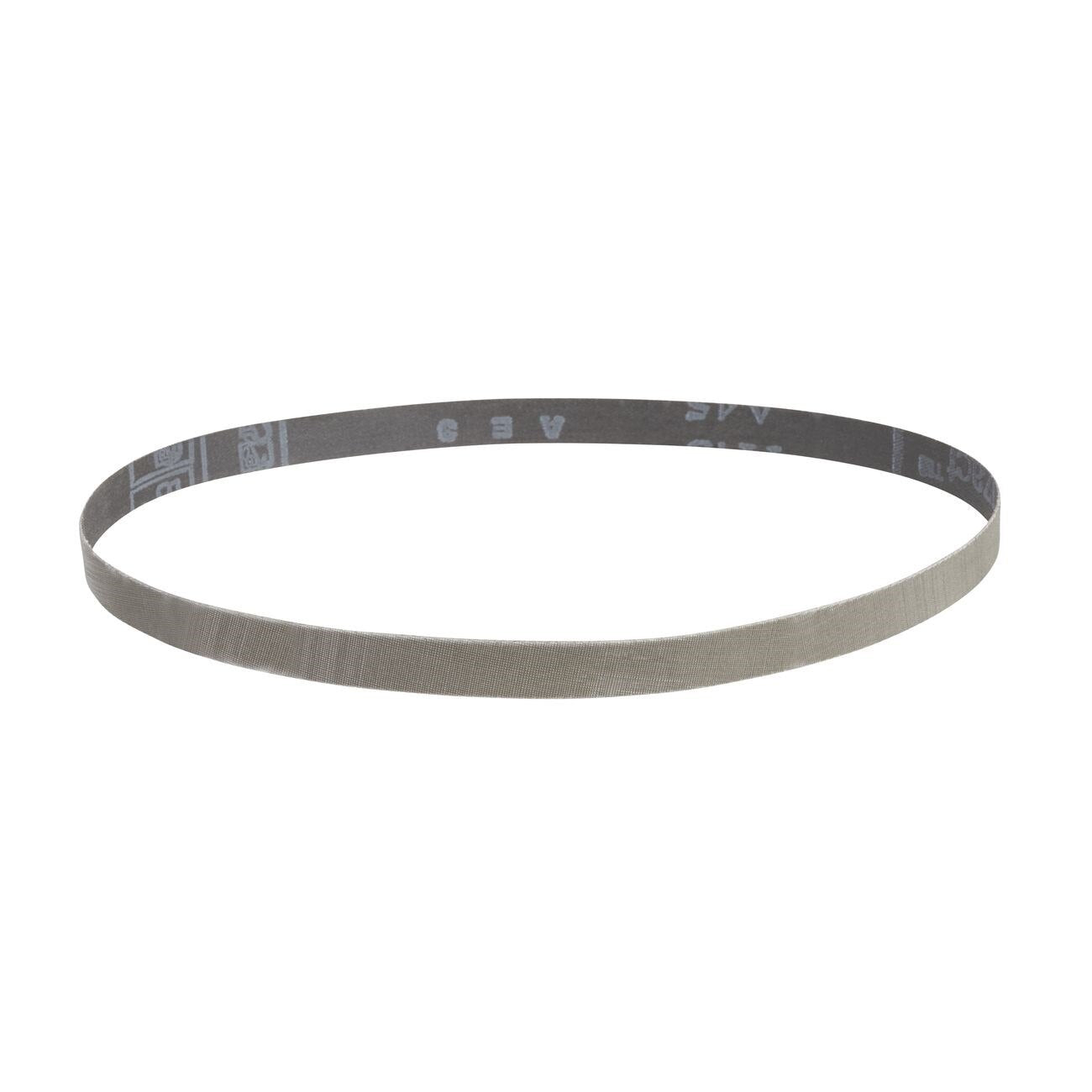

The 3M 7010328210 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and predictable finish throughout the belt's life. The cloth backing provides flexibility suited for finishing contoured surfaces. This belt measures 30 inches in length and 1/2 inch in width.

This belt is used in industrial finishing operations including robotic and automated grinding lines, as well as manual polishing work. It is well suited for intermediate finishing and fine polishing steps that precede plating or buffing operations on metal workpieces. The three-dimensional abrasive structure produces finer, more uniform finishes compared to conventional electrostatically coated abrasives, making it a reliable choice for controlled, repeatable surface preparation in production settings.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that continually expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpieces
• X-weight cloth backing provides flexibility for finishing contoured surfaces
• Three-dimensional abrasive structure delivers consistent finishes throughout belt life, including in robotic applications
• Produces finer finishes than conventional electrostatically coated abrasives
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinders and finishing machines that accept 30-inch by 1/2-inch abrasive belts in industrial metal finishing applications.

Installation Notes

Installation should be performed by a qualified operator familiar with the belt grinder or finishing machine in use. Confirm the machine is powered down and locked out before changing belts. Verify belt tracking and tension according to the machine manufacturer's specifications before resuming operation. Inspect the belt for damage before each use and replace immediately if tears or delamination are present.

Technical Specifications

• Belt Length: 30 inches
• Belt Width: 1/2 inch
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 5.676 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328210
