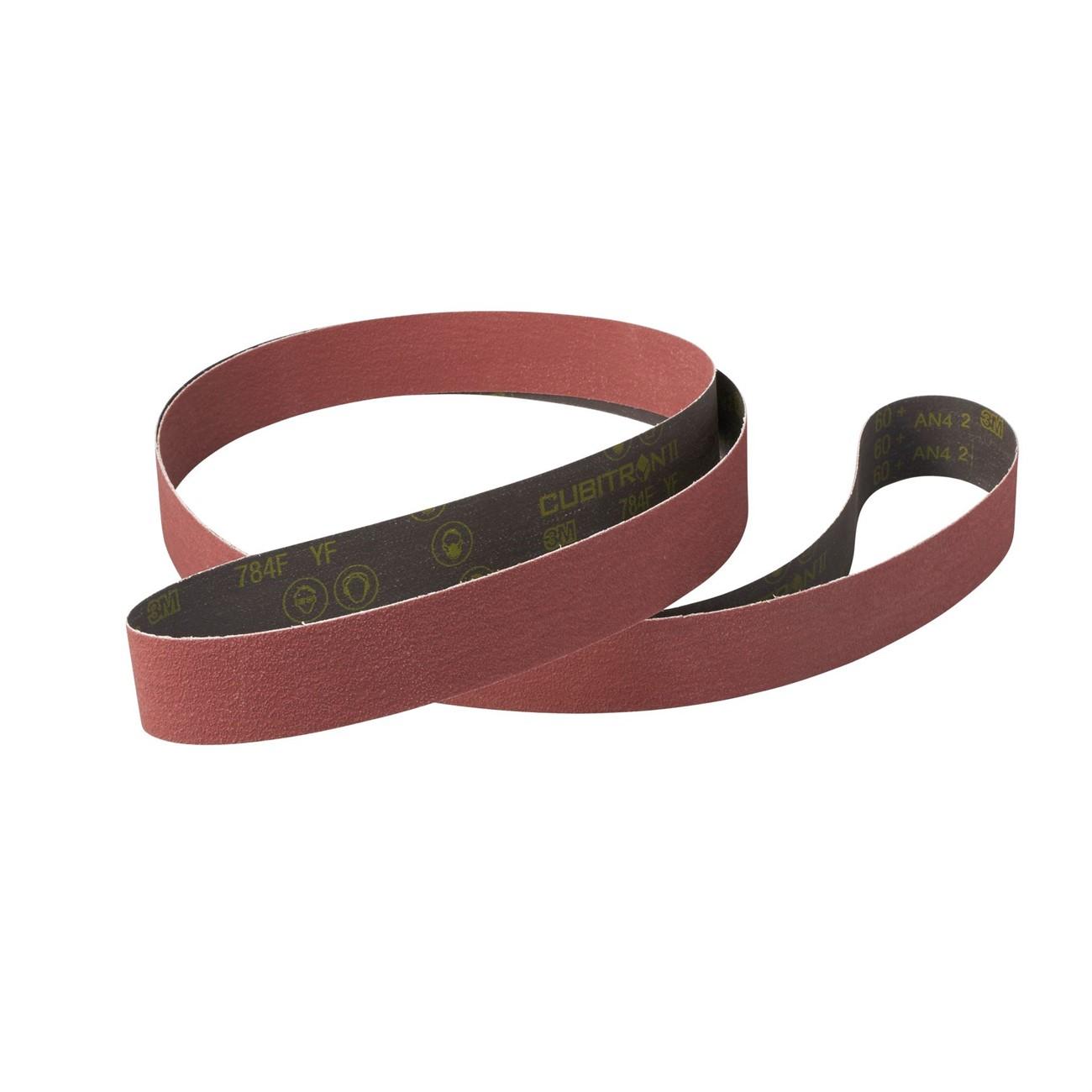

3M 7010327800 Abrasive Belt 60 Grit 48x2 Inch Cubitron Ii

Product Description

The 3M 7010327800 is a Cubitron II 784F cloth abrasive belt designed for medium-pressure grinding and blending on metal surfaces. It measures 48 inches long by 2 inches wide and runs at 60 grit. The belt uses 3M Precision-Shaped Grain, a proprietary blend of shaped ceramic and premium aluminum oxide minerals, to deliver a faster, more consistent cut and longer service life compared to conventional ceramic aluminum oxide belts. A durable resin bond resists heat-related deterioration, and an integrated grinding aid helps cool the abrasive process on heat-sensitive alloys. Licensed HVAC technicians, fabricators, and industrial maintenance professionals are the typical installers.

This belt is suited for both straight and contoured metal surfaces in grinding and blending operations. The YF-weight polyester backing at 60 grit provides moderate flexibility for conformability across varied surface profiles. It performs in wet or dry conditions on all metals, making it appropriate for robotic, pressure-assisted, and hand-held belt grinder applications in fabrication shops, maintenance facilities, and light industrial environments.

Key Features

• Precision-Shaped Grain blend delivers longer belt life than comparable aluminum oxide abrasives
• Proprietary mineral mix produces consistent, faster stock removal at medium pressure
• Grinding aid cools the cutting zone, reducing heat buildup on heat-sensitive alloys
• Waterproof YF-weight polyester backing supports wet and dry use on all metals
• Moderately flexible backing conforms to both straight and contoured workpiece profiles
• Durable resin bond resists heat deterioration to extend service intervals and reduce changeouts

Compatibility

Designed for use on all metals in medium-pressure grinding and blending applications with belt grinders that accept a 48-inch by 2-inch abrasive belt.

Installation Notes

Install on a compatible belt grinder with the drive arrow marked on the belt backing aligned to the direction of machine travel before powering the unit. Ensure the machine is fully de-energized and locked out before changing the belt. Inspect the platen and contact wheel for wear before mounting a new belt, as surface irregularities can cause premature belt failure.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 2 inches
• Grit: 60
• Abrasive Type: Precision-Shaped Grain ceramic and aluminum oxide blend
• Backing Material: YF-weight polyester cloth
• Bond Type: Resin
• Color: Maroon
• Application: Wet or dry grinding and blending on all metals
• Weight: 9.503 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010327800
