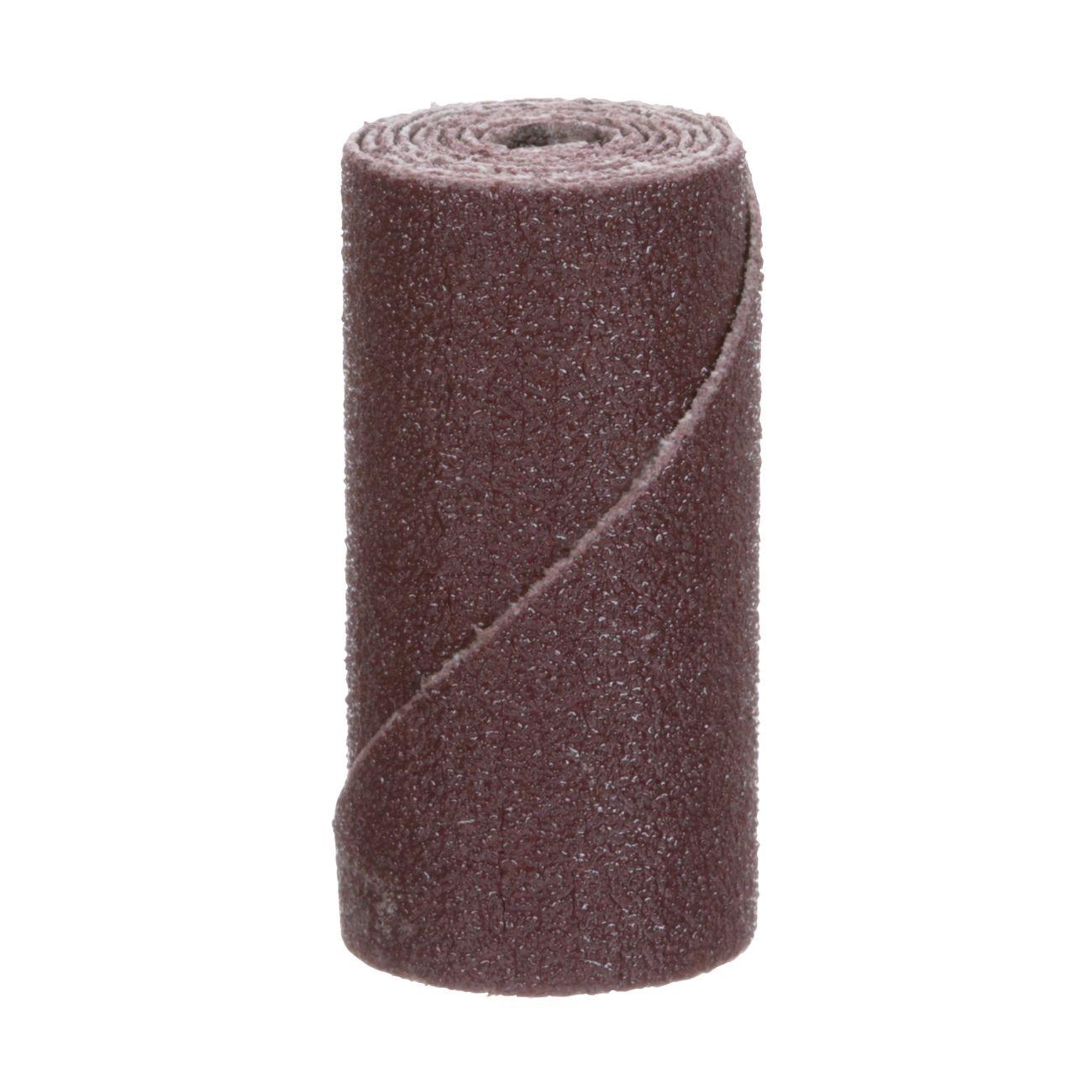

3M 7010327459 Cartridge Roll 180 Grit 0.5x1.5x0.125 in

Product Description

The 3M 7010327459 is an aluminum oxide cartridge roll designed for precision grinding, blending, and finishing on contoured or hard-to-reach surfaces. Built on an X-weight cloth backing, the roll delivers durability under moderate-to-heavy cutting pressure. Resin bonding provides heat resistance, helping the abrasive grain stay adhered during extended use. At P180 grit, it is suited for fine stock removal and surface prep work. This roll measures 0.5 inches in diameter by 1.5 inches in length with a 0.125-inch spindle hole and is a standard mandrel-mounted consumable used in metalworking, fabrication, and finishing applications.

This cartridge roll is used in die grinders and rotary tools for deburring, blending welds, and finishing interior contours on metal components. It is well suited for fabrication shops, aerospace maintenance, tool and die work, and general metalworking where consistent scratch patterns and surface finish quality are required. The X-weight cloth backing resists tearing under the lateral forces common in tight-radius grinding operations.

Key Features

• Aluminum oxide grain for consistent cut rate on ferrous and non-ferrous metals
• X-weight cloth backing provides durability and resistance to tearing under load
• Resin bonded construction resists heat buildup during use
• P180 grit for fine stock removal and surface blending
• Mandrel-mounted roll format suits die grinders and rotary tool spindles
• Compact 0.5 x 1.5 x 0.125-inch dimensions for access to contoured and recessed areas

Compatibility

Designed for use with standard mandrel-style die grinders and rotary finishing tools that accept 0.125-inch spindle cartridge rolls.

Installation Notes

Cartridge rolls are installed by a fabricator or metalworking technician onto a matching mandrel spindle. Ensure the grinder is powered off and unplugged before mounting or removing the roll. Do not exceed the maximum RPM rating of the tool or the roll. Inspect the roll for damage before each use and replace when the abrasive is worn or the backing shows signs of delamination.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Grit: P180
• Backing: X-weight Cloth
• Bond Type: Resin
• Diameter: 0.5 inches
• Length: 1.5 inches
• Spindle Hole: 0.125 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• Weight: 0.02 pounds
• UPC: 00051144970599

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010327459
