3M 7010327451 Ceramic Cartridge Roll 80 Grit 0.75x1.5x0.125 in

Product Description

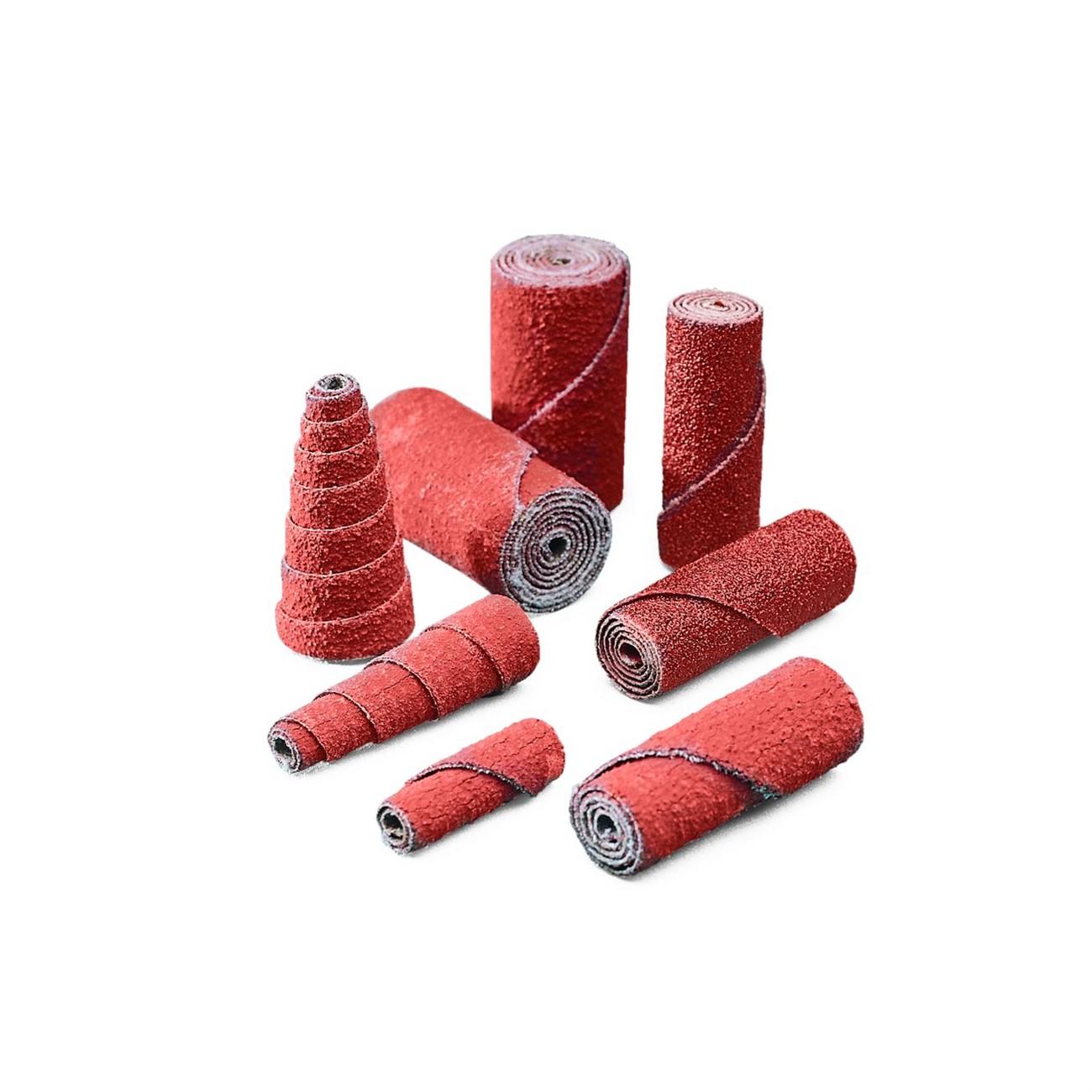

The 3M 7010327451 is a ceramic grain cartridge roll designed for aggressive material removal and consistent cut rate on metal and other hard surfaces. Built on an X-weight cloth backing, the roll delivers durability under high-pressure grinding applications. A resin bond system provides heat resistance, and an integrated grinding aid promotes cooler grinding to extend abrasive life and protect workpiece surfaces. This cartridge roll measures 0.75 inches in diameter by 1.5 inches in length with a 0.125-inch arbor hole. It is rated at 80 grit for stock removal work. Machinists, fabricators, and metal finishing technicians are the primary installers and users.

This cartridge roll is suited for use in die grinders and cartridge roll mandrels in production and maintenance environments. Common applications include deburring, blending welds, and surface prep on ferrous and non-ferrous metals. The 80 grit X-weight construction makes it appropriate for initial stock removal passes before moving to finer finishing steps. It is sold in a minimum quantity of 100 rolls per order.

Key Features

• Ceramic grain abrasive for fast, consistent cut rate on hard metals
• X-weight cloth backing for durability under high-pressure grinding
• Resin bond construction provides heat resistance during extended use
• Integrated grinding aid promotes cooler grinding and longer abrasive life
• 80 grit rating suited for aggressive stock removal and weld blending
• Compact 0.75 x 1.5 x 0.125 inch size fits standard cartridge roll mandrels

Compatibility

Designed for use with standard die grinder mandrels that accept cartridge rolls with a 0.125-inch arbor hole and 0.75-inch diameter.

Installation Notes

Cartridge rolls are installed and used by machinists, metal fabricators, and finishing technicians. Before mounting, confirm the mandrel shaft size matches the 0.125-inch arbor hole. Ensure the die grinder is powered off and air supply is disconnected before changing rolls. Do not exceed the maximum RPM rating of the grinder or mandrel in use.

Technical Specifications

• Abrasive Grain: Ceramic
• Backing: X-weight cloth
• Bond Type: Resin
• Grit: 80
• Diameter: 0.75 inches
• Length: 1.5 inches
• Arbor Hole: 0.125 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051144807970

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010327451
