3M 7010327297 Ao Cloth Belt 80 Grit 132x2 Inch Open Coat

Product Description

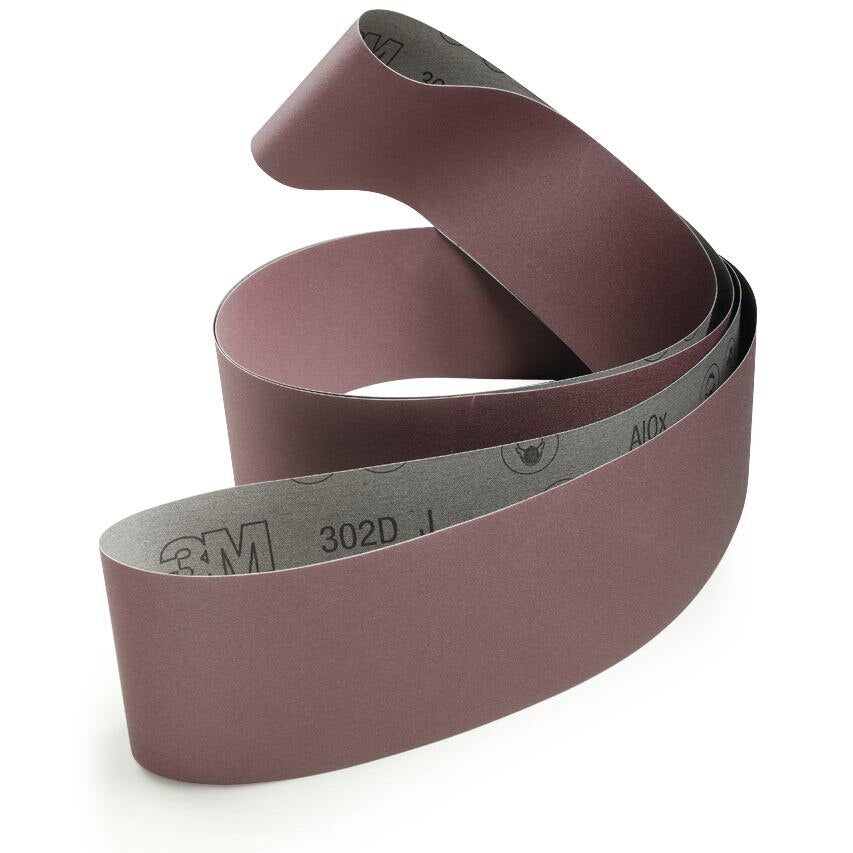

The 3M 7010327297 is an aluminum oxide coated abrasive belt designed for metalworking applications on backstand grinders, file belt tools, and benchtop motors. The 302D series features a flexible J-weight cloth backing that conforms to contours and complex part geometries, making it suitable for light grinding, finishing, deburring, and grain setting. Open coat construction actively clears sanding dust from the belt surface during use, reducing loading and extending abrasive life. The resin bond system locks abrasive grains firmly in place to maintain consistent cut rate throughout the belt's service life.

This belt is sized at 132 inches in length and 2 inches in width with an 80-grit aluminum oxide abrasive. It is intended for dry metalworking on carbon steel, stainless steel, aluminum, brass, bronze, and copper. The open coat and flexible backing combination makes it well suited for blending welds, finishing fabricated components, and deburring cut edges in both shop and field environments. Metal fabricators, welders, and maintenance technicians working with mixed metal stock are the primary users of this belt.

Key Features

• Aluminum oxide abrasive delivers fast cutting on ferrous and non-ferrous metals
• J-weight cloth backing conforms to curves, contours, and complex part profiles
• Open coat construction reduces loading and clears dust for a more aggressive, longer-lasting cut
• Resin bond system maximizes grain retention and overall abrasive life
• Rated for dry metalworking only
• Compatible with backstand grinders, file belt tools, and benchtop motor setups

Compatibility

Designed for use on backstand grinders, file belt tools, and benchtop motors accepting a 132-inch by 2-inch abrasive belt.

Installation Notes

Belt installation should be performed by a qualified operator familiar with abrasive belt equipment. Power down and lockout the grinder or motor before changing the belt. Verify belt tracking and tension according to the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or damage prior to each use and replace immediately if any defects are found.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 2 inches
• Grit: 80
• Abrasive Material: Aluminum Oxide (AO)
• Backing Type: J-Weight Cloth
• Coat Type: Open Coat
• Bond Type: Resin
• Application: Dry Metalworking
• Weight: 0.34 pounds
• UPC: 00051141307107

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010327297
