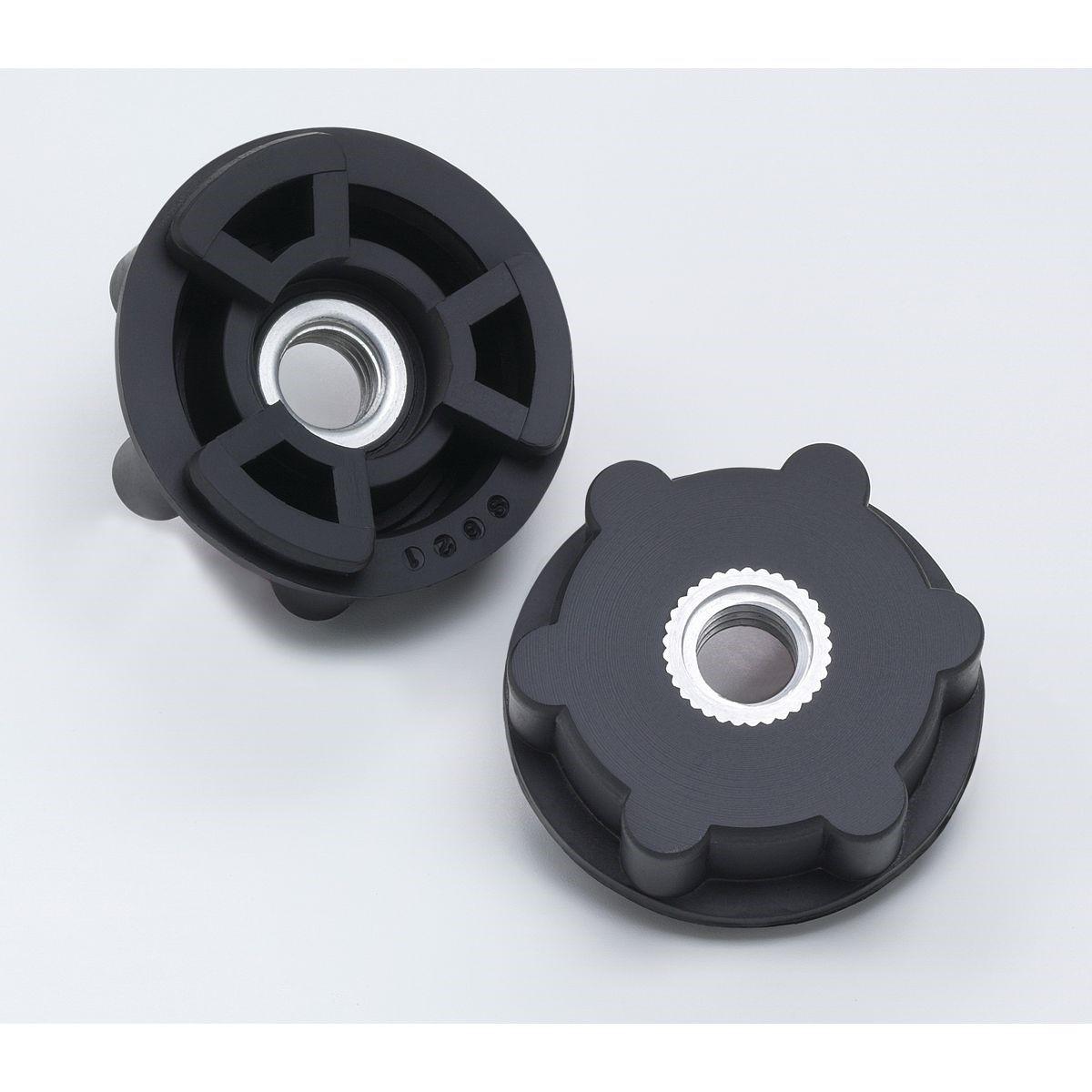

3M 7010326831 Disc Pad Hub 2.5 in 5/8-11 Internal Thread

Product Description

The 3M 7010326831 is a disc pad hub designed for use with abrasive face plate systems on angle grinders and right-angle tools. It features a 5/8-11 internal threaded metal insert that accepts standard grinder spindles, providing a secure mechanical connection between the tool and the face plate. The hub measures 2.5 inches in diameter and is packaged loose without paperboard inserts, reducing material waste on the job site. Licensed tradespeople working with surface preparation, weld blending, or stock removal applications will find this hub compatible with a range of face plate configurations.

This disc pad hub is suited for metalworking, fabrication, and general surface conditioning applications in both shop and field environments. It is compatible with 4.5-inch and 9-inch face plates, making it adaptable across common angle grinder setups. The 5/8-11 internal thread is the industry-standard spindle thread found on most 4.5-inch and larger right-angle grinders, so integration into existing tool inventories is straightforward.

Key Features

• 5/8-11 internal threaded metal insert for secure spindle engagement
• Compatible with 4.5-inch and 9-inch face plates
• 2.5-inch hub diameter fits standard disc pad assemblies
• Works across all face plate configurations in the compatible size range
• Packaged loose without paperboard inserts to minimize job-site waste

Compatibility

Designed for use with 4.5-inch and 9-inch face plates. The 5/8-11 internal thread is compatible with standard angle grinder spindles using that thread specification.

Installation Notes

Installation should be performed by a qualified technician familiar with abrasive tooling. Always power down and disconnect the grinder from its power source before attaching or removing the disc pad hub. Thread the hub onto the spindle by hand first, then confirm secure seating before operating. Follow all applicable ANSI B7 abrasive safety standards and the tool manufacturer's operating instructions.

Technical Specifications

• Hub Diameter: 2.5 inches
• Thread Size: 5/8-11 Internal
• Compatible Face Plate Sizes: 4.5 inches and 9 inches
• Weight: 0.19 pounds
• Unit of Measure: Each
• UPC: 00051141286266

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326831
