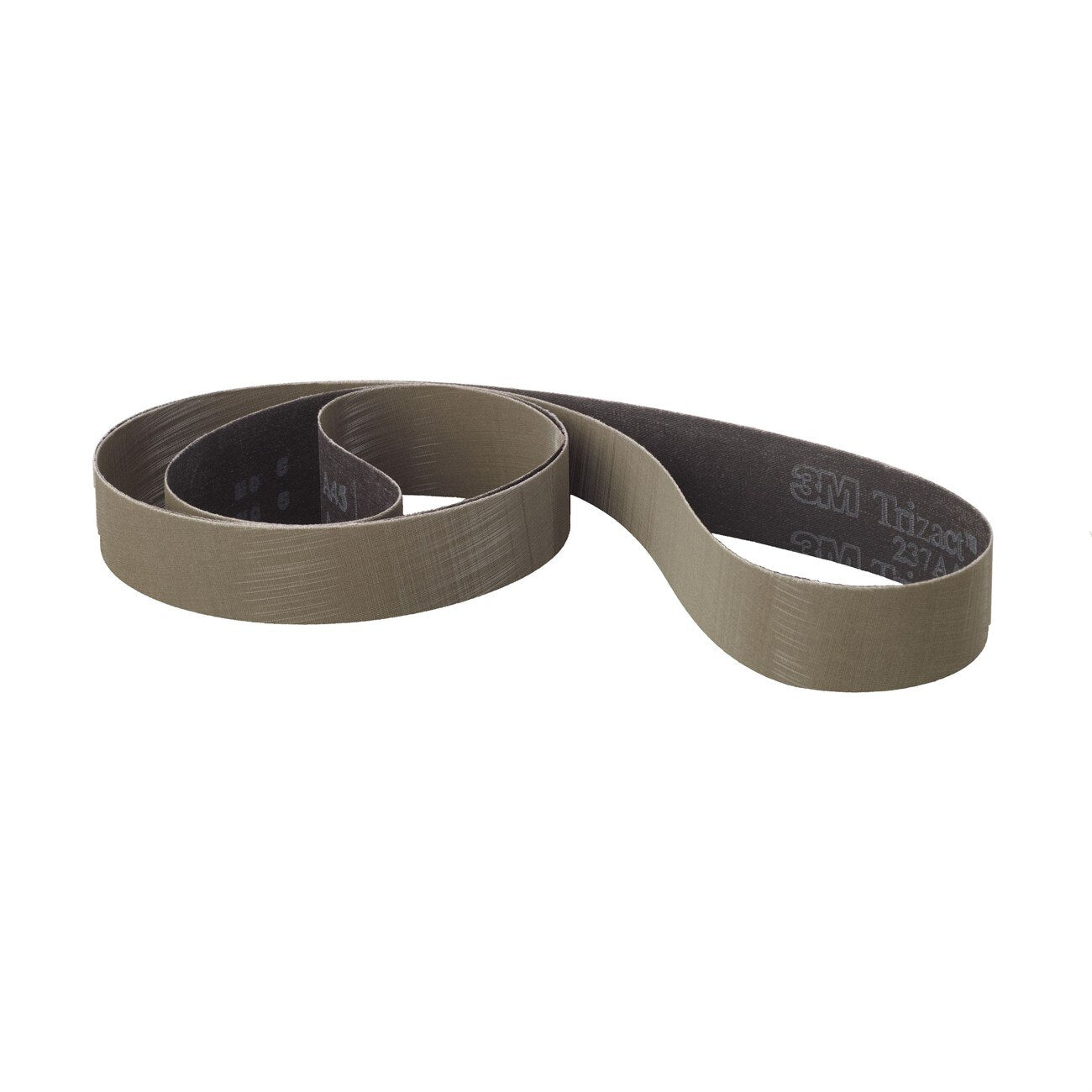

3M 7010326350 Abrasive Belt 72x2.5 Inch Ao Cloth

Product Description

The 3M 7010326350 is a Trizact 237AA abrasive belt built on an X-weight cloth backing with proprietary microreplication technology. Micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to the backing in a precise pattern. As each pyramid wears down during use, fresh sharp mineral is continuously exposed, producing a consistent cut rate and predictable surface finish from the first pass to the last. The belt measures 72 inches in length and 2.5 inches in width and is suited for intermediate finishing and fine polishing operations in both manual and automated environments.

This belt is designed for intermediate finishing and fine polishing work prior to plating or buffing. The flexible cloth backing conforms to contoured surfaces, making it effective on complex workpiece geometries. The three-dimensional abrasive structure delivers consistent finishes throughout the life of the belt, which is especially valuable in robotic or automated finishing cells where process repeatability is critical. Metalworking shops, fabricators, and finishing operations use this belt where surface finish consistency and predictable tool life are priorities.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids
• Self-sharpening structure runs cooler than conventional abrasives, reducing heat buildup on the workpiece
• X-weight cloth backing provides flexibility for finishing over contoured surfaces
• Three-dimensional design produces consistent finishes throughout abrasive life, ideal for robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt finishing machines that accept a 72-inch by 2.5-inch abrasive belt. Typical applications include metalworking, fabrication, and automated finishing operations requiring consistent surface finish results.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt finishing equipment. Power down and lock out the machine before changing belts. Verify belt tracking and tension per the equipment manufacturer guidelines before resuming operation. Inspect the belt for tears or damage before each use and replace immediately if any are found.

Technical Specifications

• Belt Length: 72 inches
• Belt Width: 2.5 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.37 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326350
