3M 7010326323 Abrasive Belt 36x4 Inch Ao Cloth

Product Description

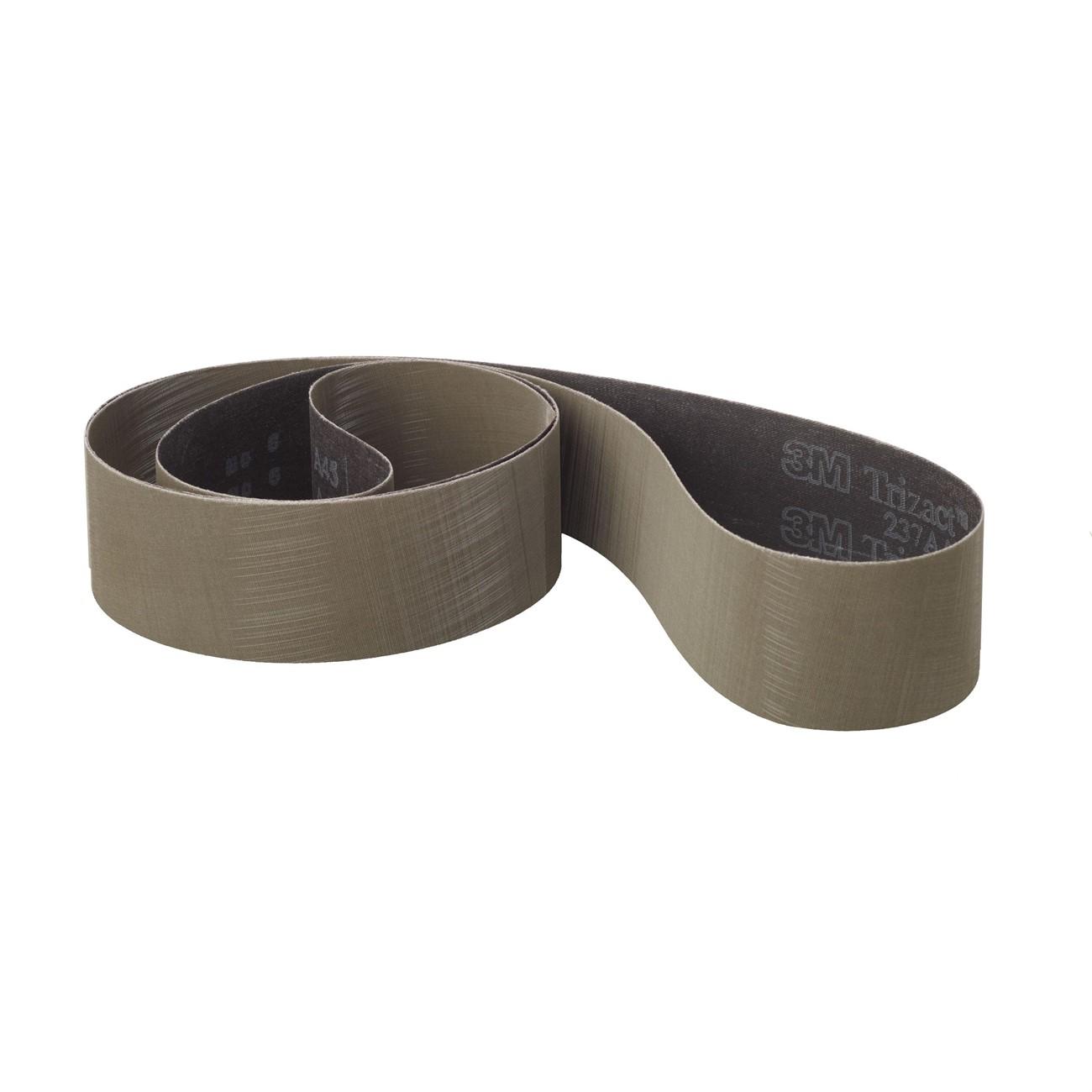

The 3M 7010326323 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. At 36 inches long and 4 inches wide, this belt fits standard wide-belt and slack-belt finishing machines.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing operations. The flexible X-weight cloth backing conforms to contoured surfaces, making it effective on curved or irregular workpieces. The three-dimensional abrasive structure also supports consistent, repeatable finishes in robotic and automated sanding applications where process control is critical. Fabricators, metalworkers, and finishing operators working in production environments will find this belt well-suited to high-volume workflows.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat-related surface damage
• Flexible X-weight cloth backing conforms to contoured and irregular surfaces
• Three-dimensional abrasive design delivers consistent finishes in robotic and automated applications
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Intended for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on standard wide-belt and slack-belt finishing machines that accept 36-inch by 4-inch abrasive belts in metalworking and industrial finishing applications.

Installation Notes

Belt installation and replacement should be performed by qualified finishing or machine operators following the equipment manufacturer's guidelines. Power down and lock out the machine before changing belts. Verify belt tracking and tension according to machine specifications before resuming operation. Ensure the belt runs in the correct direction as indicated by the arrow on the belt backing, if present.

Technical Specifications

• Belt Length: 36 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.41 pounds
• Unit of Measure: Each
• UPC: 00051125193283

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326323
