3M 7010326311 Trizact Abrasive Belt 132x2.37 Inch Ao

Product Description

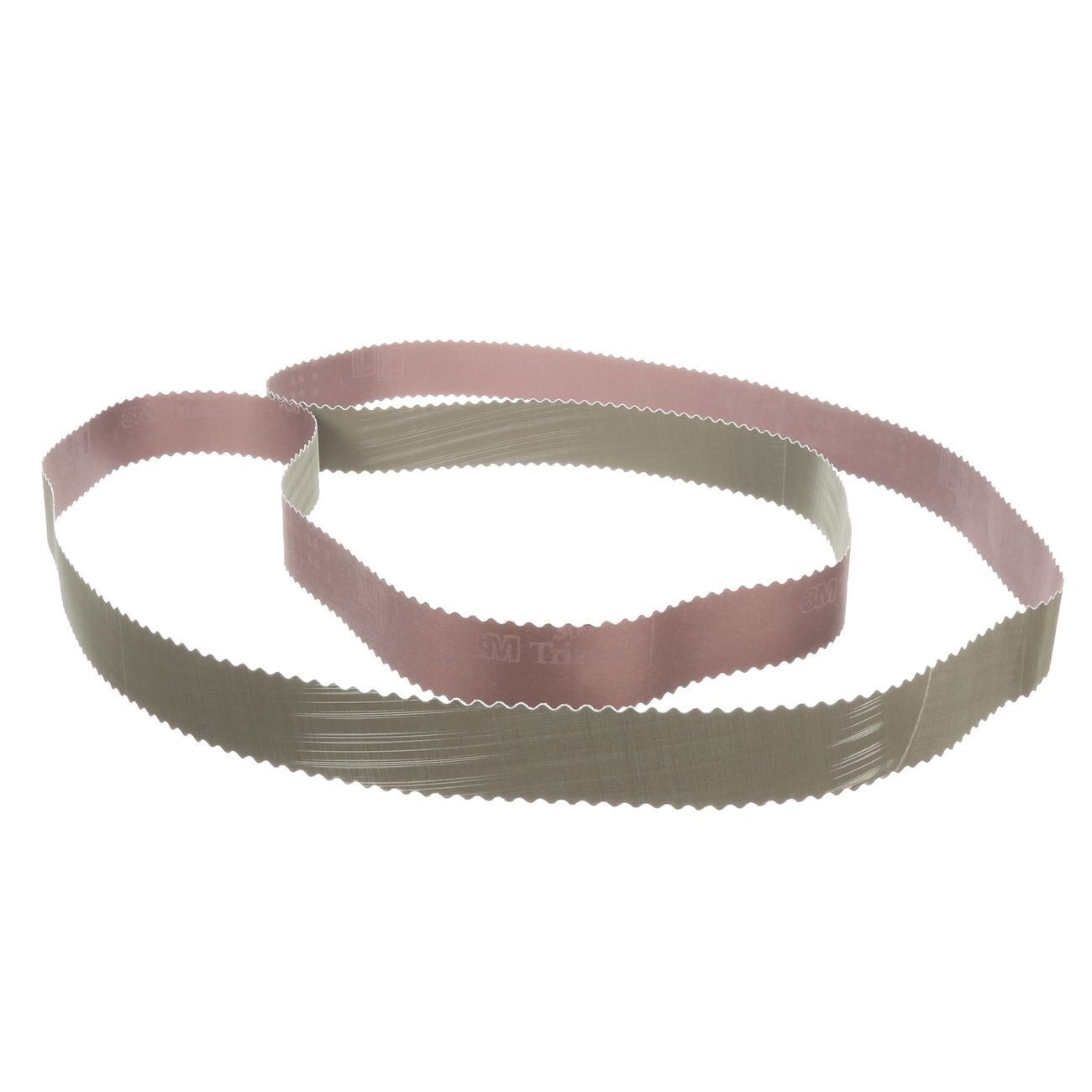

The 3M 7010326311 is a Trizact 307EA abrasive belt built on rayon cloth backing with aluminum oxide mineral formed into microreplication pyramids. As the pyramids wear during use, fresh, sharp cutting edges are continuously exposed. This self-renewing structure produces a consistent cut rate and a predictable finish throughout the life of the belt. The rayon cloth backing is flexible enough to conform to contoured and profiled surfaces. At 132 inches long and 2.37 inches wide, this belt is sized for industrial-grade belt grinding and finishing equipment used in metal fabrication and finishing shops.

This belt is designed for intermediate finishing and fine polishing operations ahead of plating or buffing. The three-dimensional abrasive structure makes it well suited for robotic finishing applications where consistent, repeatable results are critical across high-volume production runs. It performs on ferrous and non-ferrous metals where a controlled, fine surface finish is required before a final surface treatment step. Fabricators, metal finishers, and production grinding operators are the primary users of this belt.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening abrasive pyramids
• Self-sharpening structure runs cooler than conventional coated abrasives, reducing heat distortion risk
• Flexible rayon cloth backing conforms to contoured and profiled workpiece surfaces
• Three-dimensional abrasive design delivers consistent finishes across the full belt life in robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinding and finishing machines that accept 132-inch by 2.37-inch abrasive belts. Verify machine contact wheel diameter, platen compatibility, and belt tracking adjustment range before installation.

Installation Notes

Belt installation should be performed by qualified personnel following the equipment manufacturer's guidelines. Power down and lock out the grinding machine before mounting or removing the belt. Confirm belt tracking direction matches the arrow marked on the belt backing before running the machine. Inspect the contact wheel and platen for wear or damage that could cause uneven belt loading or premature failure.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 2.37 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Type: Trizact 307EA Microreplication
• Unit of Measure: Each
• Weight: 0.28 pounds
• UPC: 00051125167239

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326311
