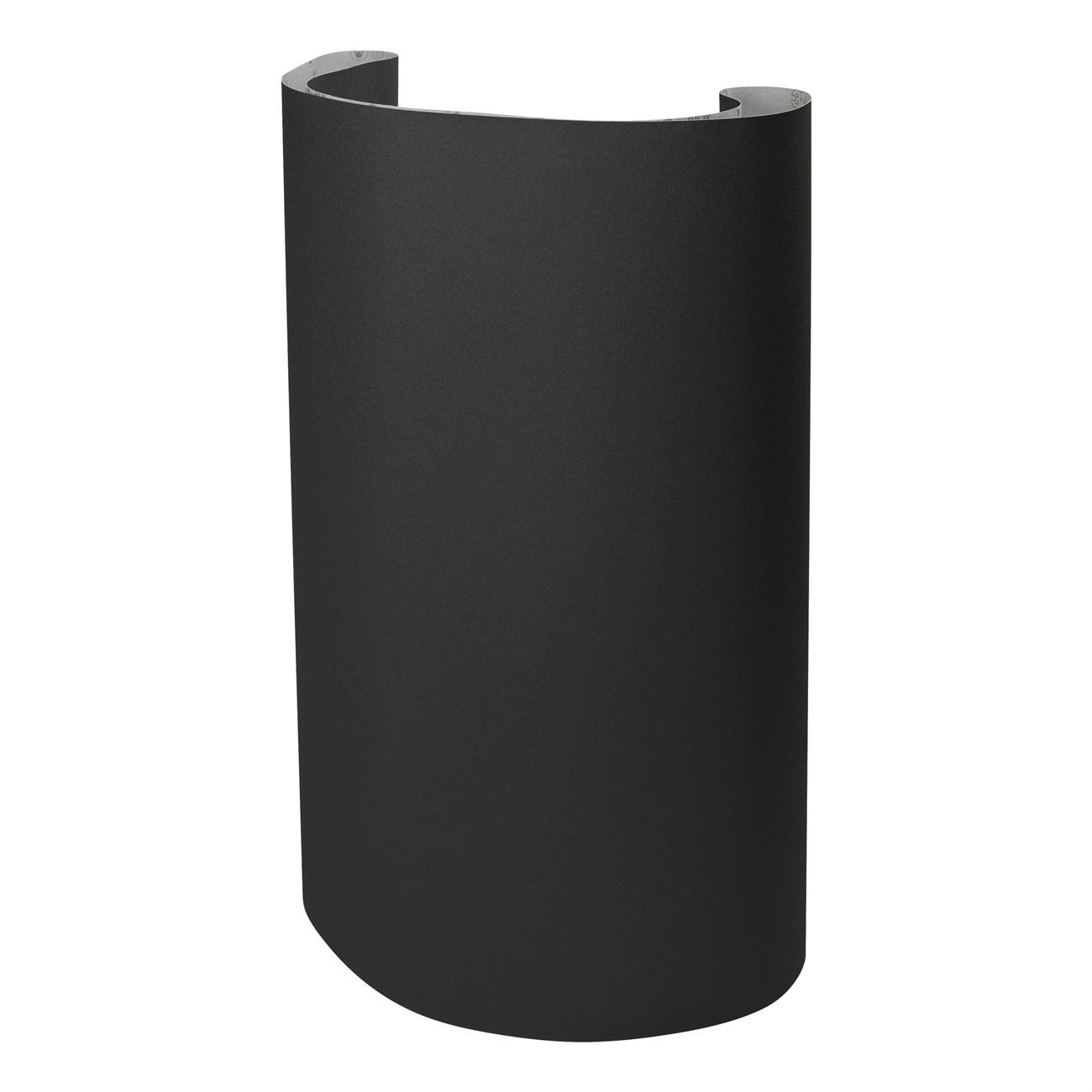

3M 7010326292 Abrasive Sanding Belt 75x37 Inch 220 Grit

Product Description

The 3M 7010326292 is a silicon carbide abrasive cloth belt designed for aggressive metal surface sanding and final cosmetic polishing, including the production of a fine blue finish on stainless steel. Built on a heavy YF-weight cloth backing with closed coat construction, this belt delivers high grain density and consistent cutting action across the full contact area. Resin bonding resists heat-related breakdown, extending service life in high-cycle grinding and finishing operations. At 75 inches long and 37 inches wide, it fits wide-belt sanders used in industrial and fabrication environments.

This belt is suited for metal fabrication shops, stainless steel finishing lines, and surface conditioning applications where both aggressive stock removal and fine cosmetic results are required in the same operation. The flexible cloth backing allows the belt to conform to contoured or irregular workpiece profiles, maintaining consistent abrasive contact. Cork particles work alongside the silicon carbide mineral to refine the surface during the finishing pass. The waterproof polyester construction simplifies coolant use and debris removal during wet sanding processes.

Key Features

• Silicon carbide mineral and cork particles deliver aggressive cut combined with fine finishing action
• YF-weight cloth backing provides durability through demanding sanding and polishing cycles
• Closed coat construction maximizes grain density for consistent results on hard metal surfaces
• Resin bond system resists heat deterioration, extending belt service life
• Flexible backing conforms to contoured parts for uniform surface contact
• Waterproof polyester material supports wet sanding and easy debris removal

Compatibility

Designed for use on wide-belt sanders accepting a 75-inch by 37-inch abrasive belt, primarily in metal fabrication and stainless steel finishing applications.

Installation Notes

Belt installation and tensioning should be performed by qualified personnel following the sander manufacturer's guidelines. Power down and lock out the machine before mounting or removing the belt. Confirm belt tracking alignment before resuming operation to prevent edge wear or belt failure. Minimum order quantity for this SKU is 3 units.

Technical Specifications

• Abrasive Material: Silicon Carbide with Cork Particles
• Grit: 220
• Belt Length: 75 inches
• Belt Width: 37 inches
• Backing Type: YF-Weight Cloth
• Coat Type: Closed Coat
• Bond Type: Resin
• Color: Black
• Unit of Measure: Each
• Minimum Order Quantity: 3
• Weight: 8.34 pounds
• UPC: 00051125120463

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326292
