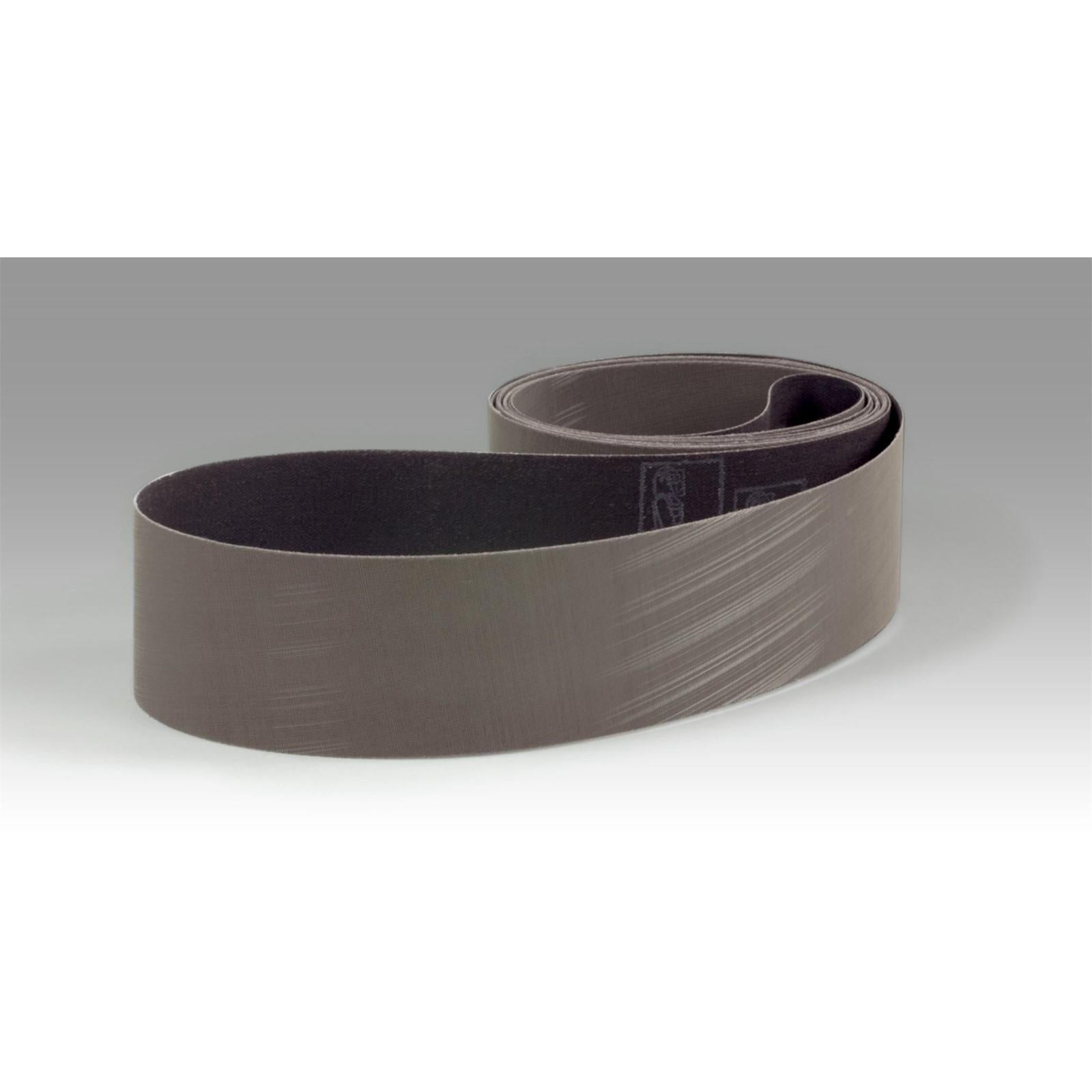

3M 7010326282 Abrasive Belt Ao 90x4 Inch Cloth Gray

Product Description

The 3M 7010326282 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in metalworking and fabrication applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the abrasive pyramids wear down, fresh mineral is continuously exposed, delivering a consistent cut rate and predictable surface finish throughout the belt's service life. At 90 inches long and 4 inches wide, it fits wide-contact and slack-belt finishing machines common in production environments.

This belt is suited for robotic and automated finishing lines as well as manual bench grinder setups requiring repeatable results. It performs well on ferrous and non-ferrous metals ahead of plating, buffing, or coating operations. The flexible cloth backing conforms to contours, making it effective on shaped or profiled workpieces. Metal fabricators, tool and die shops, and industrial finishing operations are the primary users of this belt.

Key Features

• Microreplication technology forms aluminum oxide into self-renewing abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure runs cooler than conventional coated abrasives, reducing heat-related workpiece damage
• X-weight cloth backing provides flexibility for contouring while maintaining durability under tension
• Three-dimensional abrasive design produces uniform finishes in robotic and automated applications throughout belt life
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt finishing and grinding machines that accept a 90-inch by 4-inch abrasive belt. Verify machine contact wheel and platen dimensions before installation to confirm proper fit.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Power down and lockout the machine before changing belts. Confirm belt tracking tension and direction-of-travel arrow alignment with machine rotation before restarting. Inspect the contact wheel and platen for wear or damage that could cause uneven belt loading or premature failure.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Construction: Microreplication (Trizact 237AA)
• Backing Material: X-Weight Cloth
• Color: Gray
• Belt Length: 90 inches
• Belt Width: 4 inches
• Weight: 0.55 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326282
