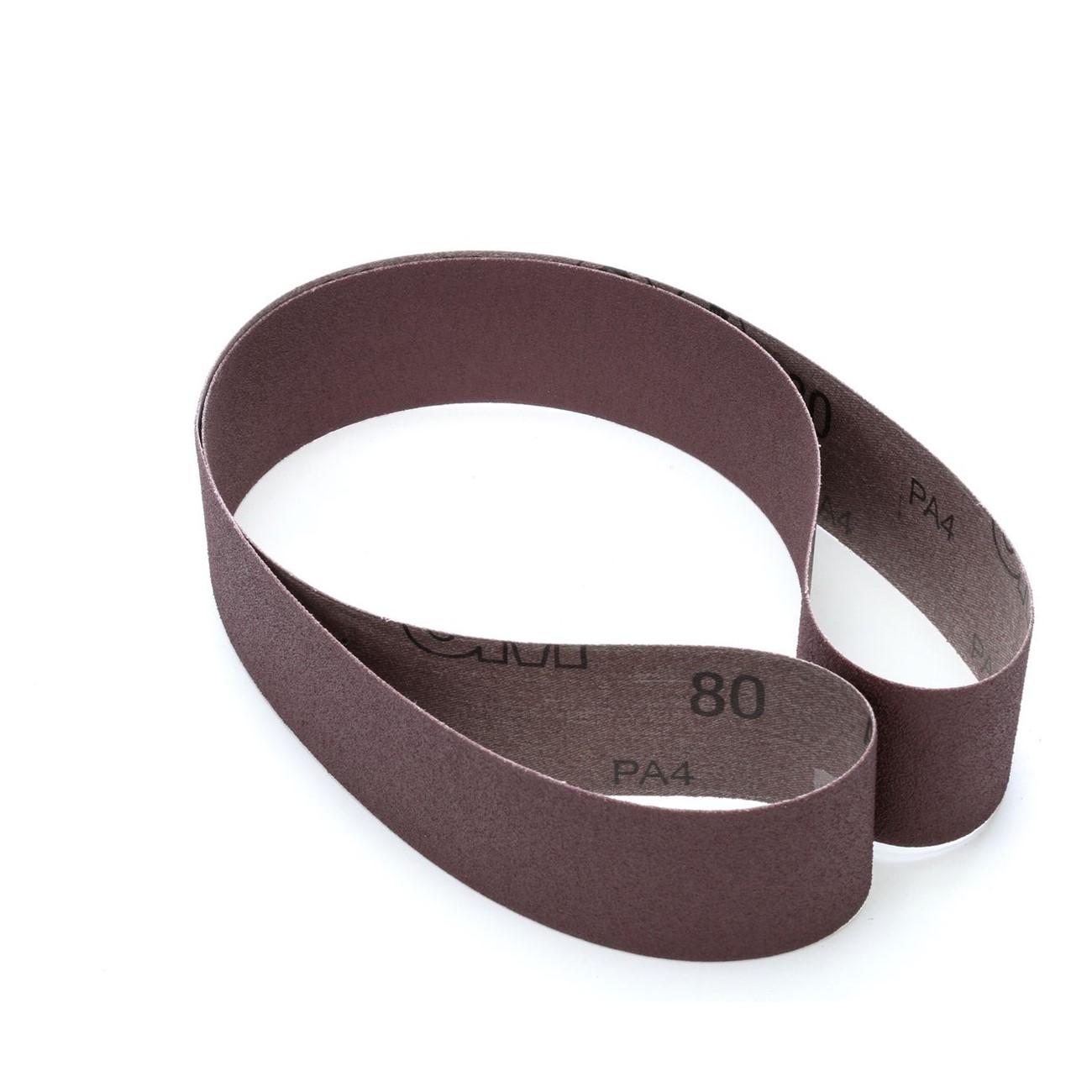

3M 7010326196 Cloth Sanding Belt 80 Grit 168x3 Inch

Product Description

The 3M 7010326196 is an aluminum oxide cloth abrasive belt designed for metal deburring, general metalworking, and woodworking applications. The 341D series belt measures 168 inches long and 3 inches wide, backed by X-weight cloth that handles heavy sanding and grinding loads. The resin bond system resists high heat and pressure, keeping the abrasive mineral in place during aggressive stock removal. At 80 grit, it cuts fast across a range of metal and wood substrates, making it a reliable choice for production sanding environments where consistent material removal is the priority.

This belt is suited for wide belt sanders, edge sanders, and portable belt sanding machines. It also fits onto a rubber expander wheel attachment for use with a die grinder or rotary drill, allowing the belt to conform to inner and outer contours for parting line removal and deburring. Typical applications include ferrous and non-ferrous metal finishing, surface conditioning, and general woodworking prep work in both shop and field settings.

Key Features

• Aluminum oxide mineral cuts fast and performs consistently across metal and wood substrates
• X-weight cloth backing handles heavy sanding and grinding without backing failure
• Resin bond resists high heat and pressure for extended belt life
• Tube-shaped band conforms to inner and outer contours for deburring and parting line removal
• Compatible with rubber expander wheel attachments for use with die grinders or rotary drills
• Suitable for wide belt, edge, and portable belt sanding configurations

Compatibility

Designed for use with wide belt sanders, edge sanders, portable belt sanders, and rubber expander wheel attachments mounted on die grinders or rotary drills where a 168-inch by 3-inch belt is specified.

Installation Notes

Belt installation should be performed by a qualified operator following the machine manufacturer's guidelines. Confirm the sander or expander wheel is powered off and locked out before mounting or removing the belt. Inspect the belt for tears or splice damage before use. Ensure belt tracking is properly adjusted before resuming operation to prevent edge wear or belt failure.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing: X-Weight Cloth
• Bond: Resin
• Grit: 80
• Belt Length: 168 inches
• Belt Width: 3 inches
• Weight: 0.89 pounds
• Unit of Measure: Each
• UPC: 00051119079906

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326196
