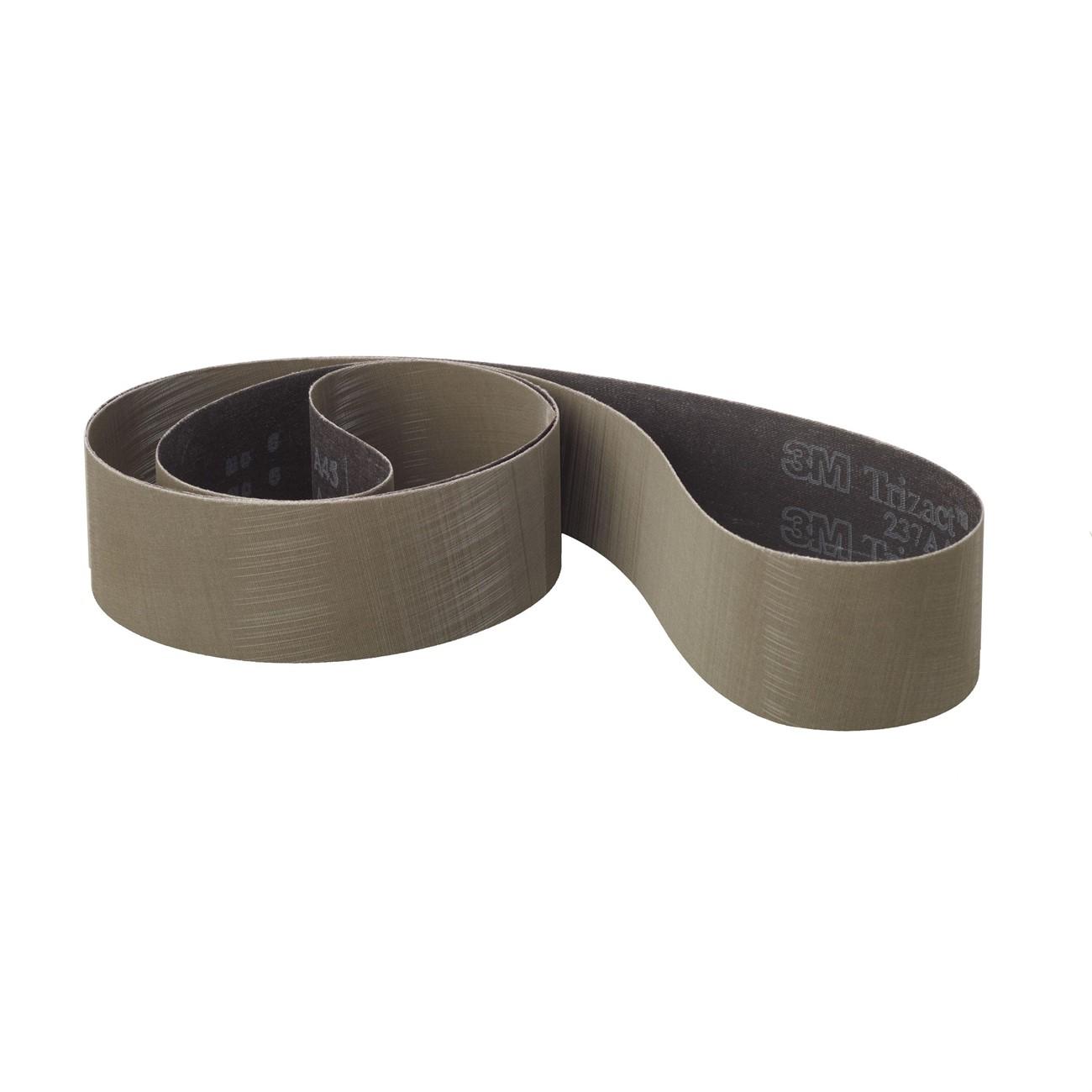

3M 7010326103 Abrasive Belt 60x3 Inch Aluminum Oxide

Product Description

The 3M 7010326103 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in demanding metalworking applications. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X weight cloth backing. As the abrasive pyramids wear down during use, fresh, sharp mineral is continuously exposed. This self-sharpening action delivers a consistent cut rate and a predictable surface finish throughout the life of the belt. The cloth backing provides flexibility for work on contoured surfaces. Licensed tradespeople and production finishing operators in metal fabrication environments are the primary installers and users of this belt.

This belt measures 60 inches in length and 3 inches in width, making it suited for wide-belt finishing machines and long-bed grinders used in metal fabrication shops. It is designed for intermediate and fine finishing passes on metal components prior to plating, buffing, or polishing. The three-dimensional abrasive structure makes it particularly effective in robotic and automated finishing lines where consistent, repeatable surface finishes are required across high production volumes.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut and finish
• Self-sharpening action runs cooler than conventional abrasives, reducing heat buildup on workpieces
• X weight cloth backing provides flexibility for contouring and consistent contact on irregular surfaces
• Three-dimensional abrasive design produces repeatable finishes in both manual and robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on wide-belt finishing machines and grinders that accept 60 inch by 3 inch abrasive belts in metalworking and production finishing applications.

Installation Notes

Installation of abrasive belts should be performed by qualified machine operators or maintenance personnel following the equipment manufacturer's guidelines. Power down and lock out the machine before changing belts. Verify belt tracking adjustment before resuming operation. Inspect the belt for damage before each use and replace if tears, delamination, or edge wear are present.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Abrasive Type: Trizact Microreplication
• Backing Material: X Weight Cloth
• Color: Gray
• Belt Length: 60 inches
• Belt Width: 3 inches
• Weight: 0.26 pounds
• Unit of Measure: Each
• UPC: 00051119830675

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326103
