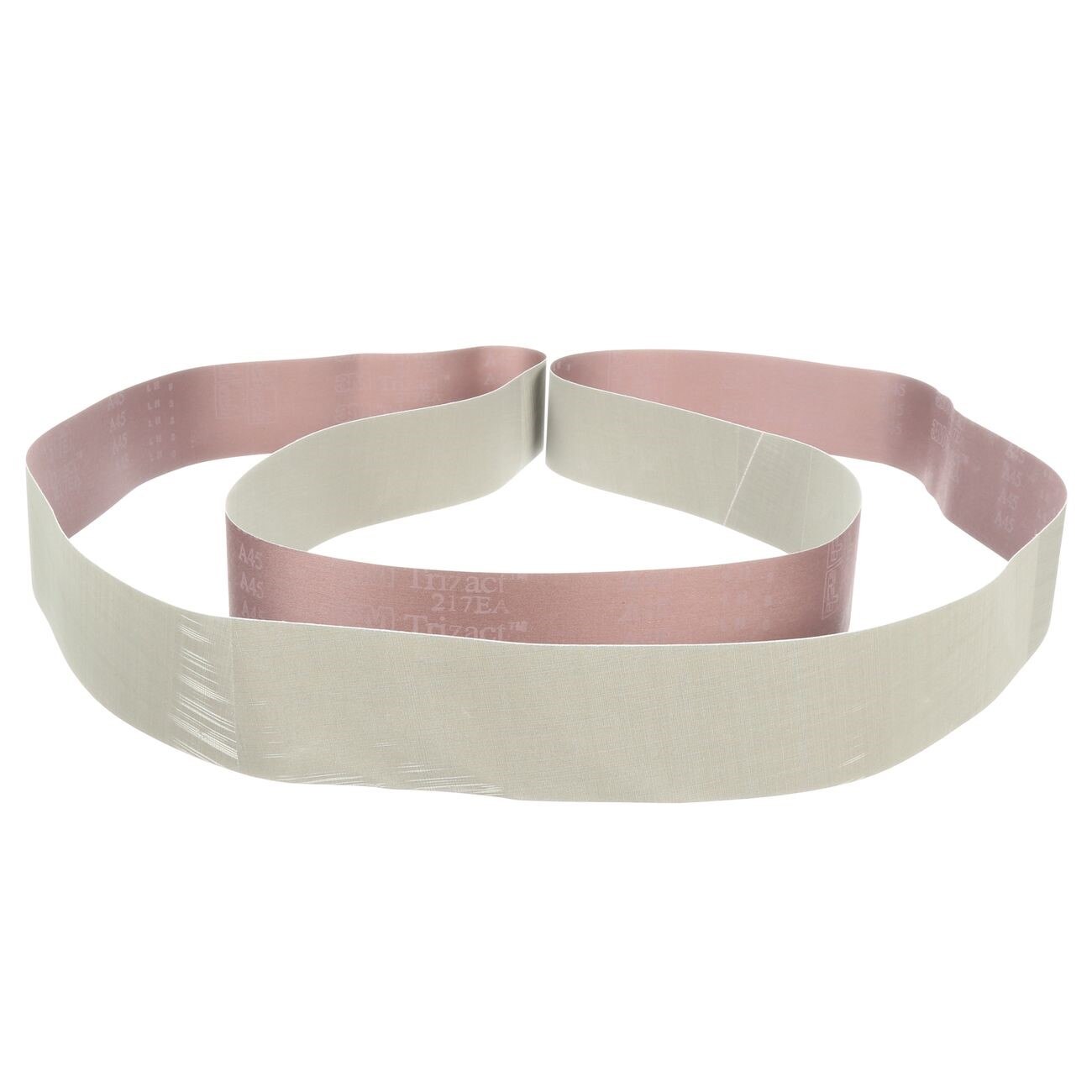

3M 7010326095 Trizact 217EA Abrasive Belt 48x2 Inch Ao

Product Description

The 3M 7010326095 is a Trizact 217EA coated abrasive belt designed for intermediate finishing and fine polishing operations in metalworking and surface preparation applications. It measures 48 inches in length and 2 inches in width. The belt uses 3M microreplicated pyramid technology, where micron-graded aluminum oxide particles are formed into uniform pyramidal structures bonded to a JE-weight rayon cloth backing. As the pyramids gradually wear, fresh cutting mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine surface finish throughout the belt's service life. Licensed tradespeople and finishing technicians in fabrication, metalworking, and light manufacturing environments install and use this belt.

This belt is intended for intermediate finishing and fine polishing prior to plating or buffing. It performs well in light-pressure applications where controlled, consistent surface finishing is required. The flexible JE-weight rayon cloth backing conforms to contoured and irregular surfaces, making it suitable for both flat stock and shaped workpieces. Its consistent performance and extended abrasive life also make it well suited to robotic and automated finishing systems where repeatable results are critical.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral as they wear for a consistent cut rate
• Flexible JE-weight rayon cloth backing conforms to contoured and curved surfaces
• Produces finer finishes than conventional coated abrasives of comparable grit
• Grinding aid incorporated into the coating helps prevent heat-related warping and discoloration of workpieces
• Consistent abrasive life supports use in robotic and automated finishing lines
• Suited for light-pressure applications requiring controlled breakdown and steady cut maintenance

Compatibility

Designed as a replacement-style abrasive belt for standard belt finishing machines and robotic grinding systems that accept 48-inch by 2-inch belts in metalworking, fabrication, and light manufacturing environments.

Installation Notes

Abrasive belts of this type are installed by metalworking technicians and finishing operators following equipment manufacturer guidelines for belt tensioning and tracking. Always power down and lock out the belt finishing machine before changing belts. Inspect the platen, contact wheel, and idler for wear or damage before mounting a new belt. Run the machine briefly at operating speed with guards in place before applying workpiece pressure to confirm proper belt tracking.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 2 inches
• Abrasive Mineral: Aluminum Oxide (microreplicated)
• Backing Material: JE-weight Rayon Cloth
• Backing Color: Tan
• Technology: Trizact microreplication
• Weight: 0.11 pounds
• UOM: Each
• UPC: 00051119798586

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326095
