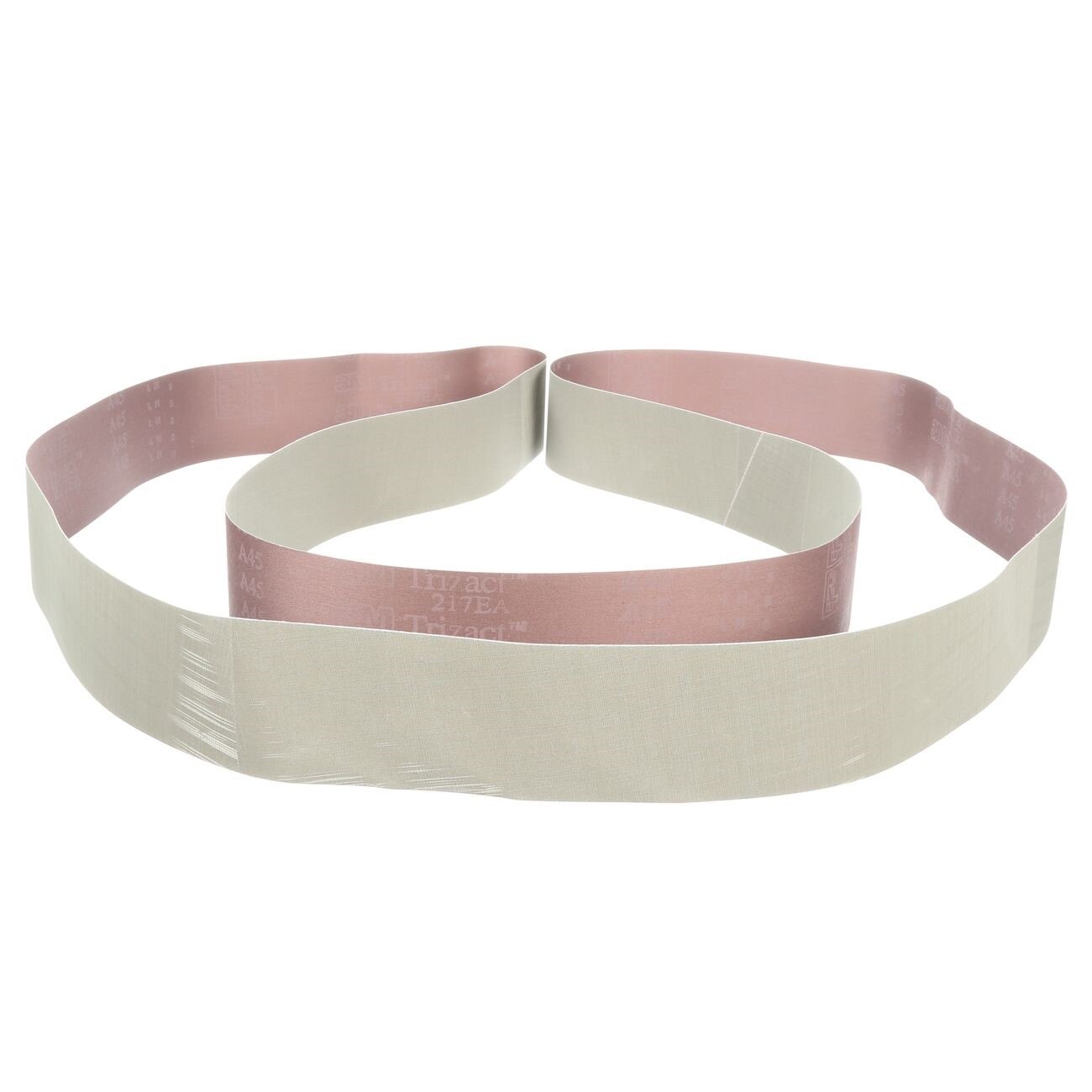

3M 7010326083 Trizact 217EA Abrasive Belt 15.5x3.5 in Ao

Product Description

The 3M 7010326083 is a Trizact 217EA coated abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It measures 15.5 inches long by 3.5 inches wide and is built on a JE-weight rayon backing. The belt uses 3M proprietary microreplication technology, forming micron-graded aluminum oxide particles into uniform pyramidal structures. As the pyramids wear, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish throughout the life of the belt. A grinding aid is incorporated to reduce heat buildup and minimize the risk of workpiece warping or discoloration.

This belt is suited for intermediate stock removal and fine polishing steps prior to plating or buffing operations. Its flexible backing allows it to conform to contoured and complex surfaces, making it appropriate for both manual and automated finishing lines. The consistent cut and long abrasive life make it a reliable choice for robotic and high-volume production applications where finish repeatability is critical. It performs best under light contact pressure, which allows the abrasive structure to break down progressively and maintain cut consistency across the belt's full service life.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral for consistent cut throughout belt life
• JE-weight rayon backing conforms to contoured and irregular surfaces
• Grinding aid reduces heat buildup to help prevent workpiece warping and discoloration
• Optimized for light pressure finishing prior to plating or buffing
• Consistent performance supports robotic and automated production line use
• Produces finer surface finishes than conventional coated abrasives of comparable grit

Compatibility

Designed for use on belt finishing machines accepting 15.5-inch by 3.5-inch abrasive belts; suitable for metalworking applications including stainless steel, aluminum, and other non-ferrous materials requiring fine surface finishing.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt finishing equipment. Power down and lock out the machine before loading or changing belts. Verify belt tracking and tension according to the equipment manufacturer's guidelines before resuming operation. Inspect the belt for damage or tears prior to each use and do not exceed the machine's rated contact speed.

Technical Specifications

• Belt Length: 15.5 inches
• Belt Width: 3.5 inches
• Abrasive Mineral: Aluminum Oxide
• Abrasive Technology: Trizact Microreplication
• Backing Material: JE-Weight Rayon
• Color: Tan
• Application: Intermediate Finishing and Fine Polishing
• Weight: 0.07 pounds
• UOM: Each
• UPC: 00051119733617

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326083
