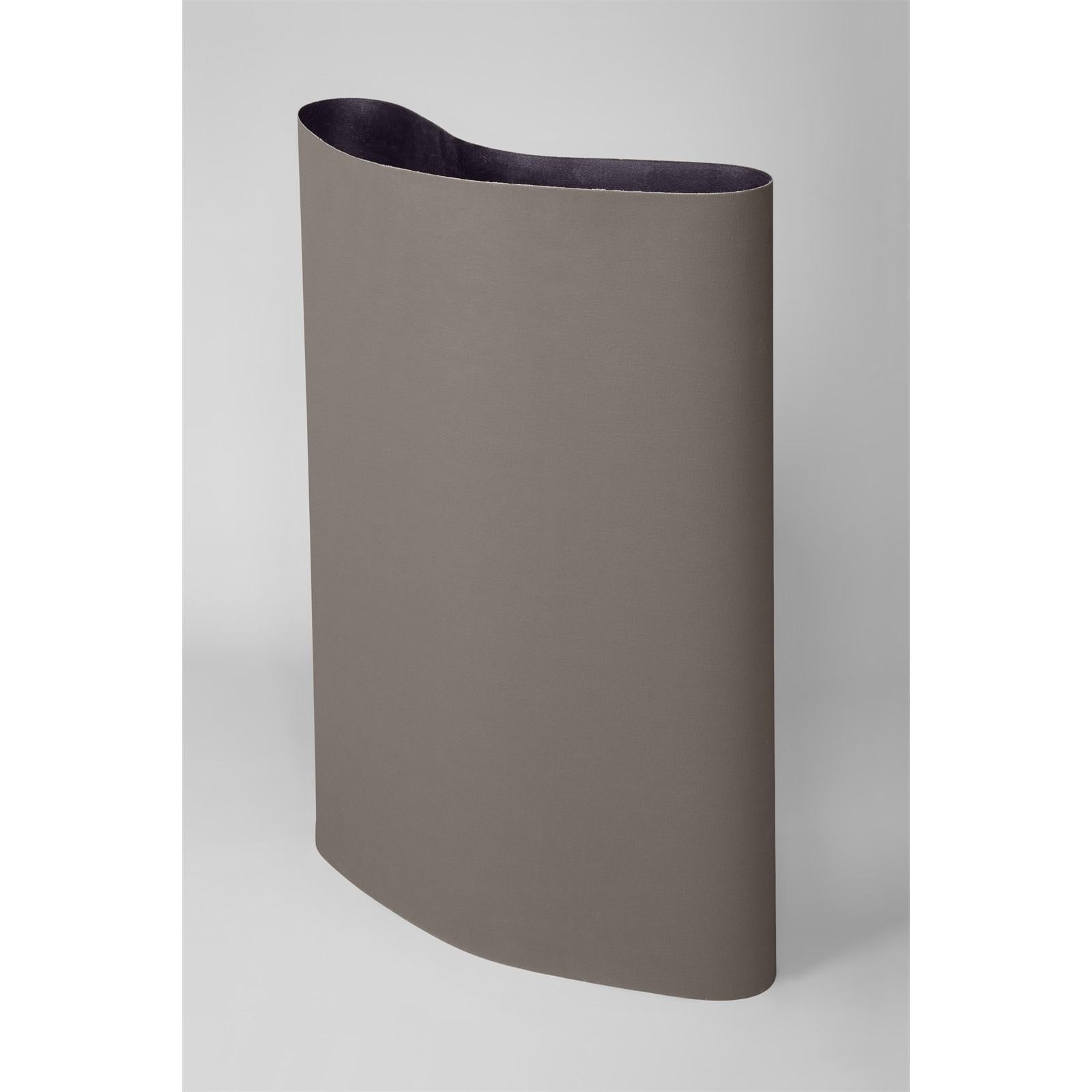

3M 7010326064 Trizact 237AA Abrasive Belt 48x25 Inch

Product Description

The 3M 7010326064 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing in industrial and manufacturing environments. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed, producing a consistent cut rate and a predictable fine finish. At 48 inches long and 25 inches wide, this belt is sized for wide-platen and robotic grinding applications. Fabricators and finishing technicians working with automated systems rely on this belt for repeatable surface results.

This belt is suited for intermediate finishing and fine polishing operations prior to plating or buffing. The flexible cloth backing conforms to contours, making it appropriate for shaped workpieces as well as flat stock. The three-dimensional abrasive structure is particularly effective in robotic and automated finishing lines where consistent finish quality across the full belt life is required. It performs well on metals and other hard materials where a fine, uniform surface profile must be achieved before downstream processes.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut throughout belt life
• Fresh mineral is continuously exposed as pyramids wear, maintaining cut rate and finish consistency
• Runs cooler than conventional abrasives, reducing heat-related workpiece damage
• Flexible X-weight cloth backing conforms to contoured and flat surfaces
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Engineered for robotic and automated finishing applications where repeatable results are critical

Compatibility

Designed for use on wide-platen belt grinding and polishing machines that accept 48-inch by 25-inch abrasive belts. Well-suited for metal finishing lines ahead of plating or buffing operations.

Installation Notes

Belt installation should be performed by qualified finishing or maintenance personnel with the machine de-energized and locked out per applicable safety procedures. Verify belt tracking and tension according to the machine manufacturer specifications before resuming operation. Inspect the belt for damage before each use and replace immediately if tears, delamination, or edge fraying are observed.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 25 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Grade: 237AA
• Color: Gray
• Weight: 2.79 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 00051115272592

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326064
