3M 7010326053 Abrasive Belt 264.75in X 6in Aluminum Oxide

Product Description

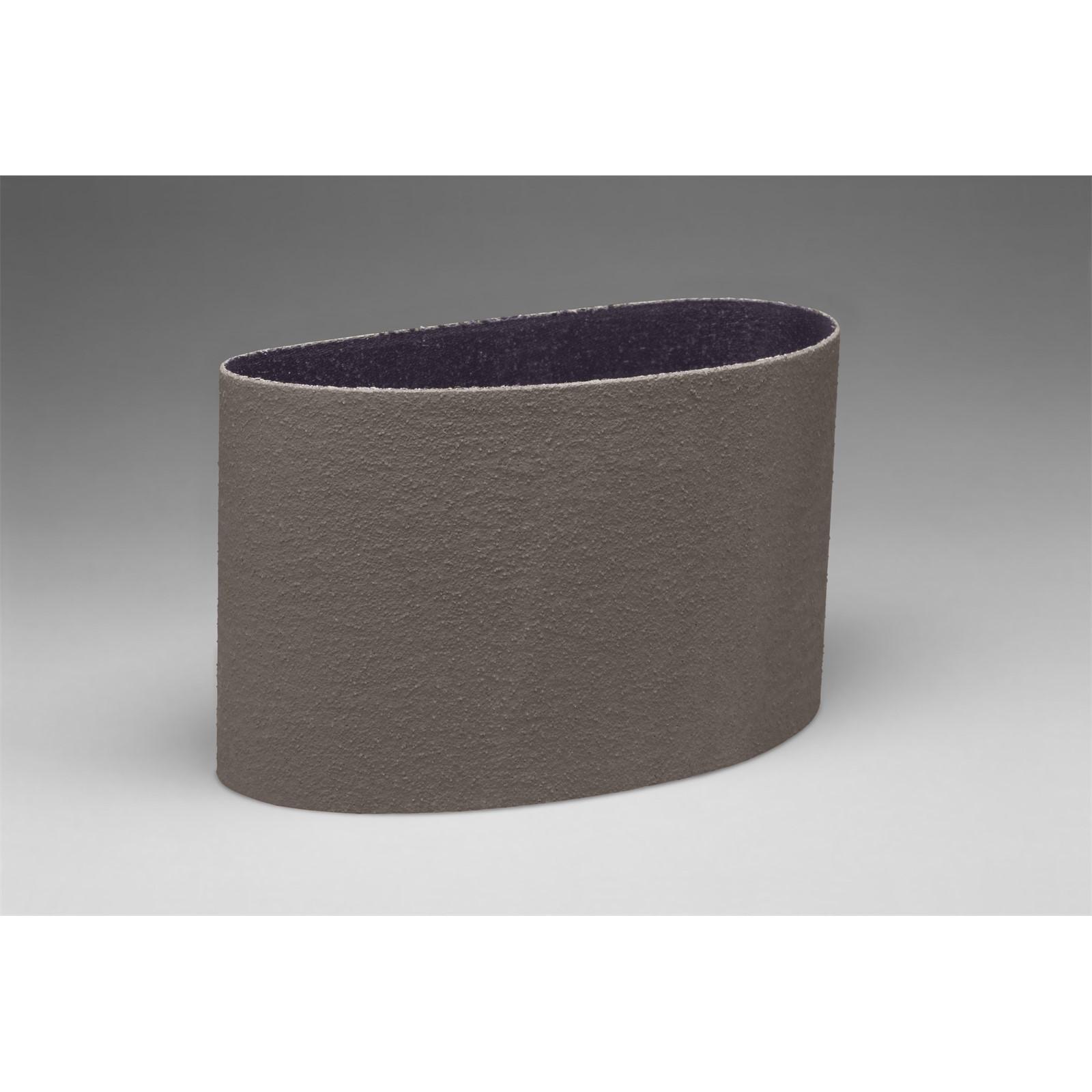

The 3M 7010326053 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh, sharp mineral is continuously exposed. This self-sharpening action delivers a consistent cut rate and a predictable fine finish throughout the life of the belt. At 264.75 inches long and 6 inches wide, this belt is sized for wide-platen and heavy-duty finishing equipment used in metalworking and fabrication environments.

This belt is intended for metalworking applications where a controlled, repeatable surface finish is required before plating, buffing, or final inspection. The flexible cloth backing conforms to contoured workpieces, making it well suited for both flat stock and irregular profiles. Its three-dimensional abrasive structure makes it a strong choice for robotic or automated finishing lines where consistency across the abrasive life is critical. Machinists, metal fabricators, and finishing technicians typically specify this belt for polishing stainless steel, aluminum, and other non-ferrous metals.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut and finish
• Fresh mineral exposure as pyramids wear extends usable belt life compared to conventional coated abrasives
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible X-weight cloth backing conforms to contoured surfaces for even finish coverage
• Produces finer finishes than electrostatically coated abrasive belts of comparable grit designation
• Optimized for robotic and automated finishing lines requiring predictable, repeatable results

Compatibility

Designed for use on wide-platen belt grinders and automated finishing equipment configured for belts measuring 264.75 inches in length and 6 inches in width.

Installation Notes

Belt installation and tensioning should be performed by a qualified machine operator or maintenance technician following the equipment manufacturer's specifications. Power down and lock out the finishing machine before mounting or removing the belt. Verify belt tracking alignment before resuming operation to prevent edge damage or premature wear. Inspect the platen and contact wheel for wear or damage that could affect finish consistency before installing a new belt.

Technical Specifications

• Belt Length: 264.75 inches
• Belt Width: 6 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Technology: Microreplication (Trizact)
• Color: Gray
• Weight: 2.52 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00051115270437

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010326053
