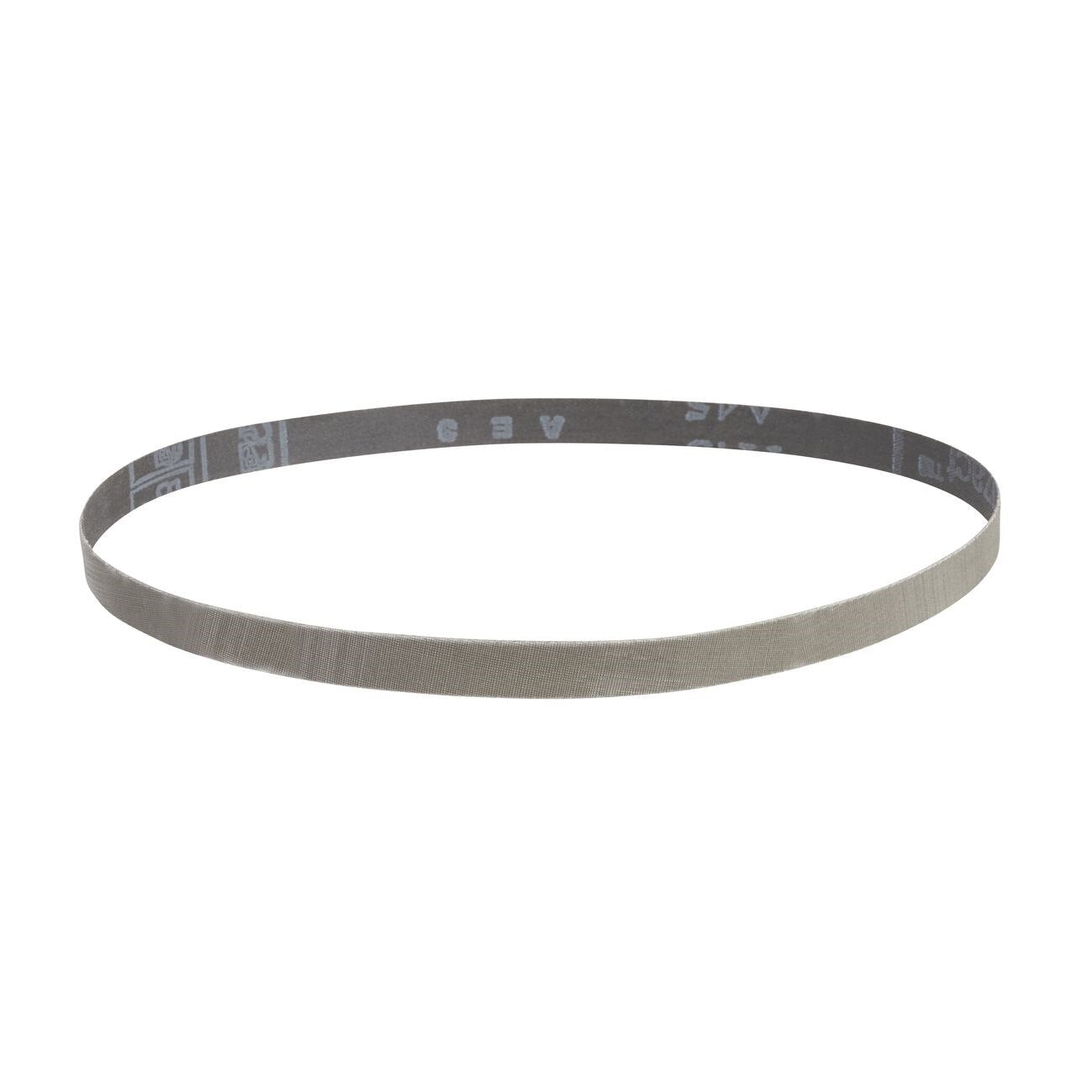

3M 7010325960 Abrasive Belt 9.5x1.5 Inch Ao Cloth Gray

Product Description

The 3M 7010325960 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications across metal fabrication and finishing trades. It uses 3M microreplication technology in which micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh, sharp cutting surfaces are continuously exposed, delivering a consistent cut rate and repeatable surface finish throughout the life of the belt. The belt measures 9.5 inches in length and 1.5 inches in width and is suited for both manual and robotic finishing operations.

This belt is used in metalworking environments where a fine, controlled surface finish is required before downstream processes such as plating or buffing. It performs well on contoured surfaces due to the flexible cloth backing, which conforms to workpiece geometry without compromising finish consistency. Typical applications include finishing stainless steel, aluminum, and other metals in fabrication shops, manufacturing lines, and precision surface preparation workflows. The gray color indicates the 237AA abrasive grade designation within the Trizact product line.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening abrasive pyramids
• Pyramids continuously expose fresh mineral as they wear, maintaining consistent cut and finish
• X-weight cloth backing provides flexibility for finishing over contoured surfaces
• Three-dimensional abrasive structure produces repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt finishing machines and grinders that accept 9.5 inch by 1.5 inch abrasive belts in metal fabrication and surface finishing applications.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt equipment. Ensure the machine is fully powered down and the drive belt is stationary before changing abrasive belts. Verify belt tracking and tension per equipment manufacturer guidelines before resuming operation. Inspect the belt and contact wheel or platen for wear or contamination prior to use.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: X-Weight Cloth
• Belt Length: 9.5 inches
• Belt Width: 1.5 inches
• Color: Gray
• Weight: 0.17 pounds
• Unit of Measure: Each
• UPC: 00051119103038

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010325960
