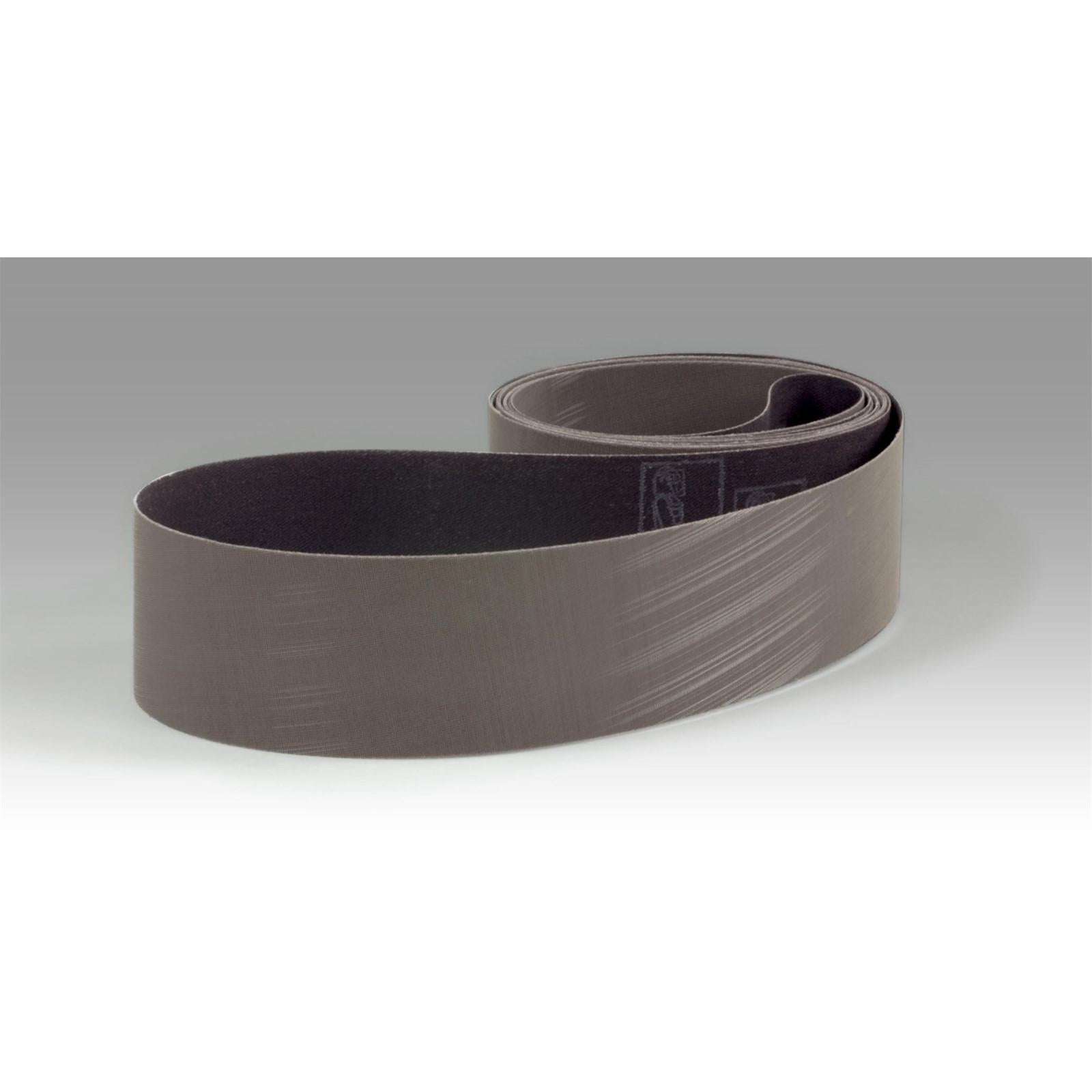

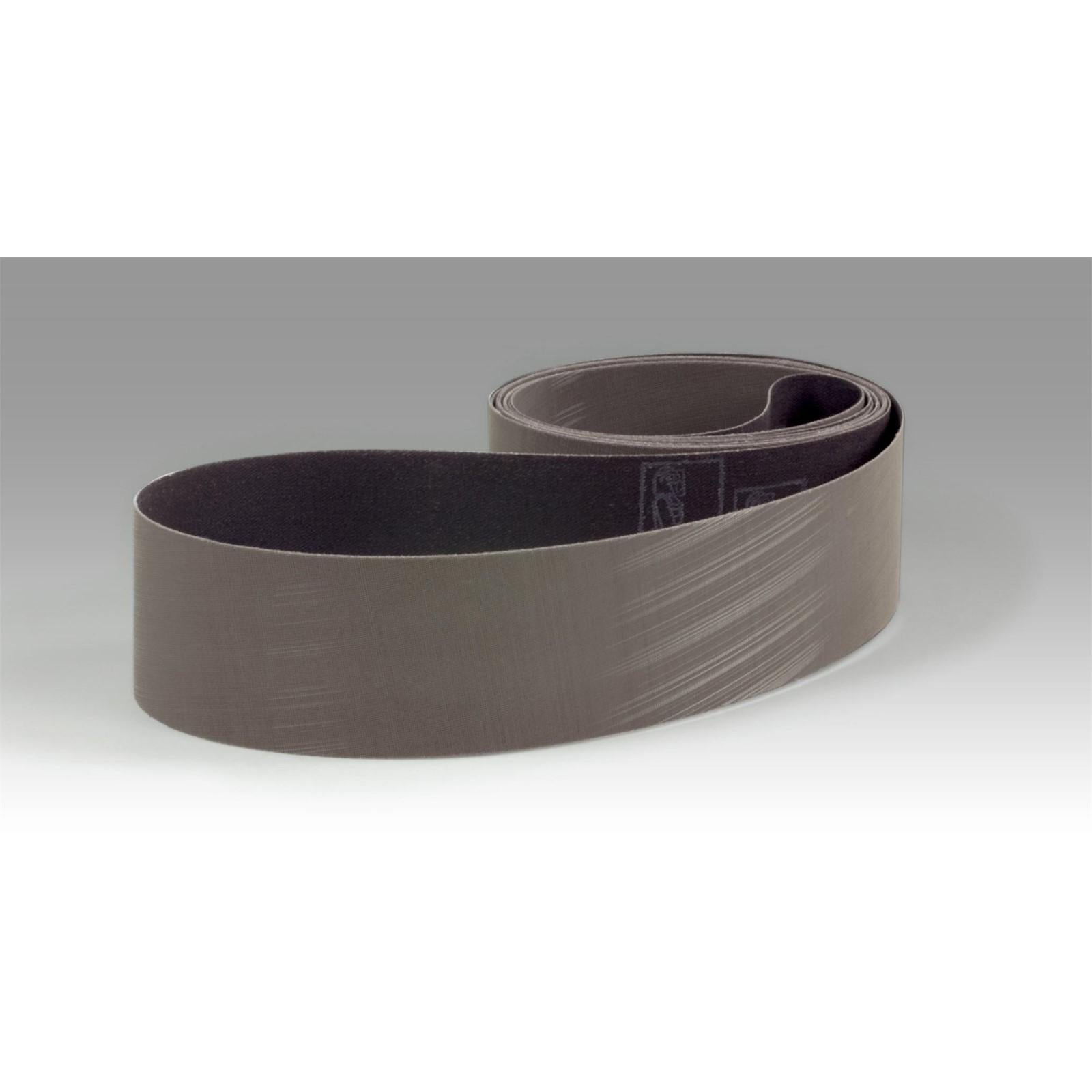

3M 7010325954 Abrasive Belt 168x4 Inch Ao Cloth Gray

Product Description

The 3M 7010325954 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in industrial grinding and surface preparation applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to an X weight cloth backing. As the pyramids wear during use, fresh, sharp abrasive mineral is continuously exposed, delivering a consistent cut rate and predictable finish quality throughout the life of the belt. The belt measures 168 inches in length and 4 inches in width and weighs approximately 0.79 pounds.

This belt is suited for use in automated and robotic finishing lines as well as manual belt grinding operations where repeatable, fine surface finishes are required. Typical applications include intermediate finishing and fine polishing steps performed prior to plating, buffing, or coating processes. The flexible cloth backing conforms to contoured workpiece surfaces, making it effective on both flat stock and irregular profiles. It is commonly used in metal fabrication, aerospace component finishing, and precision parts manufacturing environments.

Key Features

• Microreplication technology forms aluminum oxide particles into uniform abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure exposes fresh mineral as the belt wears, extending usable life
• Runs cooler than conventional abrasives, reducing heat-related workpiece damage
• X weight cloth backing provides flexibility for finishing over contours and irregular profiles
• Three-dimensional abrasive design delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinding and finishing machines that accept 168 inch by 4 inch abrasive belts. Confirm machine platen, contact wheel, and tracking specifications before installation.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt equipment. Power down and lock out the grinder or finishing machine before changing belts. Verify belt tracking and tension according to the machine manufacturer guidelines before resuming operation. Inspect the belt for tears or delamination before each use and replace immediately if damage is found.

Technical Specifications

• Belt Length: 168 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X Weight Cloth
• Color: Gray
• Weight: 0.79 pounds
• Unit of Measure: Each
• UPC: 00051119089080

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010325954
