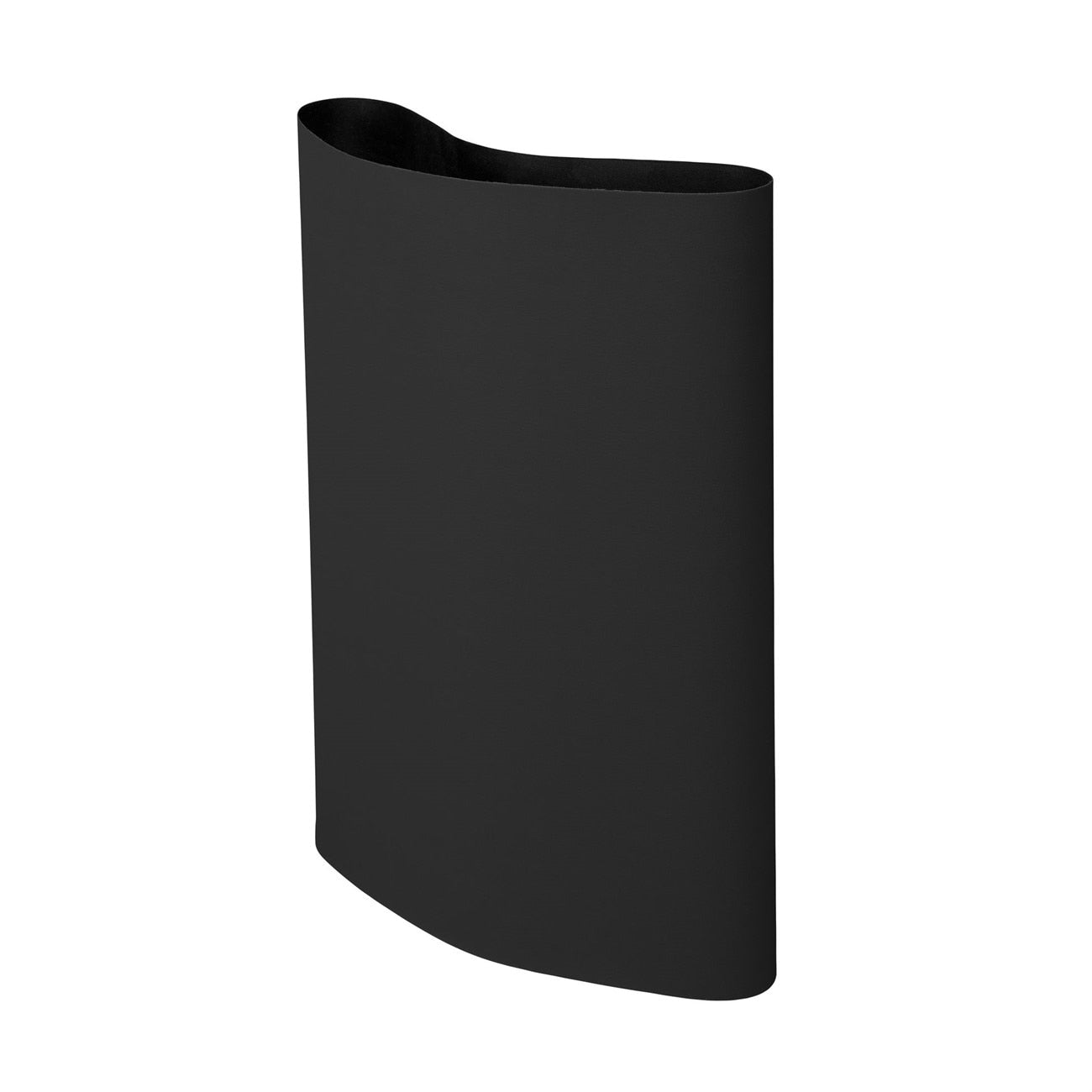

3M 7010325832 Abrasive Belt 165x65 Inch P220 Grit

Product Description

The 3M 7010325832 is a coated abrasive cloth belt engineered for grinding, blending, deburring, and finishing on metal surfaces. Built around sharp silicon carbide mineral, the belt fractures consistently during use to expose fresh cutting edges, maintaining a uniform finish throughout the belt's service life. A heat-resistant resin bond locks the abrasive to a tough, water-resistant polyester cloth backing, giving the belt the flexibility and structural integrity needed for both wet and dry applications. Licensed trade fabricators and metal finishing technicians install this belt on backstands for production grinding and fine finishing work.

This belt is suited for residential and commercial metal fabrication environments where consistent surface finish is critical. The P220 grit rating places it in the fine finishing range, making it appropriate for final-pass blending and deburring operations on ferrous and non-ferrous metals. The polyester cloth backing resists tearing and nicking under pressure, supporting continuous use in demanding backstand applications without premature failure.

Key Features

• Silicon carbide mineral fractures consistently, cutting faster than aluminum oxide and maintaining finish quality over belt life
• Water-resistant polyester cloth backing supports wet or dry use from heavy-duty grinding to fine finishing
• Heat-resistant resin bond anchors abrasive to backing for durability under pressure, heat, and moisture
• Cloth construction provides flexibility for conforming to workpiece profiles
• Designed for backstand grinding and finishing applications on all metals

Compatibility

Designed as an OEM-style replacement coated abrasive belt for backstand grinders and finishing machines accepting belts sized 165 inches in length by 65 inches in width.

Installation Notes

Installation is performed by qualified fabricators or maintenance technicians. Disconnect and lock out the backstand grinder from its power source before mounting or removing the belt. Verify the belt tracking and tensioning system is adjusted per the machine manufacturer's specifications before resuming operation. Inspect the belt splice orientation and ensure the arrow on the backing, if present, aligns with the direction of travel.

Technical Specifications

• Belt Length: 165 inches
• Belt Width: 65 inches
• Grit: P220
• Abrasive Mineral: Silicon Carbide
• Backing Type: Polyester Cloth
• Bond Type: Resin
• Color: Black
• Application: Wet or Dry
• Weight: 17 pounds
• UPC: 00051111674062

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010325832
