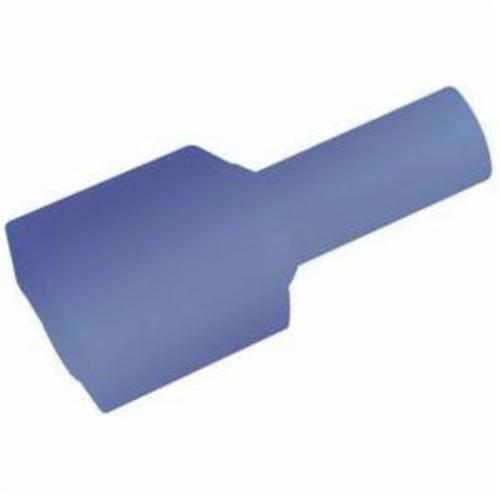

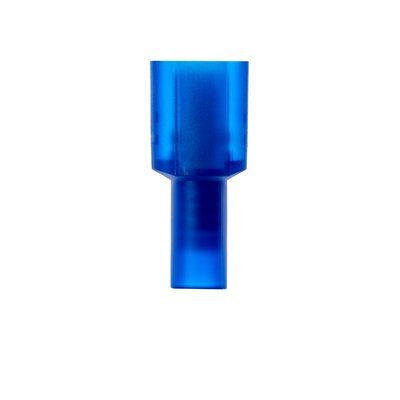

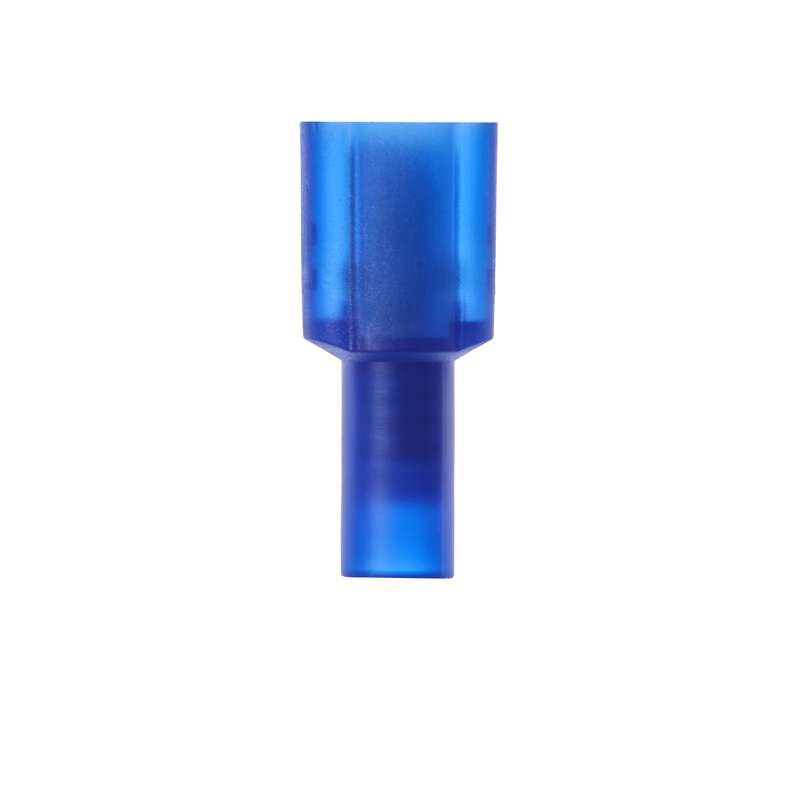

3M 7010321021 Male Disconnect 16 to 14 AWG Each

Product Description

The 3M 7010321021 is a male disconnect terminal designed for use with sixteen to fourteen AWG conductors. This terminal is fully insulated and features a butted barrel. It is made from electrolytic copper and nylon, providing good conductivity. This terminal is suitable for working with a voltage rating of six hundred VAC.

• Provides excellent holding force
• Allows for quick and easy wire disconnects
• Compatible with 0.187 inch wide female tabs

Product Highlights

This terminal is a crucial component for electrical wiring. Its design allows for reliable connections that can withstand a wide range of temperatures.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010321021

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Tab Size: 0.02 x 0.187 inches
• Barrel Type: Butted
• Material: Electrolytic Copper/Nylon
• Color: Blue
• Temperature Rating: -40 to 221 degrees F
• Length: 0.95 inches overall
• Finish: Tin Plated
