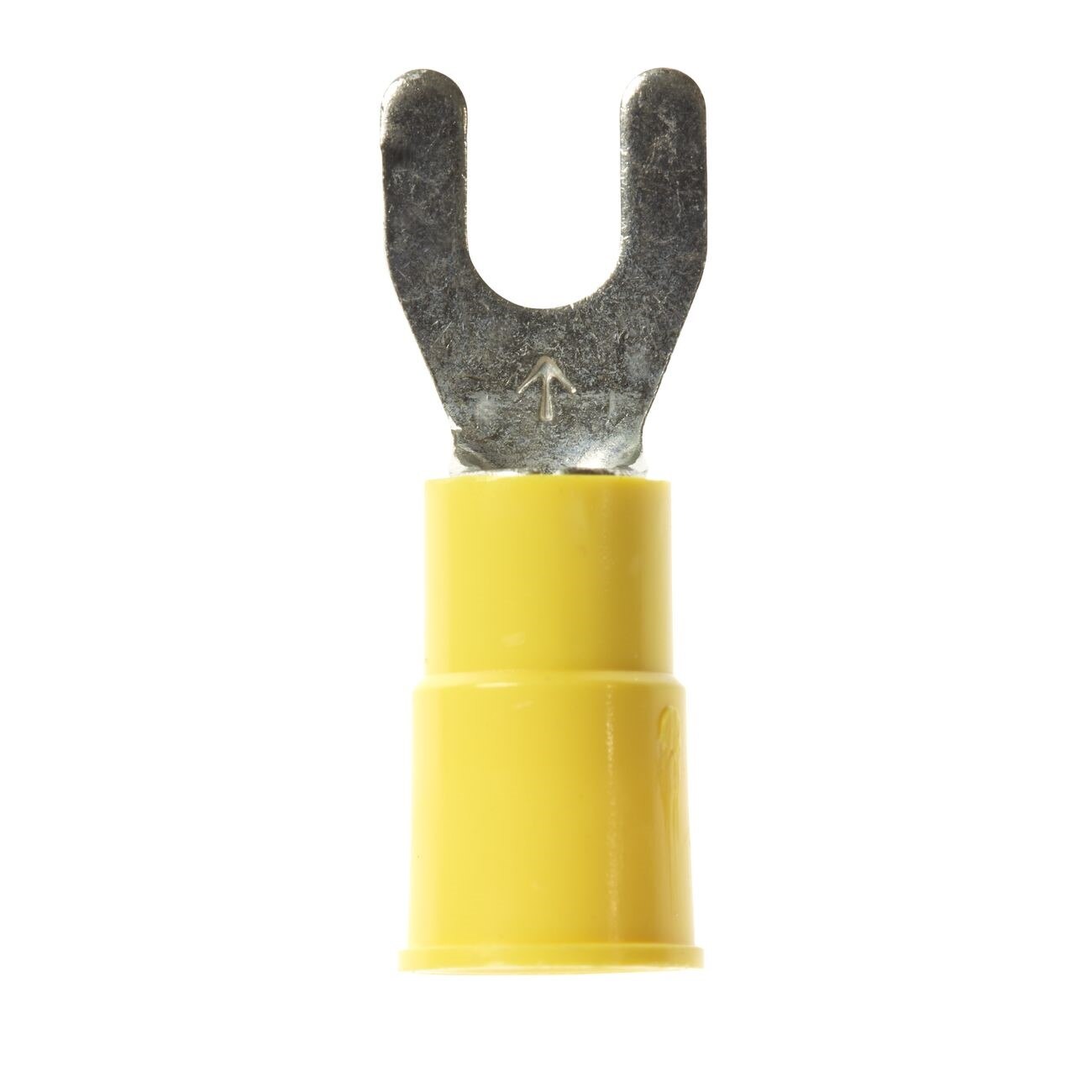

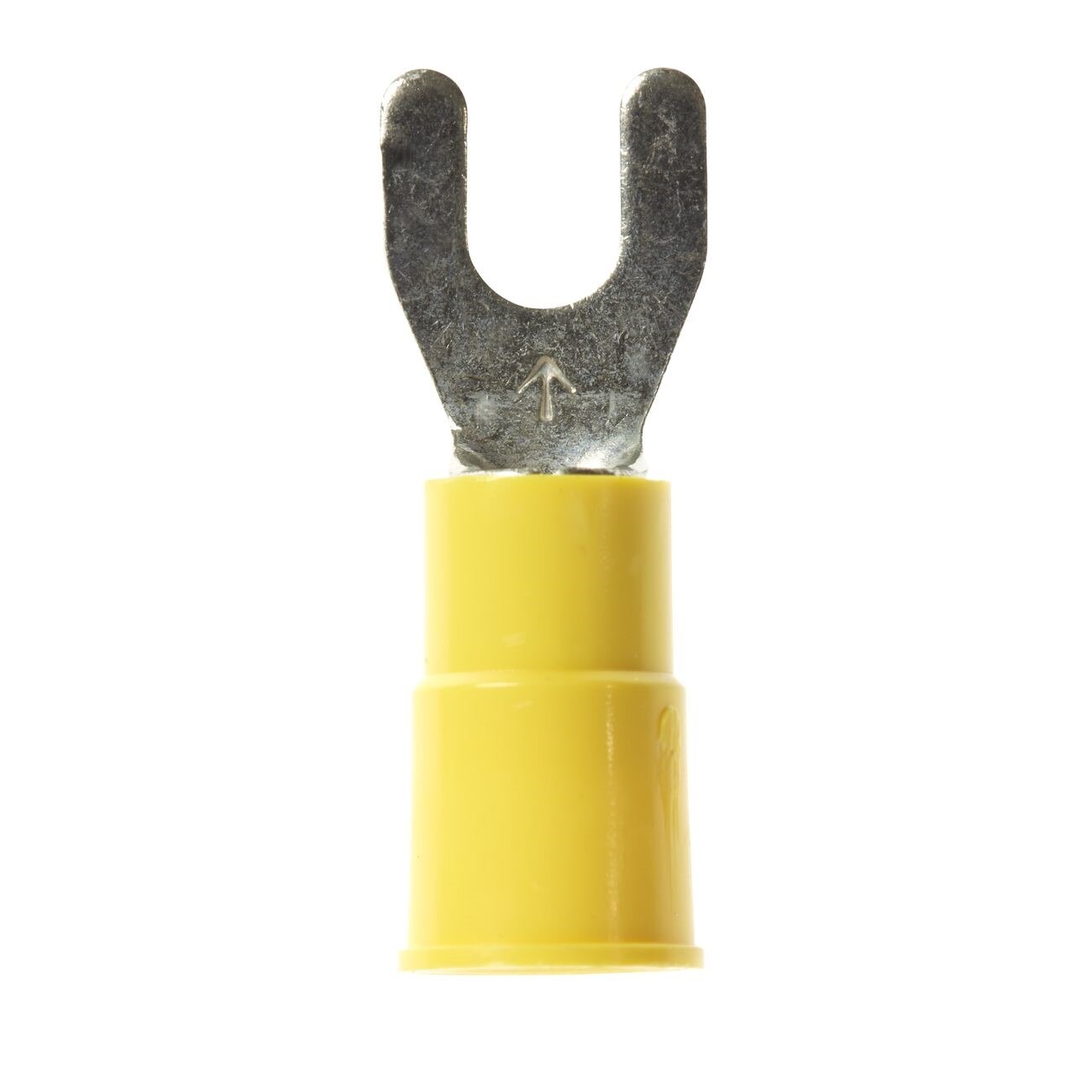

3M 7010320792 Vinyl Insulated Fork Terminal 50 Pack

Product Description

The 3M 7010320792 is a vinyl insulated fork terminal sold in bottles of 50, referenced under the 3M series designation MVU10-8FX. Fork terminals, also called spade terminals, create a secure mechanical and electrical connection at screw or stud termination points without requiring full removal of the fastener. The vinyl insulation sleeve provides basic protection against abrasion and incidental contact at the connection point. These terminals are sized and rated for use with standard wire gauges appropriate to the MVU10-8FX specification. Electricians, HVAC technicians, and panel wiring professionals use fork terminals routinely when terminating control wiring, low-voltage circuits, and equipment grounding conductors at bussed or screw-type terminal blocks.

Fork terminals in this family are used across residential and light commercial applications wherever a removable screw-lug connection is required. Common install scenarios include control panel wiring, motor control centers, HVAC equipment control boards, and field-wiring terminations inside disconnect boxes or junction enclosures. The 50-count bottle format suits service vans and shop stock. Each terminal is sold as an individual unit within the bottle quantity.

Key Features

• Vinyl insulated sleeve for abrasion resistance and basic electrical isolation at the termination point
• Fork or spade contact design allows connection and disconnection without fully removing the terminal screw
• Sold in 50-count bottles for convenient stocking and field use
• 3M MVU10-8FX series designation for cross-reference and procurement accuracy
• Lightweight construction at 0.01 pounds per unit

Compatibility

Designed as an OEM-style crimp fork terminal suitable for screw and stud termination points in residential and light commercial electrical and HVAC control wiring applications.

Installation Notes

Fork terminals are installed by licensed electricians or qualified HVAC technicians using a calibrated wire crimping tool appropriate for the terminal and wire gauge. De-energize and lock out the circuit before terminating any conductors. Connections must comply with applicable NEC requirements for conductor terminations, insulation ratings, and torque specifications listed on the equipment being terminated. Do not reuse a terminal that has been crimped; replace with a new terminal if the connection must be remade.

Technical Specifications

• Insulation Type: Vinyl
• Terminal Style: Fork (Spade)
• Series Designation: MVU10-8FX
• Quantity per Bottle: 50
• Weight: 0.01 pounds
• UPC: 10051128590314

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010320792
