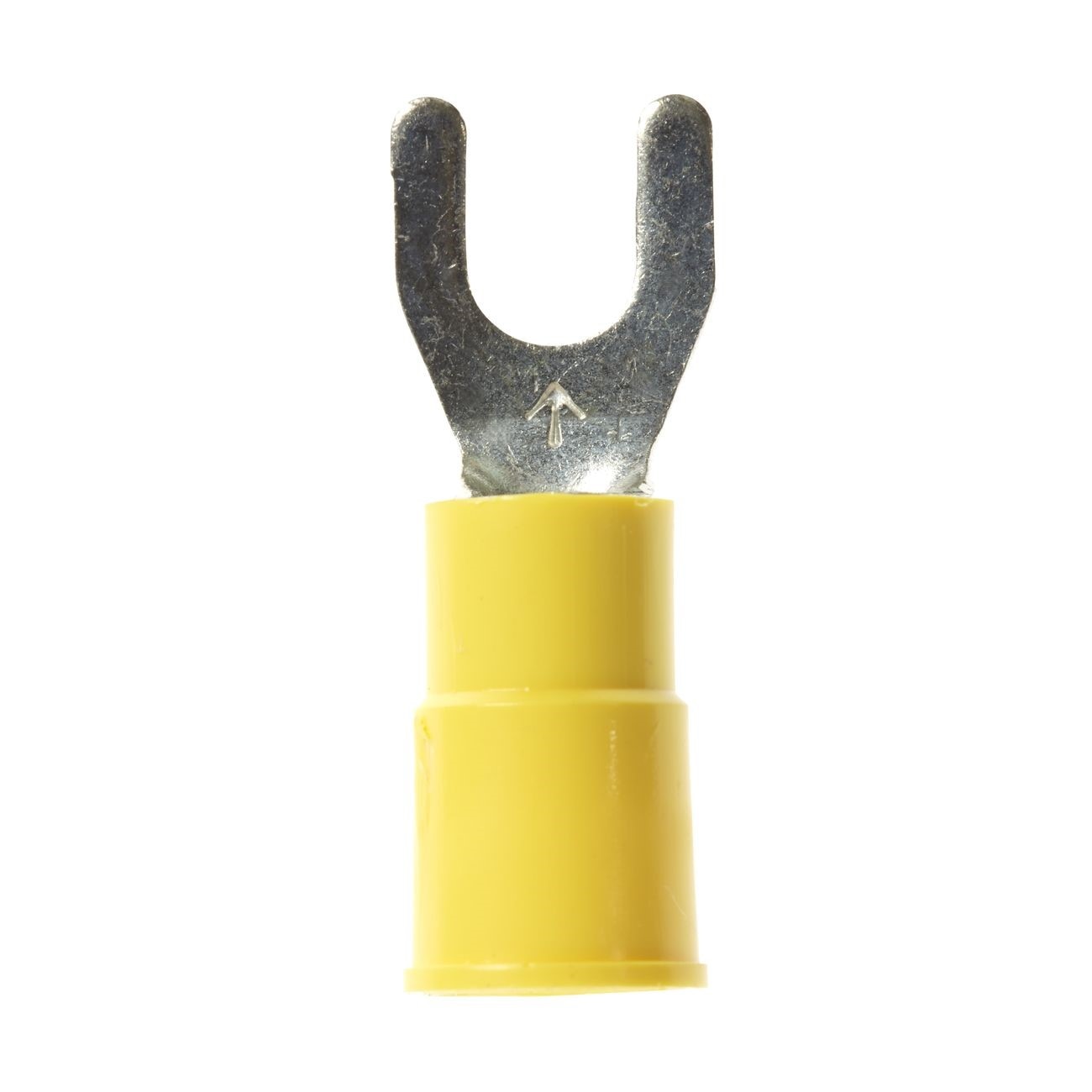

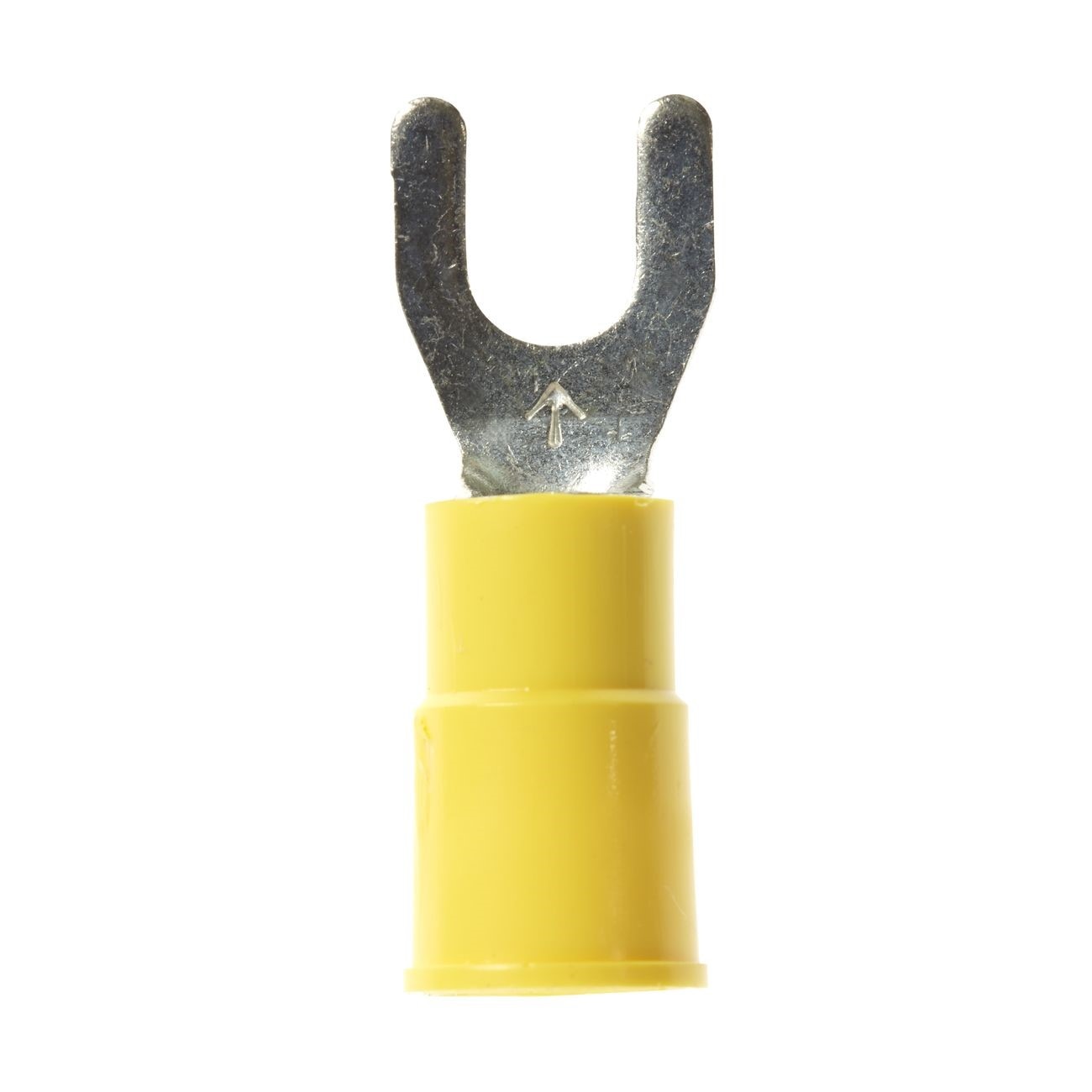

3M 7010320782 Vinyl Insulated Fork Terminal 50 Pack

Product Description

The 3M 7010320782 is a vinyl insulated fork terminal sold in bottles of 50, manufactured under the 3M MVU10-10FX product line. Fork terminals, also called spade terminals, provide a reliable mechanical and electrical connection point at screw or stud terminations without requiring full removal of the fastener. The vinyl insulation sleeve protects the crimp barrel and bare conductor from abrasion, moisture, and incidental contact. These terminals are crimped onto stripped wire ends using a ratcheting or manual crimp tool and are a standard consumable in panel wiring, control circuit assembly, and equipment termination work across electrical and HVAC trades.

Fork terminals of this type are used in residential and light commercial electrical work, control panel builds, motor terminations, and HVAC low-voltage wiring applications. They are appropriate wherever a screw-lug or stud connection is required and service access or reconnection is a regular expectation. The MVU10-10FX designation indicates the specific wire range and stud size compatibility. Licensed electricians, HVAC technicians, and panel builders are the primary installers of this connector type.

Key Features

• Vinyl insulation provides abrasion resistance and basic conductor protection at the termination point
• Fork or spade design allows connection and disconnection without fully removing the terminal screw or stud
• Sold in bottles of 50 for job-site and bench stock convenience
• MVU10-10FX designation specifies wire gauge and stud size for correct application matching
• Crimp-style installation for consistent, repeatable terminations

Compatibility

Designed for use with conductors and stud sizes matching the MVU10-10FX specification. Verify wire gauge range and stud size against the MVU10-10FX product parameters before installation.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians following applicable NEC requirements for termination methods and insulation ratings. De-energize all circuits before crimping or connecting terminals. Use a calibrated crimp tool rated for vinyl insulated terminals to achieve a proper mechanical and electrical crimp. Do not solder over a crimped vinyl insulated terminal, as heat can damage the insulation sleeve.

Technical Specifications

• Insulation Type: Vinyl
• Terminal Type: Fork (Spade)
• Quantity per Package: 50
• Weight: 0.01 pounds
• UPC: 10051128588847

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010320782
