3M 7010320185 FP-301VW Heat Shrink Tubing 1/4 in Black

Product Description

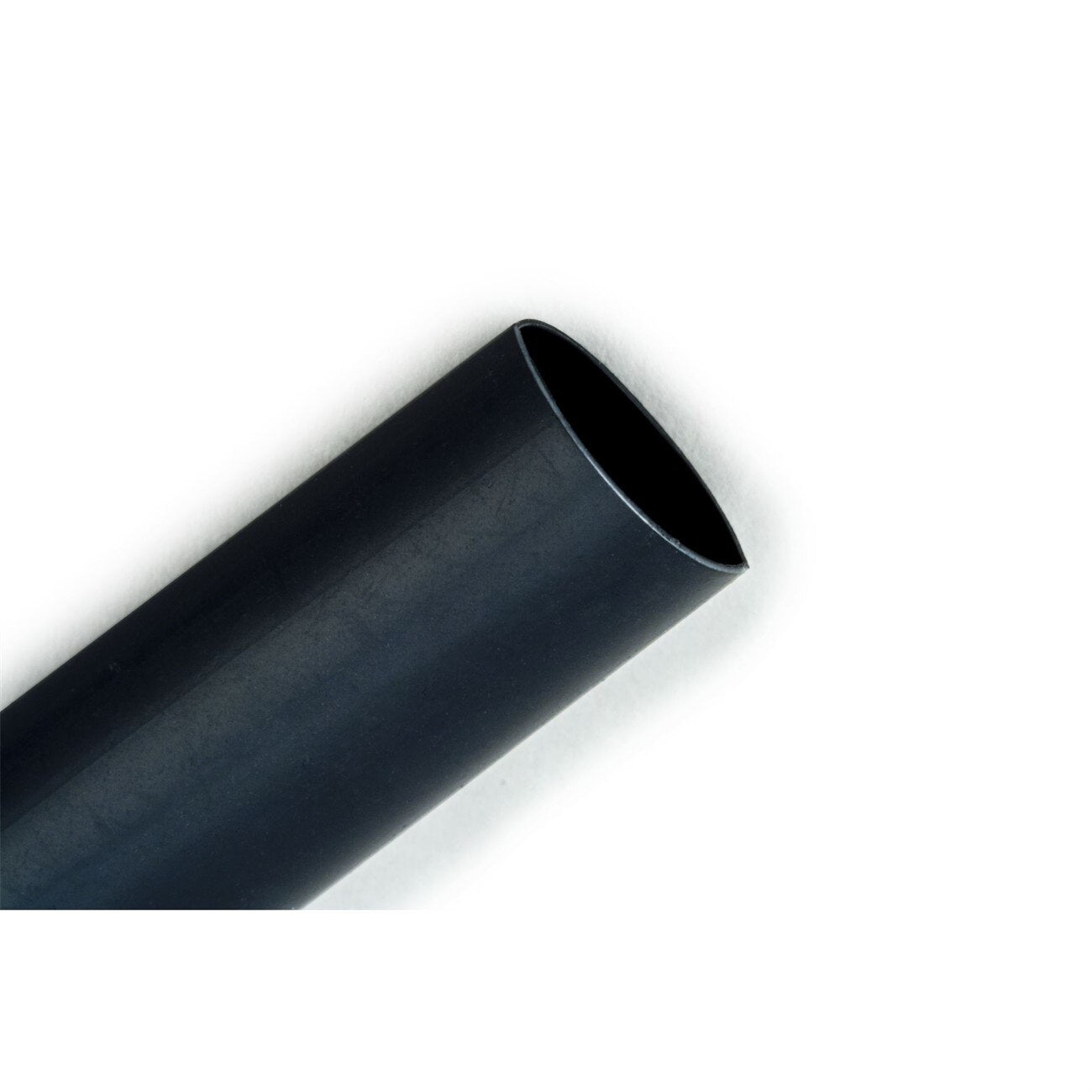

The 3M 7010320185 is a flame-resistant heat shrink tubing supplied on a 200-foot spool, designated FP-301VW in the 3M tubing lineup. It delivers the same balance of electrical insulation, physical durability, and chemical resistance found in standard FP-301 tubing, with added engineering for superior flame resistance. Rated for continuous operation from -55 degrees F to 275 degrees F, it also withstands short-term elevated temperatures up to 572 degrees F. The minimum shrink temperature is 212 degrees F. At 1/4 inch diameter, this tubing is well suited for wire bundling, connector sealing, and insulation tasks handled by licensed electricians and experienced electrical technicians.

FP-301VW tubing is used in industrial, commercial, and electrical panel applications where flame resistance is a code or safety requirement. The spool format makes it practical for shop use, field service vehicles, and production environments where a continuous length is needed. It is appropriate for insulating conductors, protecting wire harnesses, and covering solder joints or terminals in environments subject to heat exposure or stringent flammability standards.

Key Features

• Flame-resistant construction engineered for superior performance compared to standard FP-301 tubing
• Continuous operating range from -55 degrees F to 275 degrees F
• Withstands brief elevated temperatures up to 572 degrees F
• Minimum shrink temperature of 212 degrees F for reliable, controlled installation
• 1/4 inch diameter supplied on a 200-foot spool for high-volume or ongoing service use
• Balanced electrical, physical, and chemical resistance properties

Compatibility

Designed as an OEM-style heat shrink solution for electrical insulation, wire protection, and connector sealing applications requiring flame-resistant tubing at 1/4 inch inner diameter.

Installation Notes

Installation is typically performed by licensed electricians or qualified electrical technicians. Power down and de-energize all conductors before applying heat shrink tubing to any circuit. Use a calibrated heat gun to apply even heat at or above the 212 degrees F minimum shrink temperature, working along the length of the tubing to avoid uneven shrinkage or air pockets. Follow applicable NEC requirements for insulation and conductor protection in the specific installation environment.

Technical Specifications

• Diameter: 1/4 inch
• Length: 200 feet per spool
• Color: Black
• Continuous Operating Temperature: -55 degrees F to 275 degrees F
• Short-Term Maximum Temperature: 572 degrees F
• Minimum Shrink Temperature: 212 degrees F
• Weight: 0.01 pounds
• UPC: 10054007412288

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010320185
