3M 7010319494 Ring Terminal 6 Awg 1/4 Inch Stud Crimp 25 Pack

Product Description

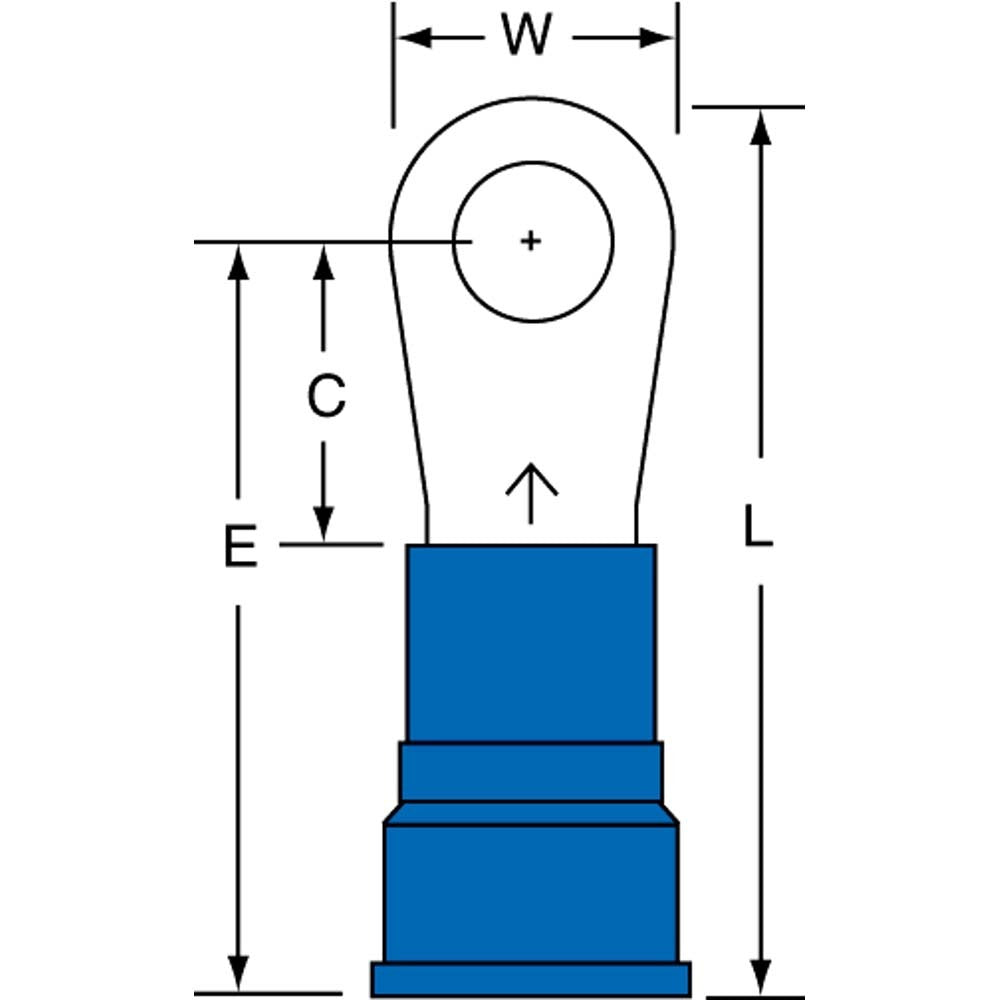

The 3M 7010319494 is a partially insulated circular ring terminal designed for crimp-style wire terminations in electrical wiring applications. The terminal uses a copper contact and a nylon insulation sleeve, accommodating 6 AWG conductors with a 1/4-inch stud hole. It is sold in packages of 25. Electricians and wire harness technicians install this type of terminal to create reliable, vibration-resistant ring connections on studs, bolts, or binding posts in control panels, motor wiring, and distribution equipment.

This ring terminal is suited for residential and commercial electrical installations, as well as light industrial control wiring. The partially insulated nylon sleeve protects the barrel crimp area while leaving the ring tongue exposed for direct contact with the stud or lug. Common applications include grounding connections, motor terminal blocks, and panel wiring where a secure mechanical and electrical bond at a 1/4-inch fastener is required. The blue color coding corresponds to the 6 AWG wire range for quick identification during installation.

Key Features

• Partially insulated nylon sleeve protects the crimp barrel without covering the ring tongue
• Copper contact material provides low-resistance electrical conductivity
• Crimp connection type for fast, consistent terminations without soldering
• 1/4-inch stud size fits standard bolts and binding posts
• Blue color coding identifies 6 AWG wire range at a glance
• Meets UL, CSA, and RoHS compliance standards for broad application use

Compatibility

Designed for use with 6 AWG copper conductors and 1/4-inch studs or fasteners in standard crimp terminal applications.

Installation Notes

Install using a ratcheting crimp tool rated for insulated ring terminals at the 6 AWG wire gauge. De-energize all circuits before terminating wires and verify the conductor is fully seated in the barrel before crimping. Follow applicable NEC requirements for terminal selection and wire sizing. Do not re-crimp a terminal that has already been compressed, as this can damage the barrel and reduce connection integrity.
