3M 7010319490 Ring Terminal 16-14 Awg Crimp No.10 Stud 100pk

Product Description

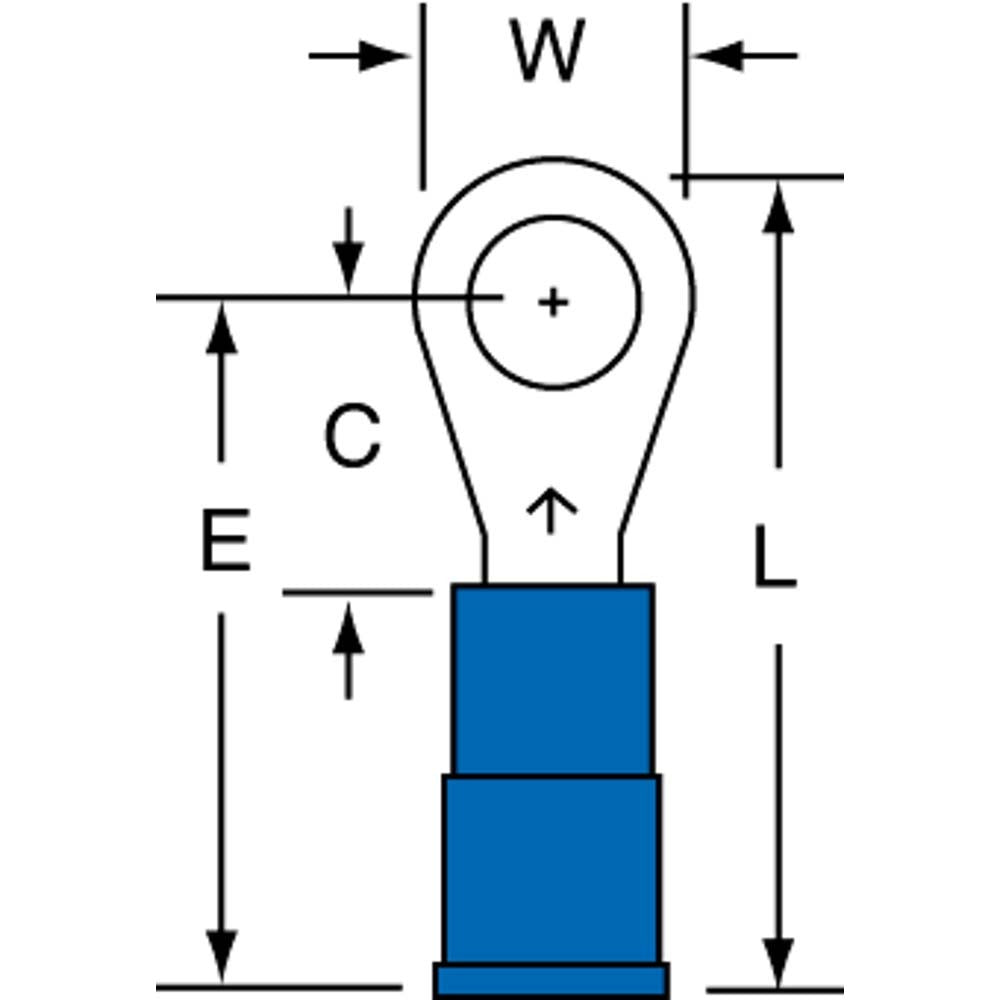

The 3M 7010319490 is a partially insulated circular ring terminal designed for crimp connections on copper conductors ranging from 16 to 14 AWG. The terminal body is copper with a blue nylon insulation sleeve, indicating its wire-range compatibility at a glance. It accepts a No. 10 stud, making it a standard choice for panel connections, equipment grounding, and control wiring terminations across HVAC, electrical, and light industrial applications. Licensed electricians and HVAC controls technicians install this terminal using a ratcheting or standard crimp tool suited for insulated terminals. Each order unit ships in a 100-piece package quantity.

This ring terminal is suited for residential and light commercial electrical work where a secure, vibration-resistant wire-to-stud connection is required. Typical applications include control panel wiring, motor lead terminations, grounding conductors, and low-voltage circuit connections. The partially insulated design protects the barrel entry point while leaving the ring exposed for bolt-down contact. It is appropriate wherever 16 to 14 AWG stranded or solid copper conductors terminate to a No. 10 screw or stud.

Key Features

• Partially insulated with blue nylon sleeve — identifies 16 to 14 AWG wire range at a glance
• Copper contact material for reliable conductivity and corrosion resistance
• Crimp connection type — compatible with standard insulated-terminal crimp tools
• No. 10 stud size fits common panel, equipment, and grounding hardware
• UL Listed and CSA Certified — meets NEC installation requirements
• RoHS 2011/65/EU Compliant — suitable for use in RoHS-restricted installations
• 100-piece package quantity for job-site or shop stocking

Compatibility

Designed for use with 16 to 14 AWG copper conductors terminating to No. 10 studs or screws. Compatible with standard ratcheting crimp tools sized for insulated ring terminals in this AWG range.

Installation Notes

De-energize all circuits before terminating or disturbing any wiring. Strip the conductor to the recommended length for the terminal barrel and insert fully before crimping. Use a ratcheting crimp tool rated for insulated terminals to ensure a complete, gas-tight crimp — do not use pliers or non-ratcheting tools. Installation should comply with applicable NEC articles governing conductor terminations and equipment grounding.
