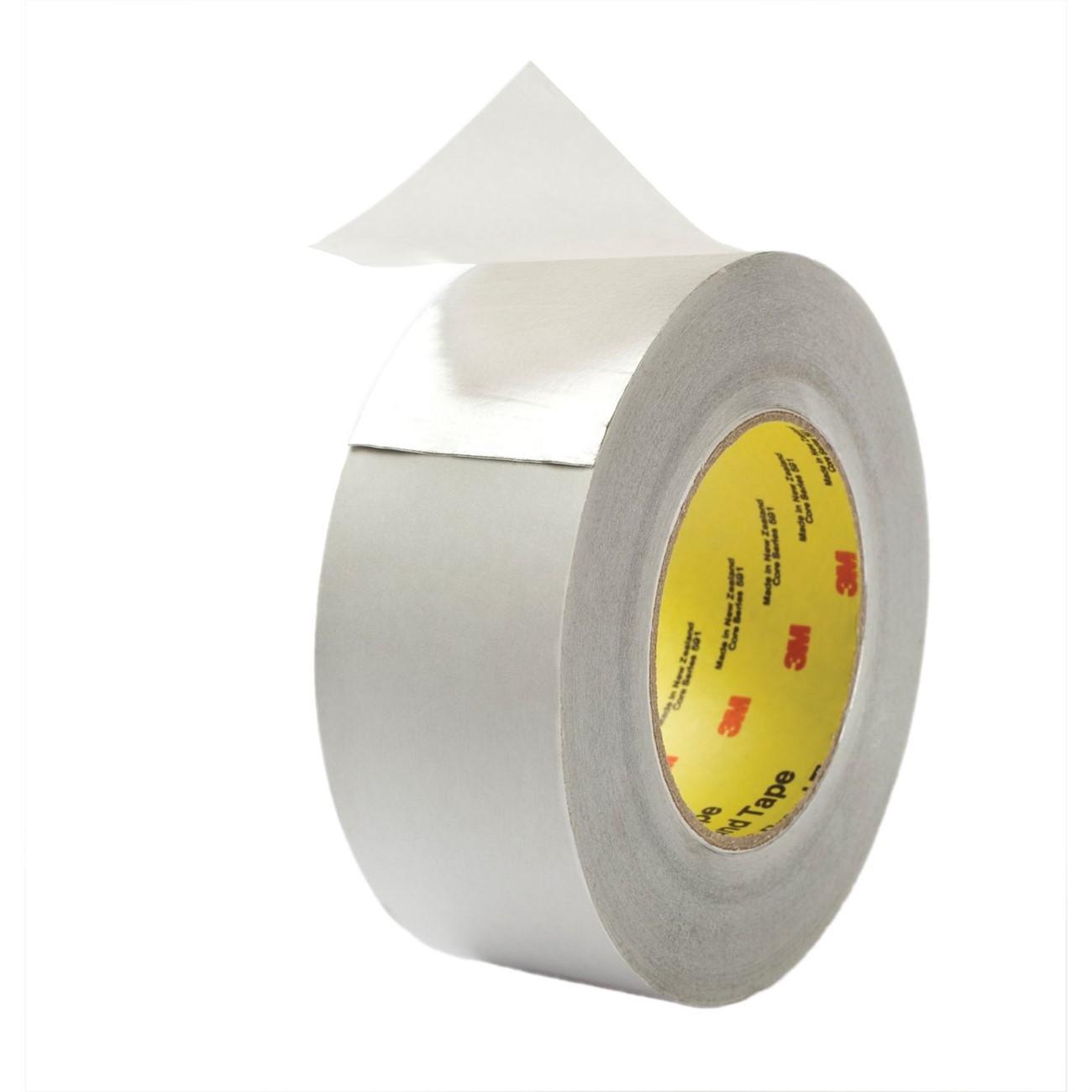

3M 7010314257 Aluminum Foil Tape 2 Inch 60 Yard Roll

Product Description

The 3M 7010314257 is a dead-soft aluminum foil tape with a pressure-sensitive acrylic adhesive, designed for demanding heat shielding, seaming, sealing, and chemical masking applications across HVAC, industrial, and manufacturing environments. The tape measures 2 inches wide and runs 60 yards per roll. Its thermally conductive construction helps dissipate heat and improves heating and cooling efficiency around temperature-sensitive materials. The acrylic adhesive bonds securely for long-term service but releases cleanly after harsh masking operations. HVAC technicians, sheet metal workers, and industrial maintenance professionals are the primary installers of this product.

This tape is suited for residential and commercial HVAC duct sealing, heat shield fabrication, light enhancement panels, chemical milling operations, and de-paint masking on metal surfaces. The dead-soft aluminum foil backing conforms readily to curved, irregular, and uneven surfaces, making it practical for field installation on ductwork joints, transitions, and wrap applications where rigid materials would not conform. It is also used in manufacturing and aerospace environments for chemical masking and surface protection during processing operations.

Key Features

• Dead-soft aluminum foil backing conforms to curved and uneven surfaces
• Thermally conductive tape dissipates heat and improves heating and cooling efficiency
• Pressure-sensitive acrylic adhesive provides long-term durability and clean removal after masking
• Resistant to chemicals, flame, weathering, moisture, and UV exposure
• Heat and light reflective surface protects temperature-sensitive materials and enhances lighting efficiency
• Linered version of the 3M 425 aluminum foil tape for easier handling and application

Compatibility

Designed for use in HVAC duct sealing, heat shielding, chemical masking, seaming, and light enhancement applications across residential, commercial, and industrial settings.

Installation Notes

Applied by HVAC technicians, sheet metal workers, and industrial maintenance personnel. Ensure the substrate surface is clean, dry, and free of oils or loose material before application for maximum adhesion. No power shutoff is required for tape installation, but observe all applicable site safety and lockout procedures when working near energized equipment or live ductwork systems. Avoid stretching the tape during application to prevent backing deformation.

Technical Specifications

• Width: 2 inches
• Length: 60 yards per roll
• Backing Material: Dead-soft aluminum foil
• Adhesive Type: Pressure-sensitive acrylic
• Unit of Measure: Roll
• Minimum Order Quantity: 24
• UPC: 051128998545

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010314257
