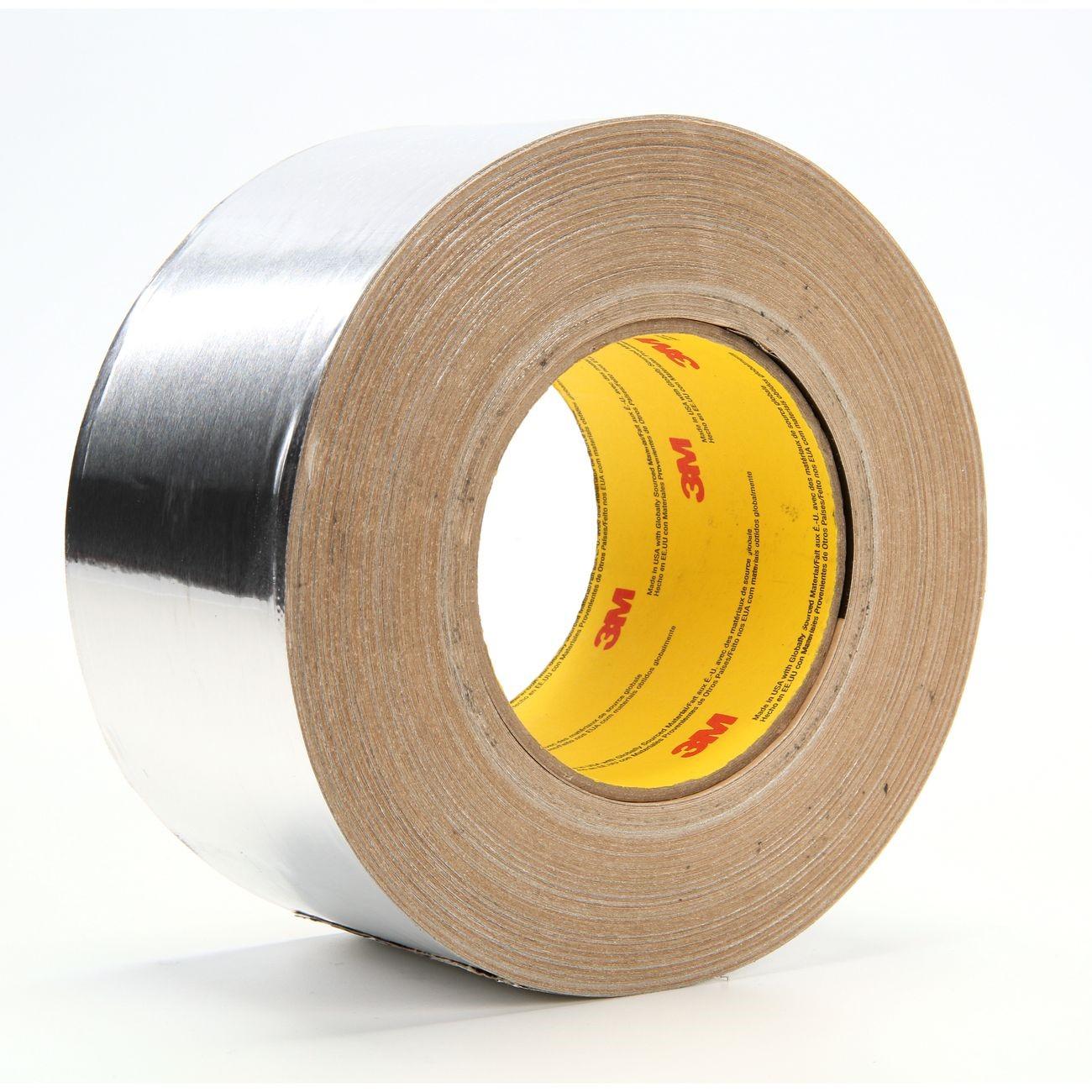

3M 7010314247 Aluminum Foil Tape 6 in 60 Yd Acrylic Silver

Product Description

The 3M 7010314247 is a dead-soft aluminum foil tape with a pressure-sensitive acrylic adhesive, supplied in a 6-inch-wide by 60-yard roll. The dead-soft aluminum foil backing conforms readily to curved, irregular, and uneven surfaces, making it practical for seaming, sealing, heat shielding, and light-reflecting applications. The acrylic adhesive delivers long-term bond durability while still releasing cleanly after masking use. This tape is classified by UL to UL 723 with a Class L low-flammability rating, making it appropriate for installations where flame-spread requirements apply. HVAC technicians, sheet metal workers, and insulation contractors are the primary installers of this product.

This tape is suited for residential and commercial HVAC ductwork seaming and sealing, insulation facing attachment, heat shielding around temperature-sensitive components, and light-enhancement applications in fixture assemblies. The thermally conductive foil construction helps dissipate heat and supports heating and cooling efficiency. It withstands exposure to flame, weathering, moisture, and UV, making it a reliable choice for both interior mechanical spaces and installations subject to environmental stress.

Key Features

• Dead-soft aluminum foil backing conforms to curved and uneven surfaces
• Pressure-sensitive acrylic adhesive bonds long-term and removes cleanly after masking applications
• Thermally conductive construction helps dissipate heat and supports HVAC system efficiency
• Reflects heat and light to protect adjacent surfaces and improve lighting efficiency
• Withstands flame, weathering, moisture, and UV exposure
• UL Classified to UL 723, Class L low-flammability rating

Compatibility

Designed for use on HVAC ductwork, insulation facings, sheet metal assemblies, and heat-shielding applications across residential and commercial installations. This is the linered version of the 3M Aluminum Foil Tape 431.

Installation Notes

Installation is typically performed by licensed HVAC technicians, sheet metal workers, or insulation contractors. Ensure all surfaces are clean, dry, and free of oils or loose material before application for maximum adhesion. Power down or isolate any electrical or mechanical systems in the work area before applying tape near heat sources or energized components. Follow applicable mechanical codes and manufacturer surface-preparation guidance for ductwork sealing applications.

Technical Specifications

• Backing Material: Dead soft aluminum foil
• Adhesive Type: Pressure-sensitive acrylic
• Color: Silver
• Width: 6 inches
• Length: 60 yards
• Unit of Measure: Roll
• Weight: 12.3 pounds
• Package Dimensions: 8.4 inches W x 8.4 inches D x 14.6 inches H
• Flammability Classification: UL 723, Class L
• UPC: 051125855698

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010314247
