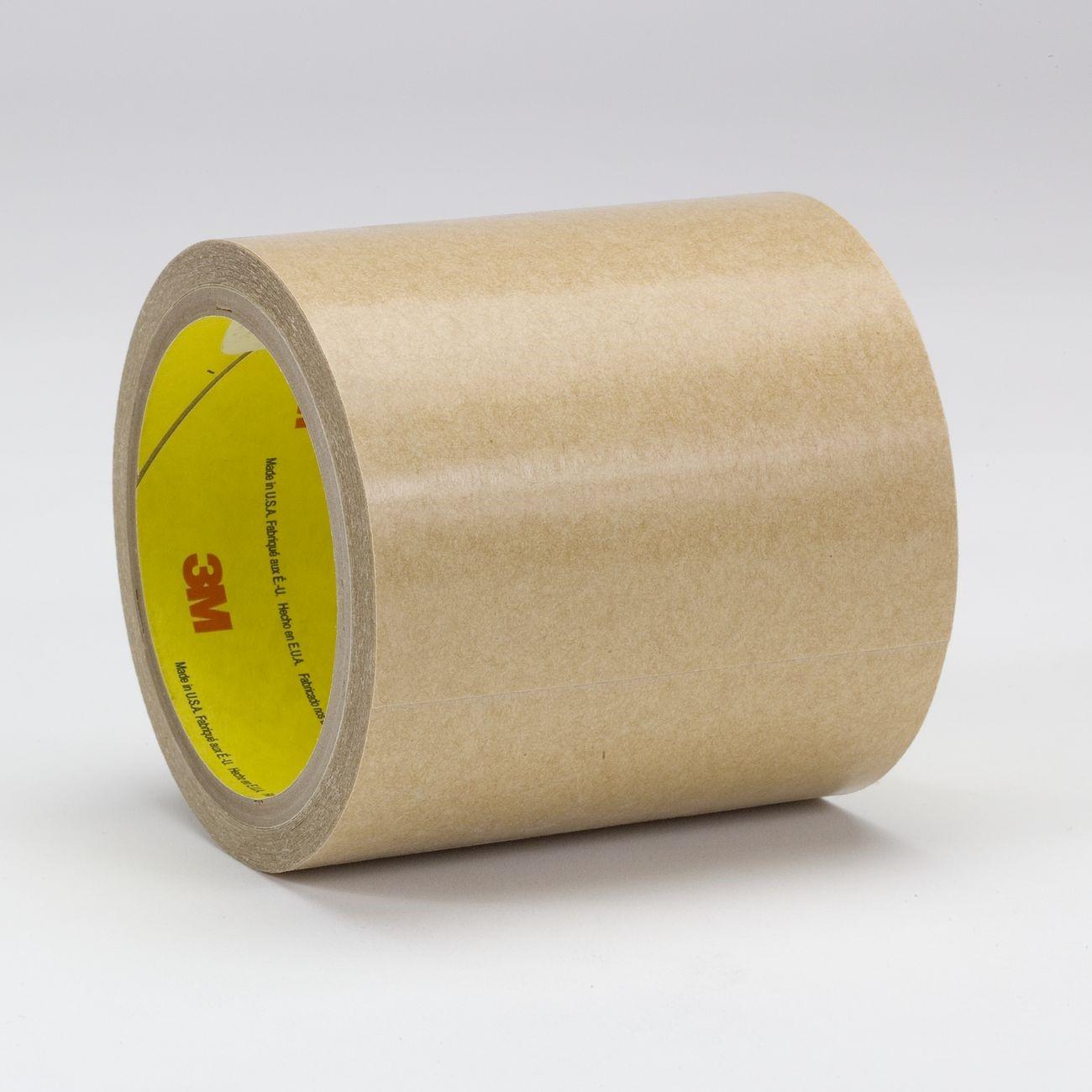

3M 7010312368 Adhesive Transfer Tape 1/4 in X 60 Yd

Product Description

The 3M 7010312368 is a 5.0 mil adhesive transfer tape built around a 300 high-strength acrylic adhesive carried on a 3.5 mil, 60 lb densified kraft paper liner. The tape delivers aggressive initial adhesion with strong UV and chemical resistance, making it well suited for demanding bonding applications across a wide range of substrates. It is UL approved and meets US government specification MIL-P-19834B, Amendment 1. Installers and fabricators working with both high surface energy and low surface energy materials will find this tape compatible with a broad material mix. The roll measures 0.25 inches wide by 60 yards long.

This transfer tape is used as a general-purpose bonding solution in manufacturing, fabrication, signage, and light industrial assembly environments. Typical applications include splicing film, foils, and fabrics, as well as laminating foams, photos, fabrics, and metal or plastic nameplates. It is also used for attaching labels and mounting lightweight components where a thin, high-tack bond line is required. The tape works on similar and dissimilar materials alike, making it a versatile choice for mixed-substrate assemblies.

Key Features

• 5.0 mil total thickness with 300 high-strength acrylic adhesive
• 3.5 mil, 60 lb densified kraft paper liner for controlled release and handling
• UL approved and meets MIL-P-19834B, Amendment 1
• Good UV resistance and chemical resistance for demanding environments
• Compatible with both high surface energy and low surface energy materials
• Thicker-construction alternative to 3M 927 transfer tape

Compatibility

Designed for bonding a wide variety of similar and dissimilar materials including films, foils, fabrics, foams, photos, and metal or plastic nameplates where an aggressive, high-tack adhesive bond is required.

Installation Notes

Surface preparation is critical for maximum adhesion — clean and dry all substrates before application. Apply firm pressure across the entire bond area to ensure full contact. Liner should be removed carefully to avoid stretching the adhesive layer. This product is intended for manual or machine application by fabricators, assemblers, and trade professionals familiar with pressure-sensitive adhesive tapes.

Technical Specifications

• Adhesive Type: 300 High-Strength Acrylic
• Tape Thickness: 5.0 mil
• Liner: 3.5 mil, 60 lb densified kraft paper
• Width: 0.25 inches
• Length: 60 yards
• Unit of Measure: Roll
• Weight: 0.19 pounds
• Finish: Transparent
• Certifications: UL Approved, MIL-P-19834B Amendment 1
• UPC: 00021200393617

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010312368
