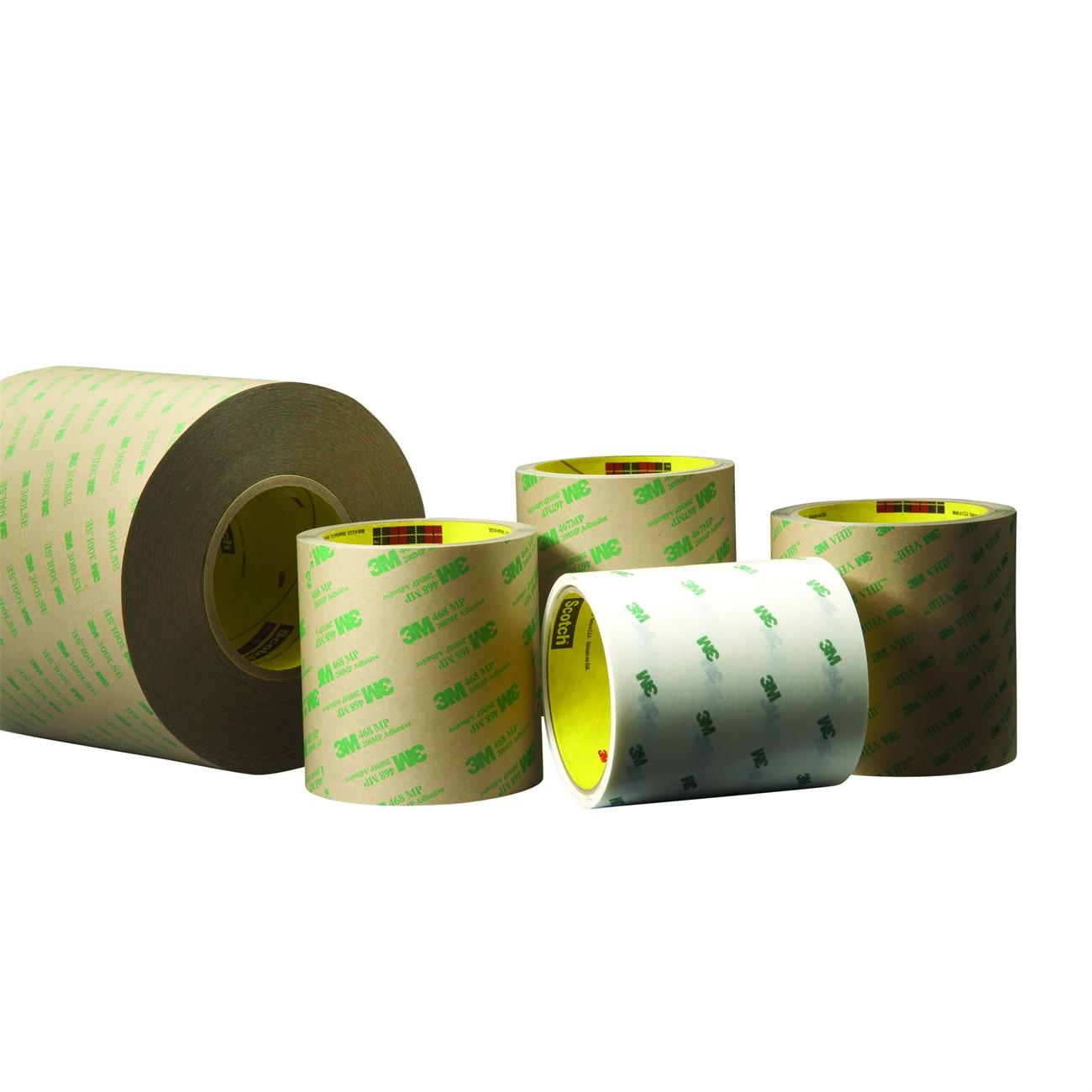

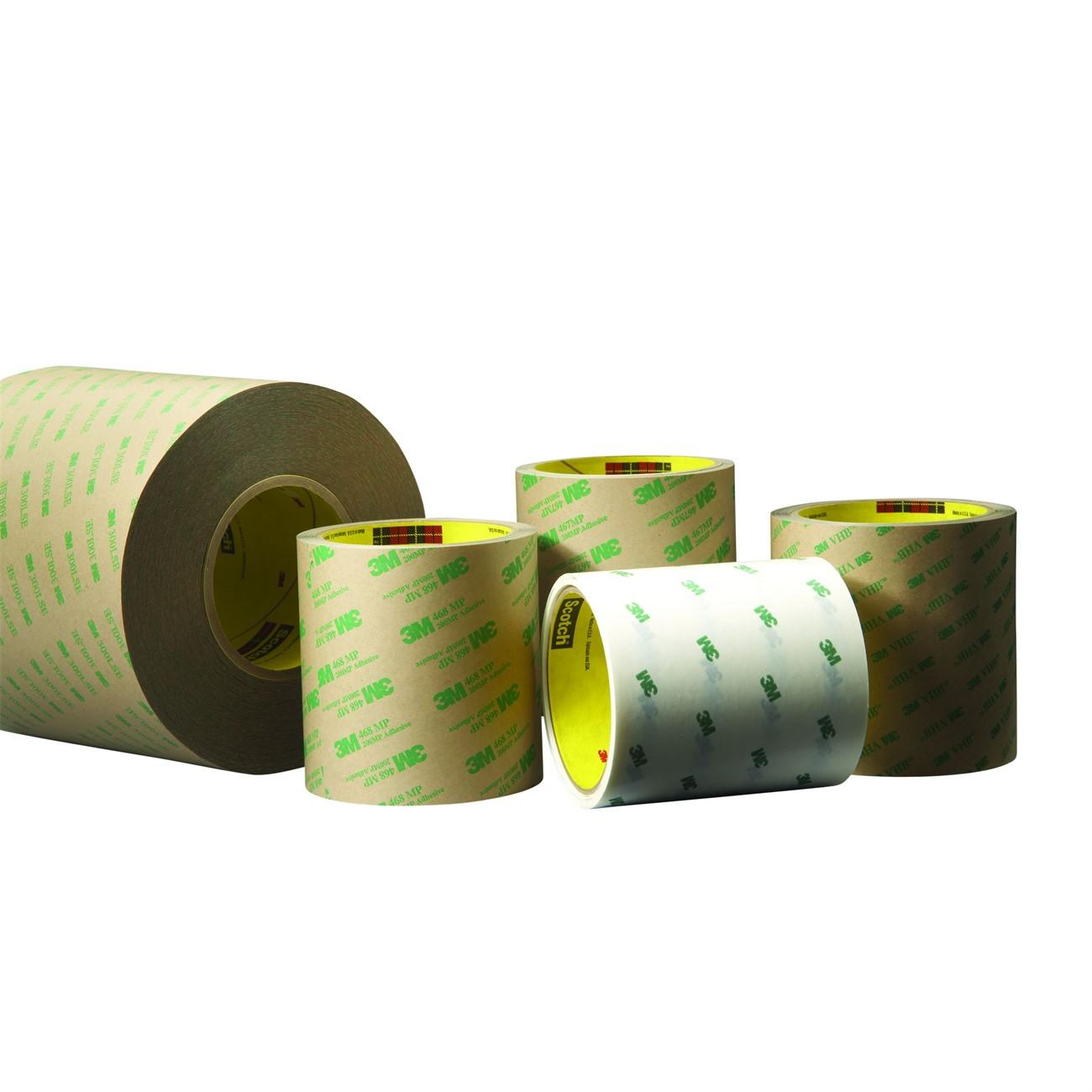

3M 7010312134 Adhesive Transfer Tape 6.5in X 60yd

Product Description

The 3M 7010312134 is a high-temperature acrylic adhesive transfer tape designed for demanding bonding applications across aerospace, automotive, and electronics industries. This double-sided, transparent tape is 2 mil thick and uses 3M High Temperature Acrylic Adhesive 100 to deliver high peel strength, high shear strength, and strong chemical resistance. The tape comes on a 62 densified kraft paper release liner that reduces edge burr during hand tool processing of metal plates, making it well suited for precision fabrication work. Licensed technicians and manufacturing professionals handling bonding in controlled and high-stress environments will find it reliable for long-term structural adhesion.

This tape is specified for use in aerospace, automotive, and electronics applications where thermal resistance and bond integrity are critical. It is designed for situations requiring low outgassing performance, such as clean-room assembly, sealed electronic enclosures, or components exposed to elevated temperatures. The transparent film profile keeps bond lines nearly invisible, which is useful in optical, display, or cosmetic assembly work. It handles short-term temperature exposure up to 450 degrees F and provides outstanding UV resistance for applications with prolonged light exposure.

Key Features

• 2 mil transparent adhesive transfer tape with double-sided high-temperature acrylic adhesive construction
• Short-term temperature tolerance up to 450 degrees F (232 degrees C)
• Low outgassing properties for aerospace, electronics, and cleanroom applications
• 62 densified kraft paper release liner reduces edge burr during hand tool processing of metal plates
• High peel and shear strength for bonds under extreme mechanical and thermal stress
• Outstanding UV and chemical resistance for extended service life

Compatibility

Designed for bonding applications in aerospace, automotive, and electronics markets where high-temperature acrylic adhesion, low outgassing, and chemical resistance are required.

Installation Notes

Surface preparation is critical for adhesive transfer tape performance — clean bonding surfaces thoroughly to remove oils, dust, and contaminants before application. Apply firm, even pressure across the entire bond area to ensure full adhesive contact. Follow applicable industry handling standards for the target market, particularly when working in cleanroom or aerospace environments where outgassing and contamination protocols apply. Allow adequate dwell time before subjecting the bond to load or elevated temperature.

Technical Specifications

• Tape Width: 6.5 inches
• Tape Length: 60 yards
• Thickness: 2 mil (0.05 mm)
• Adhesive Type: High Temperature Acrylic (Adhesive 100)
• Transparency: Transparent
• Short-Term Temperature Tolerance: 450 degrees F (232 degrees C)
• Release Liner: 62 densified kraft paper
• Unit of Measure: Roll
• Minimum Order Quantity: 4
• Weight: 3.53 pounds
• UPC: 00048011584072

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010312134
