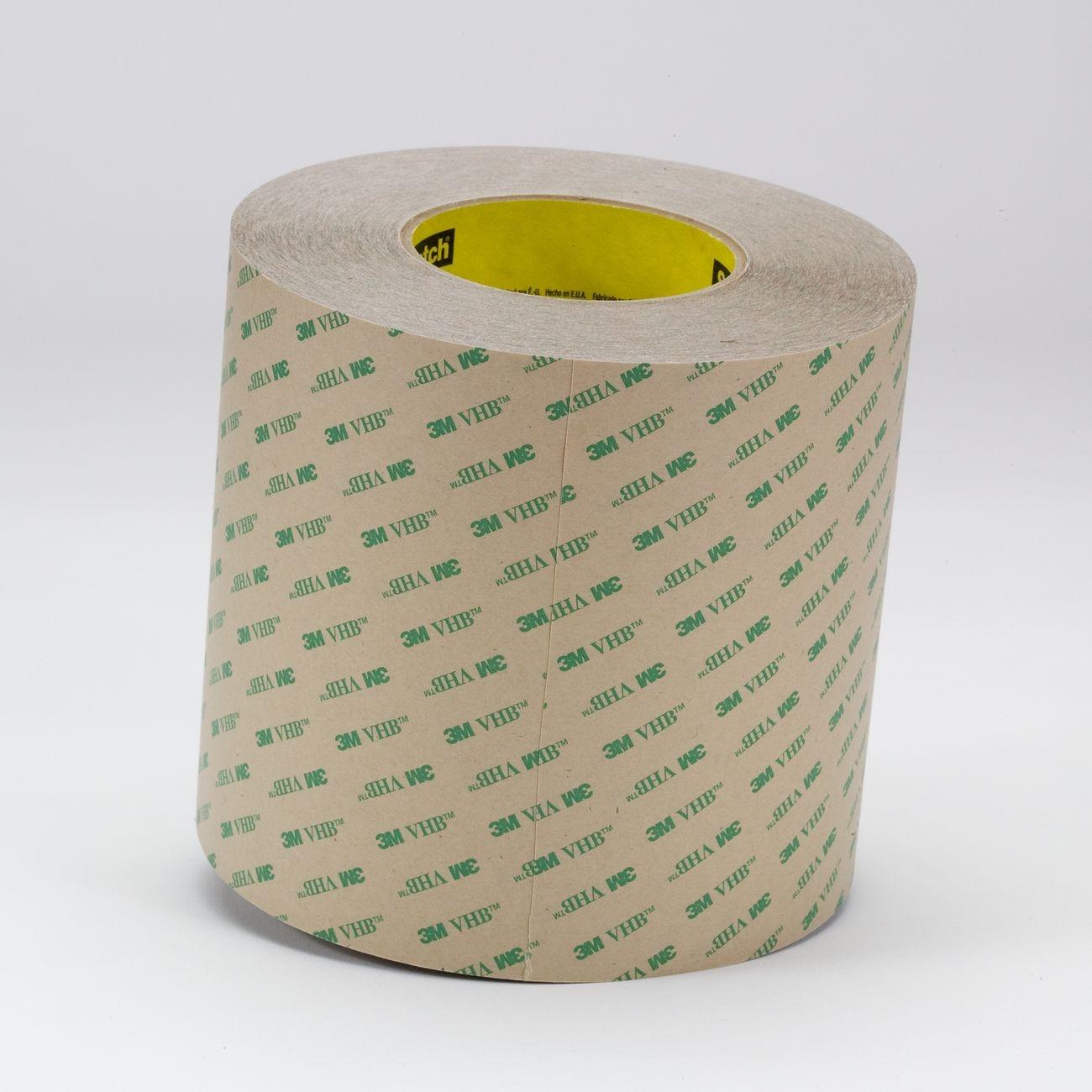

3M 7010311925 Vhb F9473PC Adhesive Transfer Tape 1.25 in

Product Description

The 3M 7010311925 is a VHB F9473PC adhesive transfer tape engineered for high-strength bonding in a thin, transparent profile. At 10 mil thickness, it uses 3M High Performance Acrylic Adhesive 100MP to deliver exceptional holding power and long-lasting adhesion across a wide range of surfaces. The tape is double-sided with no carrier layer, relying entirely on the acrylic adhesive mass for its bond. It ships on a 58-lb polycoated kraft paper liner and is supplied in 1.25-inch wide rolls. Installation professionals and assembly technicians use it wherever a clean, invisible bond line is required and a traditional fastener or liquid adhesive is not practical.

F9473PC is suited for both indoor and outdoor applications. Its acrylic adhesive construction resists UV exposure, common chemicals, and solvents, making it viable for demanding environments. It conforms well to low-surface-energy substrates and uneven surfaces, which makes it a frequent choice for metal-to-metal bonding, nameplates, gasket attachment, panel assembly, and decorative trim work in commercial and light industrial settings. The transparent tape body remains visually unobtrusive after application.

Key Features

• 10 mil (0.26 mm) thickness provides a thin profile with high-strength acrylic adhesive bond
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to UV exposure, solvents, and common chemicals
• Conforms to indoor and outdoor surfaces including low-energy substrates
• 58-lb polycoated kraft paper liner for controlled, clean release during application

Compatibility

Designed for use across a wide variety of indoor and outdoor bonding applications including metal, glass, and rigid plastic substrates where a transparent, high-strength adhesive transfer tape is required.

Installation Notes

Surface preparation is critical before applying adhesive transfer tape — clean, dry, and degrease all bonding surfaces prior to application. Apply firm, even pressure across the full tape area to achieve maximum contact and bond strength. Allow adequate dwell time at room temperature before subjecting the bond to load or stress. Remove the liner carefully and avoid stretching the adhesive during application to maintain consistent thickness and bond quality.

Technical Specifications

• Tape Series: VHB F9473PC
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Thickness: 10 mil (0.26 mm)
• Width: 1.25 inches
• Color: Transparent
• Liner: 58-lb polycoated kraft paper
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Unit of Measure: Roll
• Package Weight: 2.08 pounds
• Package Length: 8.3 inches
• Package Width: 8.3 inches
• Package Height: 10.5 inches

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010311925
