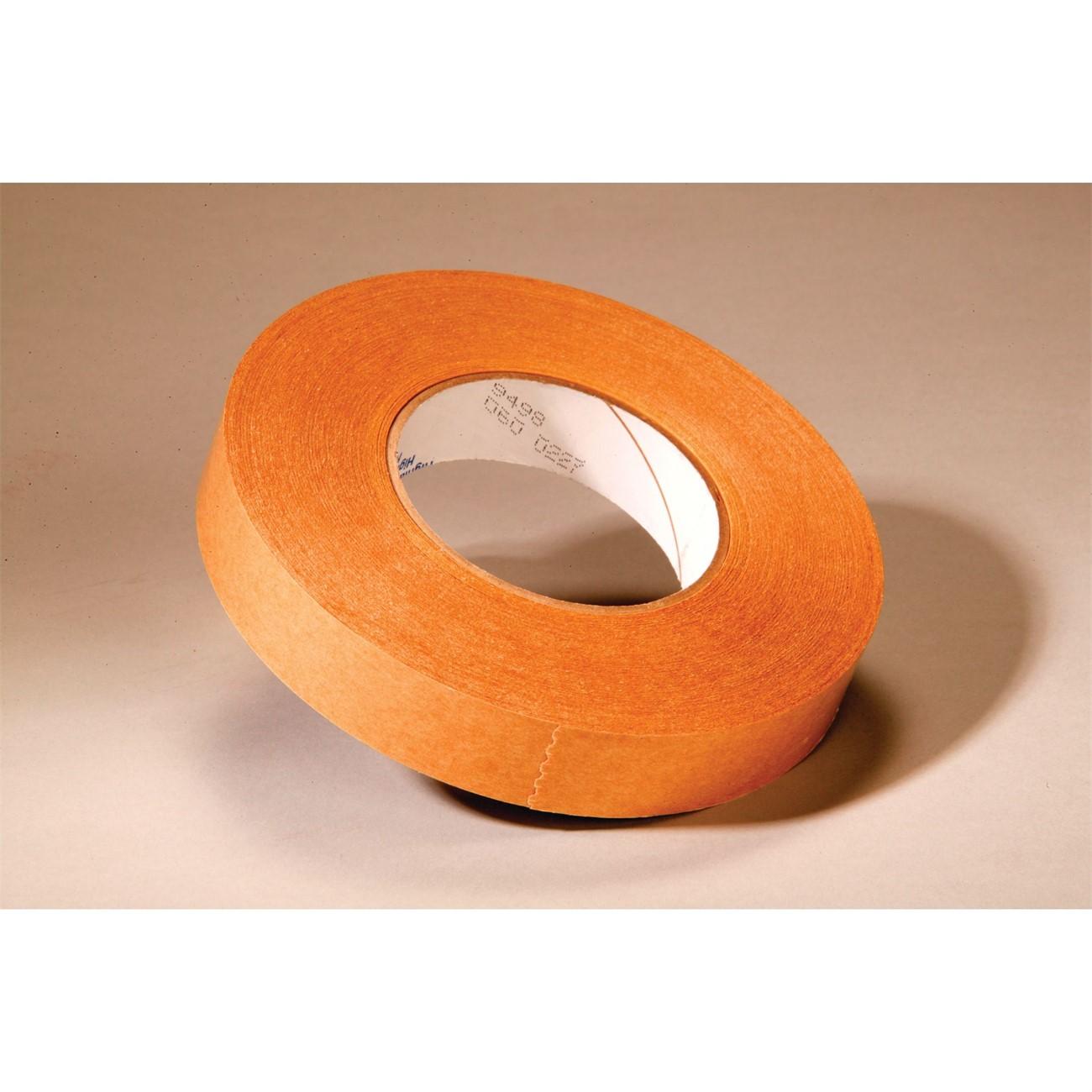

3M 7010311765 Adhesive Transfer Tape 2 in 120 Yd

Product Description

The 3M 7010311765 is an adhesive transfer tape designed for high-speed splicing and core starting applications in demanding industrial environments. The tape carries an ultra-high peel strength formulation that holds through rigorous flying splice cycles at process speeds exceeding 2,000 feet per minute. It bonds to a wide range of substrates, including low surface energy plastics, and maintains adhesion at temperatures up to 250 degrees F for extended dwell times. A 60 lb densified kraft liner supports clean, accurate die-cutting. Industrial maintenance technicians and press operators are the primary installers.

This adhesive transfer tape is used primarily in the printing industry, where consistent wet grab at splice points is critical to uninterrupted web handling. The transparent film construction and conformable nature make it suitable for irregular surfaces and tight roll geometries. It also performs in oven environments at up to 450 degrees F when dwell times are ten seconds or less, expanding its utility to heat-tunnel and lamination line applications where short thermal exposures occur.

Key Features

• Ultra-high peel strength and excellent shear strength for flying splice and core starting operations
• Process speed rated above 2,000 feet per minute
• Bonds to most substrates including low surface energy plastics
• Temperature resistance up to 250 degrees F for extended periods; up to 450 degrees F for dwell times of ten seconds or less
• 60 lb densified kraft liner for precise die-cutting
• Conformable construction adapts to irregular surfaces

Compatibility

Designed as an OEM-style adhesive transfer tape replacement for high-speed printing and converting equipment requiring reliable flying splice and core starting adhesion.

Installation Notes

Application is typically performed by press operators or industrial maintenance technicians familiar with web-handling equipment. Ensure the substrate surface is clean, dry, and free of contaminants before applying the tape to achieve maximum bond strength. Power down or de-energize any equipment before accessing splice points on stationary rolls. Follow the equipment manufacturer guidelines for splice geometry and liner removal sequence.

Technical Specifications

• Width: 2 inches
• Length: 120 yards
• Unit of Measure: Roll
• Color: Transparent
• Max Temperature (extended): 250 degrees F
• Max Temperature (short dwell, 10 sec or less): 450 degrees F
• Liner: 60 lb Densified Kraft
• Weight: 1.84 pounds
• UPC: 00021200841002

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010311765
