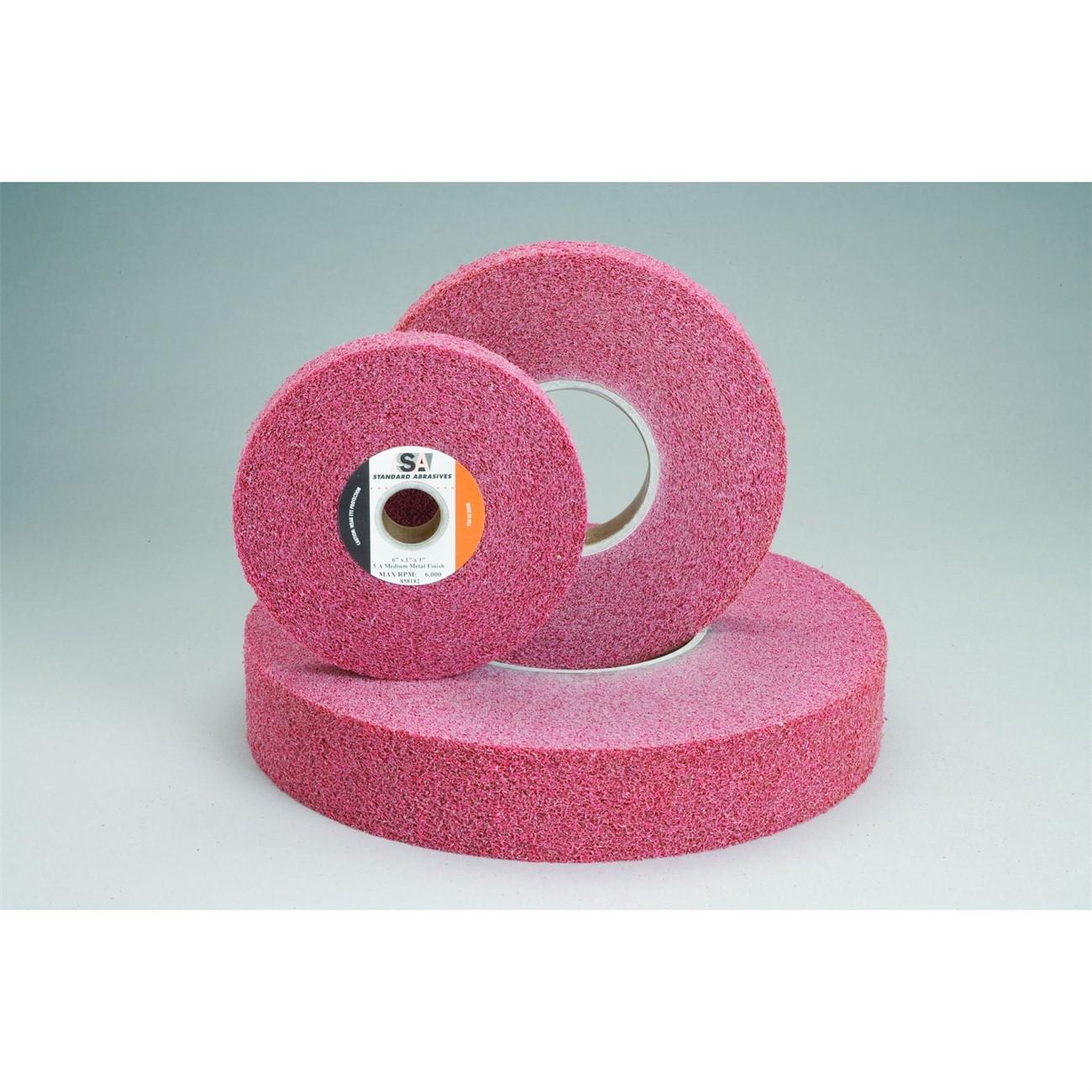

3M 7010310565 Convolute Finishing Wheel 10 Inch Ao

Product Description

The 3M 7010310565 is a convolute finishing wheel built for final-finish work on metal surfaces. Dense, stiff construction gives it the rigidity needed to work flat surfaces and corners without deflecting under load. The wheel uses aluminum oxide abrasive and an open-web structure that resists loading, which extends service life compared to closed-construction wheels. At 10.38 inches in diameter and 3.75 inches wide, it suits bench-mounted or pedestal finishing setups used by fabricators, machinists, and metalworking tradespeople targeting satin or antique surface finishes.

This wheel is suited to metal finishing applications where a consistent, repeatable surface profile is required. The rigid convolute construction performs on flat stock, tubing, and part edges. The high cut rate at low contact pressure reduces operator fatigue and keeps cycle times down. The open web resists clogging when working softer metals or at higher spindle speeds typical in production finishing environments.

Key Features

• Produces satin and antique finishes on a variety of metals
• Rigid convolute construction performs on flat surfaces and corners
• Open-web structure is load resistant, extending abrasive service life
• High cut rate achieved at low contact pressure
• Can be dressed to conform to specific part geometry

Compatibility

Designed as a convolute finishing wheel for bench-mounted or pedestal grinding and finishing machines that accept 10-inch diameter wheels.

Installation Notes

Installation should be performed by a qualified metalworking technician or machinist. Confirm the spindle speed rating of the host machine does not exceed the maximum RPM rating of the wheel before mounting. Power down and lock out the machine before mounting or removing any abrasive wheel. Follow ANSI B11 and OSHA 29 CFR 1910.215 guarding requirements for abrasive wheel machinery.

Technical Specifications

• Wheel Type: Convolute
• Abrasive Material: Aluminum Oxide (AO)
• Diameter: 10.38 inches
• Width: 3.75 inches
• Overall Dimensions (L x W): 10.38 x 10.38 inches
• Weight: 2.445 pounds
• UPC: 051141431345
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010310565
