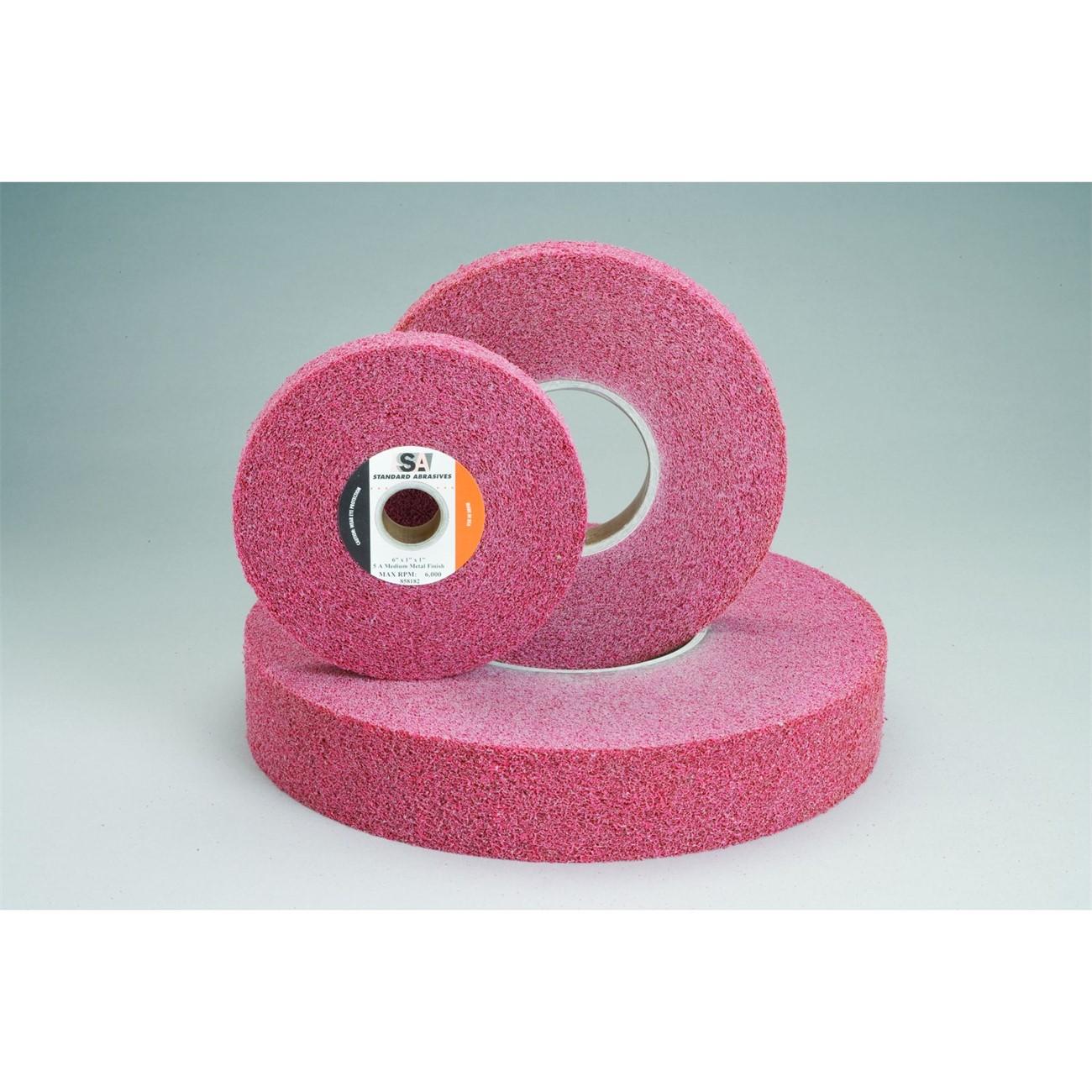

3M 7010310163 Convolute Finishing Wheel 12 Inch Ao

Product Description

The 3M 7010310163 is a standard abrasives convolute finishing wheel built for producing final surface finishes on a range of metals. The dense, stiff convolute construction holds its shape during use, making it effective on flat surfaces, edges, and corners without collapsing under pressure. At 12 inches in diameter and 5 inches wide, this wheel suits bench grinder and pedestal grinder setups commonly found in metal fabrication shops and finishing operations. The aluminum oxide abrasive delivers a high cut rate at low contact pressure, reducing operator fatigue and improving consistency across production runs.

This convolute wheel is used in metal fabrication, finishing, and surface prep applications where satin or antique finishes are the target result. It performs on ferrous and non-ferrous metals including steel, aluminum, and brass. The open web construction resists loading, extending abrasive life in environments where fine metal particles and swarf would otherwise clog a conventional wheel. It can be dressed to match specific part profiles or contours, making it adaptable to both flat workpieces and shaped components.

Key Features

• Dense convolute construction maintains rigidity on flat surfaces and corners
• Produces satin and antique finishes on a variety of metals
• High cut rate at low contact pressure reduces operator fatigue
• Open web resists loading, extending abrasive service life
• Can be dressed to conform to specific part geometry

Compatibility

Designed for use on bench grinders and pedestal grinders suited to convolute wheels. Suitable for finishing ferrous and non-ferrous metals. Verify spindle speed rating and arbor size against your machine specifications before mounting.

Installation Notes

Mounting of abrasive wheels should be performed by a qualified operator following ANSI B7.1 safety standards and applicable shop safety codes. Power down and lock out the grinder before installing or removing the wheel. Inspect the wheel for cracks or damage before mounting, and always run a new wheel at operating speed for at least one minute behind a guard before bringing it into contact with a workpiece.

Technical Specifications

• Diameter: 12 inches
• Width: 5 inches
• Abrasive Type: Aluminum Oxide (AO)
• Wheel Type: Convolute
• Application: Metal Finishing
• Weight: 11 pounds
• UPC: 051115371202

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010310163
