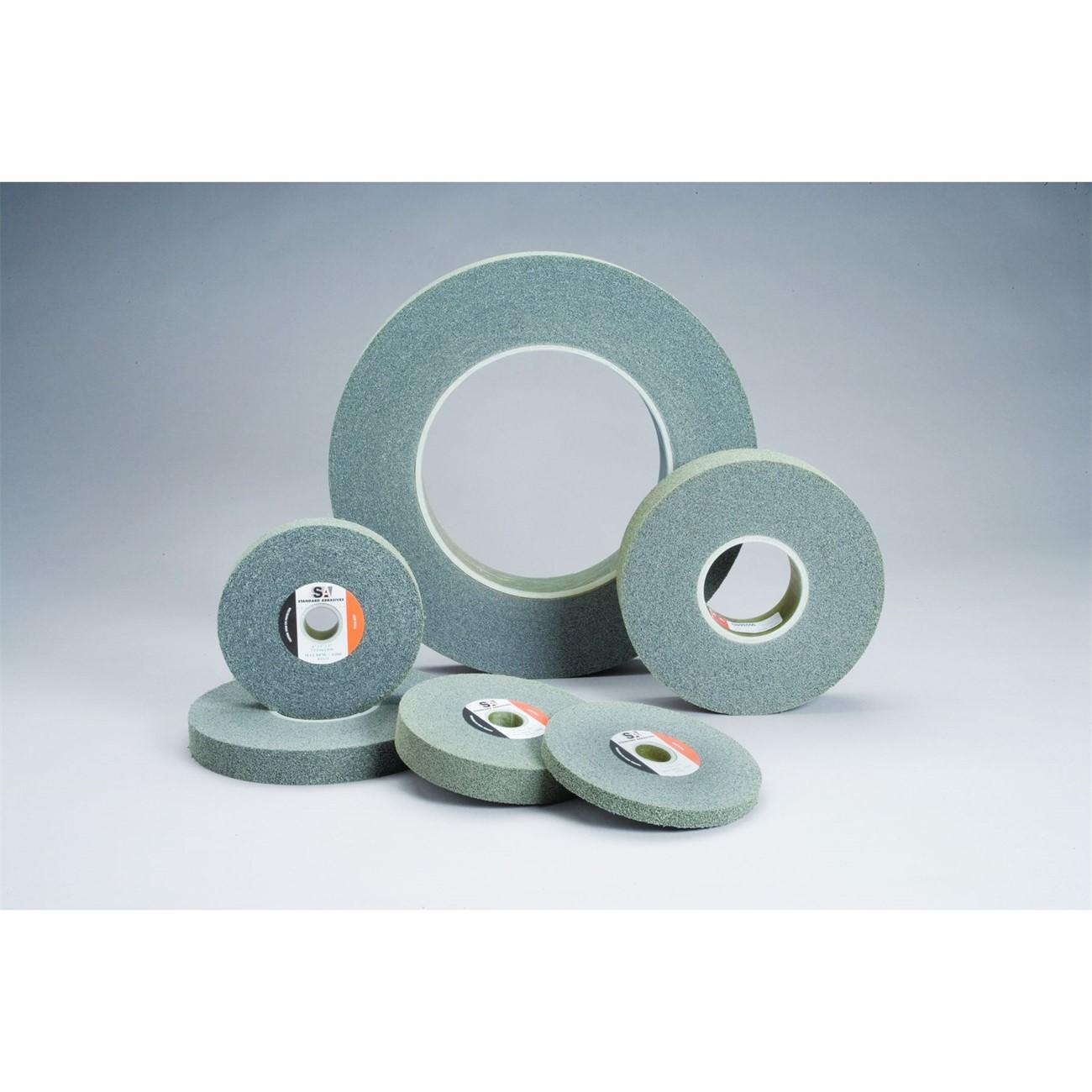

3M 7010310153 Convolute Light Deburring Wheel 6 in

Product Description

The 3M 7010310153 is a convolute light deburring wheel designed for finishing and deburring parts with critical tolerances. The wheel measures 6 inches in diameter with a 1-inch arbor and weighs 1.35 pounds. Its soft density construction allows the abrasive to conform to the substrate surface, reducing the risk of undercutting or gouging. This wheel is non-metallic, which prevents contamination of the workpiece and supports a smear-resistant finish. Machinists, fabricators, and finishing technicians working on tight-tolerance components will find this wheel suited for both manual and automated applications.

This wheel is intended for light deburring, blending machine marks, blending belt marks, and finishing small parts. It is compatible with automated equipment, straight-shaft stationary tools, portable tools, and feed-through machines. The fast finish rate reduces operator effort compared to traditional deburring methods, making it practical for high-volume production environments as well as bench-top finishing work.

Key Features

• Soft density construction conforms to substrate geometry, preventing undercutting and gouging
• Non-metallic composition eliminates workpiece contamination risk
• Maintains a smear-resistant finish on finished surfaces
• Fast finish rate reduces effort and cycle time versus conventional wheels
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines
• Suitable for blending machine marks, belt marks, and finishing small precision parts

Compatibility

Designed for use with automated equipment, straight-shaft stationary and portable tools, and feed-through machines requiring a 1-inch arbor and a 6-inch diameter convolute deburring wheel.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and fully de-energize the spindle or tool before mounting or removing the wheel. Verify that the arbor size and shaft speed rating of the tool match the wheel specifications before operation. Follow all applicable ANSI and OSHA abrasive wheel safety standards when mounting and guarding the wheel.

Technical Specifications

• Wheel Diameter: 6 inches
• Arbor Size: 1 inch
• Wheel Type: Convolute Light Deburring
• Weight: 1.35 pounds
• Package Length: 6.38 inches
• Package Width: 6.38 inches
• Package Height: 3.69 inches
• Unit of Measure: Each
• UPC: 051115369891

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010310153
