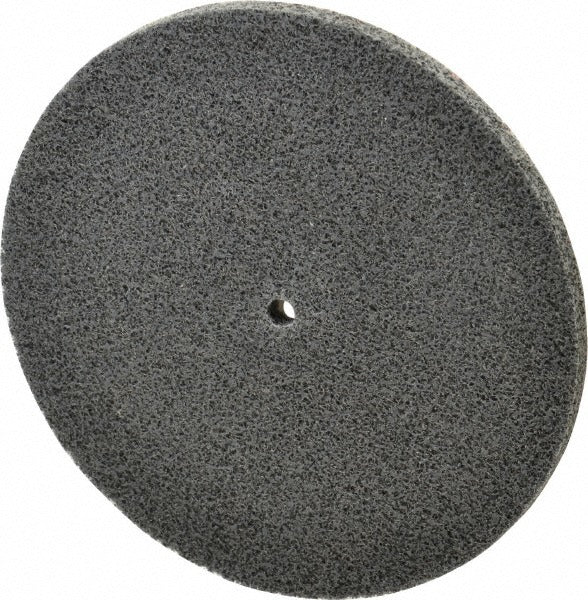

3M 7010309816 Deburring Wheel 5 Inch Silicon Carbide

Product Description

The 3M 7010309816 is a unitized deburring wheel designed for removing burrs, blending surface irregularities, and light finishing on metal workpieces. Built around a silicon carbide abrasive in a soft, fine-grade density 3 construction, this wheel delivers consistent cut with a degree of flexibility that helps conform to contoured surfaces. It measures 5 inches in diameter with a 0.25-inch face width and a 0.25-inch center hole, and it is rated to a maximum of 6,000 RPM. Machinists, tool-and-die workers, and metal fabricators install this wheel for production deburring and surface prep applications where controlled material removal is required.

This deburring wheel is suited for use on ferrous and non-ferrous metals in both shop and production environments. Its silicon carbide abrasive makes it particularly effective on harder, more brittle materials where a sharp, cool-cutting grain is needed. The unitized construction integrates the abrasive throughout the wheel body, allowing the wheel to wear evenly and maintain consistent performance over its service life. Compatible tooling includes centerless grinders, die grinders, inline sanders, manual backstands, and pressure assist backstands.

Key Features

• Silicon carbide abrasive with soft, fine-grade density 3 construction for controlled, flexible cutting action
• 5-inch diameter unitized wheel with abrasive integrated throughout for consistent wear and performance
• 0.25-inch face width and 0.25-inch center hole fits standard arbors on compatible machines
• Rated to 6,000 RPM maximum for safe use on die grinders, inline sanders, and backstands
• Effective on harder and brittle materials where a cool-cutting abrasive grain is needed

Compatibility

Designed for use with centerless grinders, die grinders, inline sanders, manual backstands, and pressure assist backstands. Fits arbors accepting a 0.25-inch center hole.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Disconnect and lock out power to the machine before mounting or removing any abrasive wheel. Verify that the machine spindle speed does not exceed the wheel's 6,000 RPM maximum rating before operating. Inspect the wheel for cracks or damage prior to each use and discard any wheel that shows signs of deterioration.
