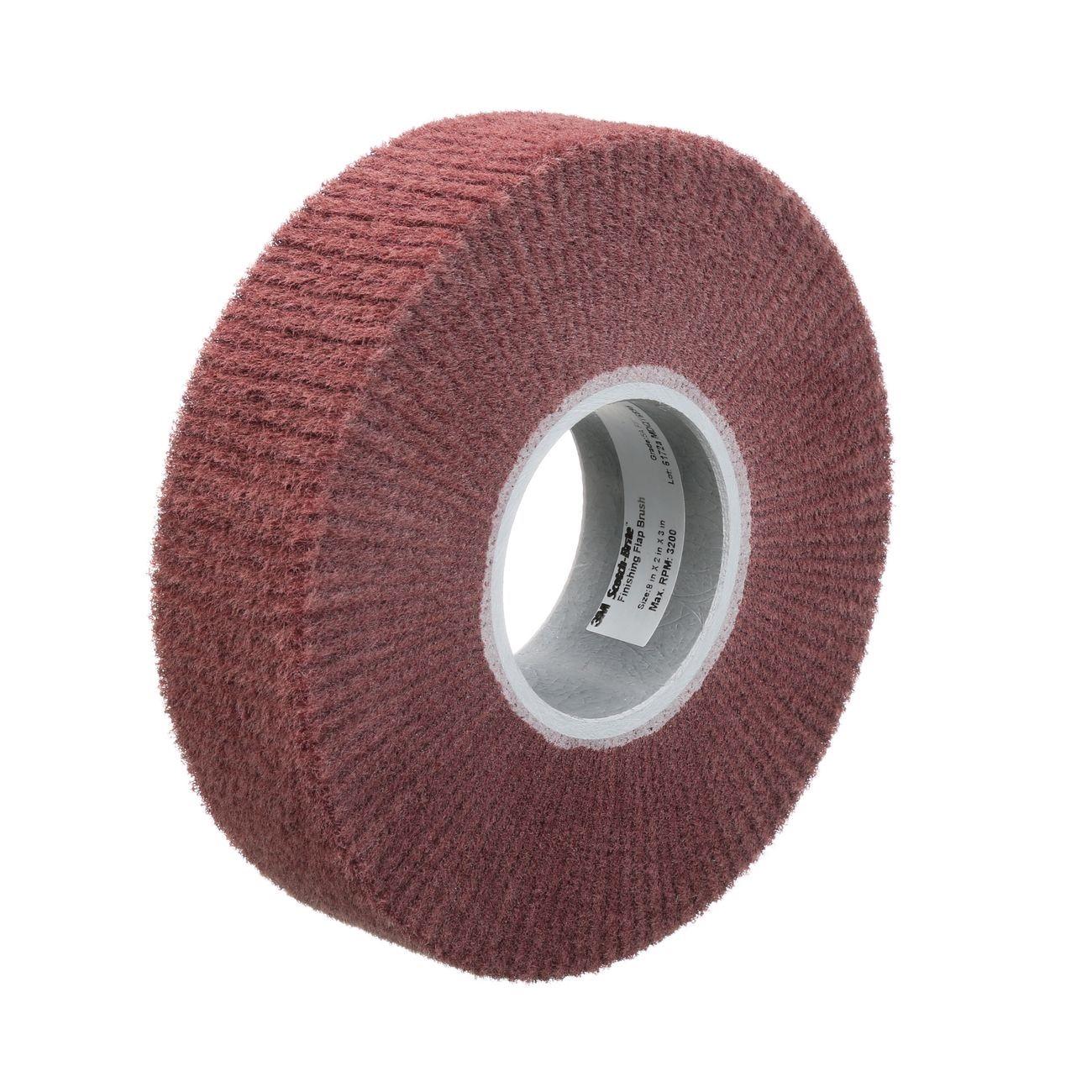

3M 7010309552 Finishing Flap Brush 12x1x5 in

Product Description

The 3M 7010309552 is a finishing flap brush designed for light-duty cleaning and surface finishing applications. The brush features individual abrasive sheets adhered at a 90-degree angle to a central core, creating a flap-style action that conforms to irregular surfaces during use. The abrasive mineral is fine-grade aluminum oxide, and the brush is rated at a medium hardness density of 5. At 12 inches in length with a 1-inch width and 5-inch diameter, this tool is suited for bench grinder or arbor-mounted finishing work performed by fabricators, maintenance technicians, and metalworking tradespeople.

This flap brush is built for light cleaning, deburring, blending, and surface preparation on metal and similar hard materials. The fine aluminum oxide abrasive makes it appropriate for finishing passes where stock removal is minimal and surface condition is the priority. Typical applications include weld blending, part cleanup, and edge conditioning on fabricated components. The 5-inch face diameter provides good surface contact on flat or contoured workpieces.

Key Features

• Individual abrasive sheets set at 90 degrees to core for consistent flap-style contact
• Fine-grade aluminum oxide mineral for light finishing and surface conditioning
• Medium hardness, density 5 construction balances conformability and durability
• 12-inch brush length accommodates longer workpieces on arbor-mounted setups
• Sold individually — unit of measure is each

Compatibility

Designed as an OEM-style replacement or direct-use flap brush for arbor-mounted bench grinders and finishing machines accepting a 5-inch diameter flap brush with a 1-inch face width.

Installation Notes

Installation and use of this flap brush should be performed by qualified personnel familiar with abrasive wheel and brush mounting procedures. Always power down and de-energize the grinder or finishing machine before mounting or removing the brush. Verify the machine spindle speed rating is compatible with the brush before operation, and inspect the brush for damage prior to each use. Follow applicable ANSI B11 and OSHA abrasive wheel safety guidelines during setup and operation.

Technical Specifications

• Dimensions: 12 inches x 1 inches x 5 inches
• Abrasive Mineral: Fine grade aluminum oxide
• Density: 5 (medium hardness)
• Sheet Orientation: 90 degrees to core
• Duty Rating: Light duty
• Weight: 1.34 pounds
• UPC: 00048011012544

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010309552
