3M 7010309418 Trizact 307EA Abrasive Belt 132x3 Inch Ao

Product Description

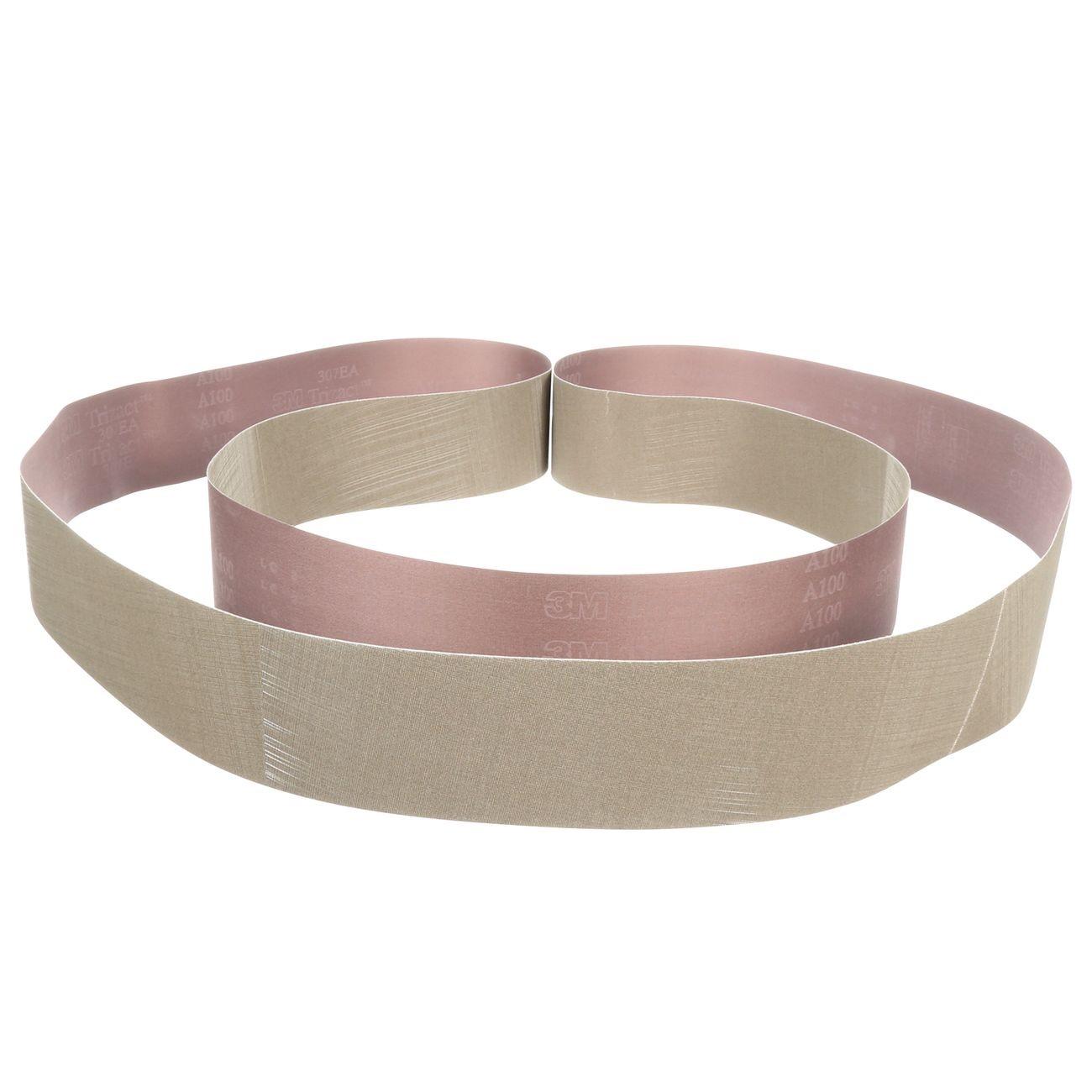

The 3M 7010309418 is a Trizact 307EA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to a flexible rayon cloth backing. As the abrasive pyramids wear during use, fresh, sharp mineral is continuously exposed at the cutting surface. This self-renewing action produces a consistent cut rate and a predictable, fine finish throughout the life of the belt. The belt measures 132 inches in length and 3 inches in width and is suited for industrial and automated finishing environments.

This belt is intended for use in robotic or automated belt finishing systems where consistent, repeatable surface finish is required across high production volumes. It excels in intermediate cut-down and fine polishing steps prior to plating, buffing, or other surface treatment processes. The flexible rayon backing conforms to contoured workpiece profiles, making it appropriate for parts with curved or complex geometry. Typical applications include metalworking, fabrication, and precision surface preparation in manufacturing settings. Installation and operation are performed by skilled machine operators or industrial maintenance professionals.

Key Features

• Microreplication technology forms aluminum oxide into uniform pyramidal structures for consistent cut and finish
• Self-sharpening pyramid design continuously exposes fresh mineral as the abrasive wears
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible rayon cloth backing conforms to contoured and complex surface profiles
• Three-dimensional abrasive structure delivers repeatable finishes throughout belt life in robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed as a replacement-style abrasive belt for industrial belt finishing machines and automated robotic finishing systems that accept a 132-inch by 3-inch belt configuration.

Installation Notes

Installation of abrasive belts should be performed by qualified machine operators following the equipment manufacturer's belt-change procedures. Power down and lock out the machine before removing or installing any belt. Confirm belt tracking and tension settings on the machine before resuming operation. Inspect the belt for tears or edge damage before each use and replace if damage is found.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 0.35 pounds
• UOM: Each
• UPC: 00051111690598

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010309418
