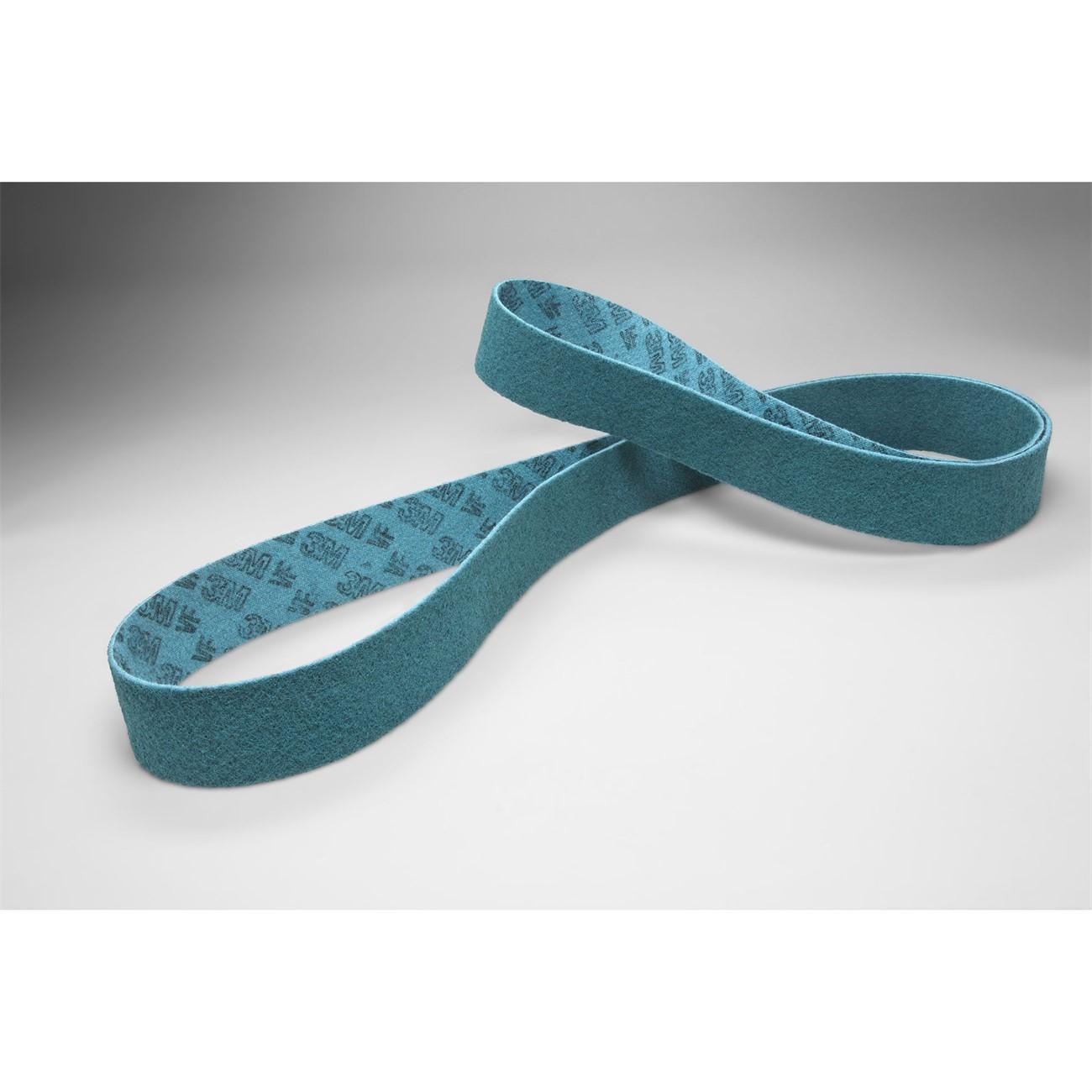

3M 7010309360 Surface Conditioning Belt 90x1 Inch

Product Description

The 3M 7010309360 is a non-woven surface conditioning belt designed for controlled finishing, blending, and light material removal on metal and other substrates. Built on a durable cloth and polyester scrim backing, this belt offers moderate stretch resistance, making it well suited for applications where consistent finish geometry matters. The open web construction resists loading, which extends abrasive service life and keeps the belt cutting cleanly across extended use cycles. At 90 inches long and 1 inch wide, it fits standard narrow belt finishing machines used in metalworking and fabrication shops.

This belt is used in surface conditioning sequences where aggressive cutting is not required and preserving the base material geometry is the priority. It performs on a range of substrates including stainless steel, brass, and other metals. It is commonly used by fabricators, maintenance technicians, and metalworking professionals for weld blending, surface prep, and finishing passes. The aluminum oxide mineral with resin bond provides consistent cut and finish across the belt life.

Key Features

• Cloth and polyester scrim backing resists stretch for dimensional control during finishing
• Springy non-woven nylon fibers maintain workpiece geometry while conditioning the surface
• Open web construction resists loading, extending usable abrasive life
• Aluminum oxide mineral with resin bond delivers consistent cut across a range of metals
• Compatible with stainless steel, brass, and other metal substrates
• Available as a single belt for low minimum-quantity purchasing

Compatibility

Designed as a direct-fit surface conditioning belt for standard narrow belt finishing machines accepting a 90 inch by 1 inch belt configuration. Suitable for use on stainless steel, brass, and similar metal substrates as stated by the manufacturer.

Installation Notes

Installation is performed by fabricators or maintenance technicians familiar with belt finishing equipment. Power down and de-energize the finishing machine fully before changing belts. Confirm belt tension and tracking adjustment per the machine manufacturer guidelines before resuming operation. Inspect the belt for tears or uneven wear before each use session.

Technical Specifications

• Belt Length: 90 inches
• Belt Width: 1 inch
• Abrasive Type: Aluminum Oxide (AO)
• Bond Type: Resin
• Construction: Non-Woven
• Backing Material: Cloth and Polyester Scrim
• Weight: 0.3 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00048011177458

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010309360
