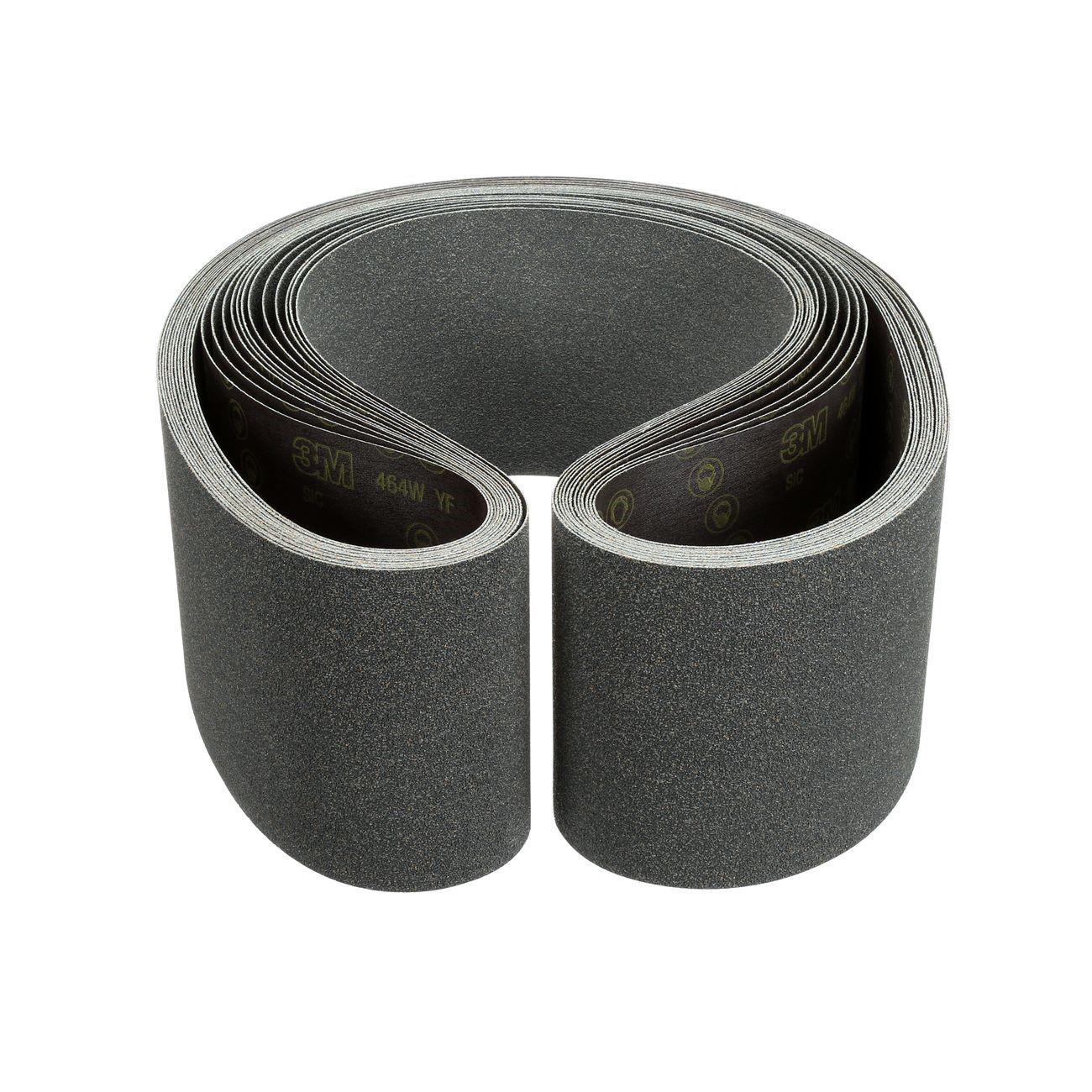

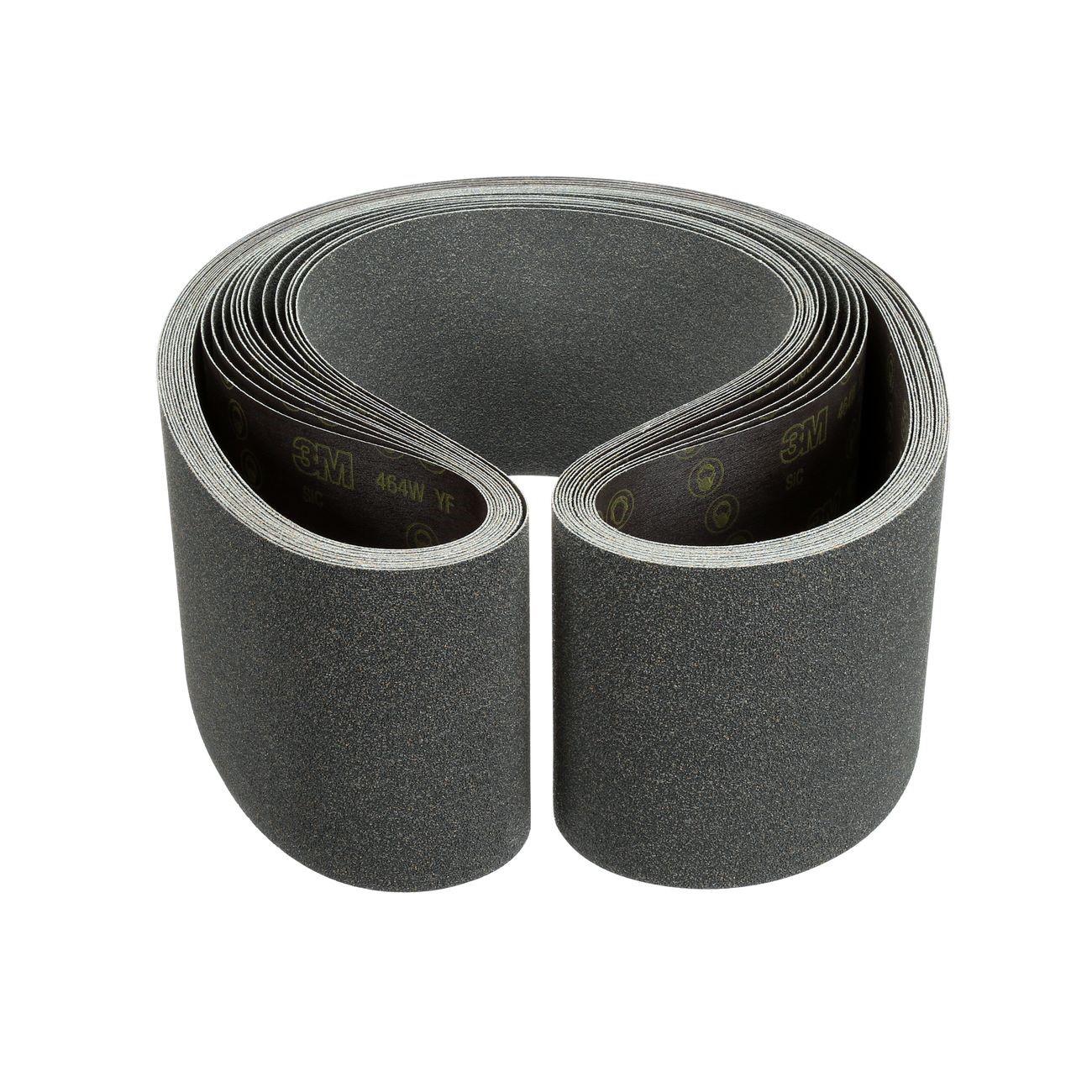

3M 7010309166 Abrasive Cloth Belt 464W 600 Grit 120x9 Inch

Product Description

The 3M 7010309166 is the 464W abrasive cloth belt, engineered for demanding metal surface finishing and final cosmetic polishing work. Built on a heavy YF-weight cloth backing with closed coat construction, this belt delivers aggressive sanding action with consistent grain density across the entire surface. The silicon carbide abrasive mineral, combined with cork particles, produces a fine finish on hard surfaces, including the characteristic blue finish required on stainless steel. Resin bonding resists heat-related deterioration, extending service life under sustained use. At 120 inches long and 9 inches wide, this belt fits wide-format stationary belt sanders used in production and fabrication environments.

This belt is suited for metal surface preparation, final finishing, and cosmetic polishing applications in industrial fabrication, metal service centers, and shop environments. The flexible cloth construction allows the belt to conform to contoured and irregular part geometry, delivering consistent results on both flat and shaped workpieces. Closed coat grain density makes it particularly effective on hard ferrous and non-ferrous metals where a fine, controlled surface finish is required. The waterproof polyester material resists debris buildup and allows for straightforward cleaning during use.

Key Features

• YF-weight cloth backing provides durability and flexibility under aggressive sanding loads
• Silicon carbide abrasive mineral with cork particles delivers an aggressive cut and fine surface finish
• Closed coat construction maximizes grain density for finer finish on hard metals
• Resin bond resists heat deterioration, extending belt service life
• Flexible backing conforms to contoured parts for consistent edge-to-edge finishing
• Waterproof polyester material allows easy debris removal during sanding operations

Compatibility

Designed for use on wide-format stationary belt sanders accepting 120 inch by 9 inch abrasive belts, commonly used in metal fabrication and finishing applications.

Installation Notes

Belt installation and replacement should be performed by qualified shop personnel following the equipment manufacturer's guidelines. Power down and lock out the sander before changing belts. Confirm belt tracking and tension adjustment before resuming operation. Inspect the belt for tears or edge damage prior to each use.

Technical Specifications

• Series: 464W
• Abrasive Type: Silicon Carbide with Cork Particles
• Grit: 600
• Belt Length: 120 inches
• Belt Width: 9 inches
• Backing Weight: YF-Weight Cloth
• Coat Type: Closed Coat
• Bond Type: Resin
• Material: Waterproof Polyester
• Color: Black
• Package Weight: 38 pounds
• UOM: Each
• UPC: 051144829571

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010309166
