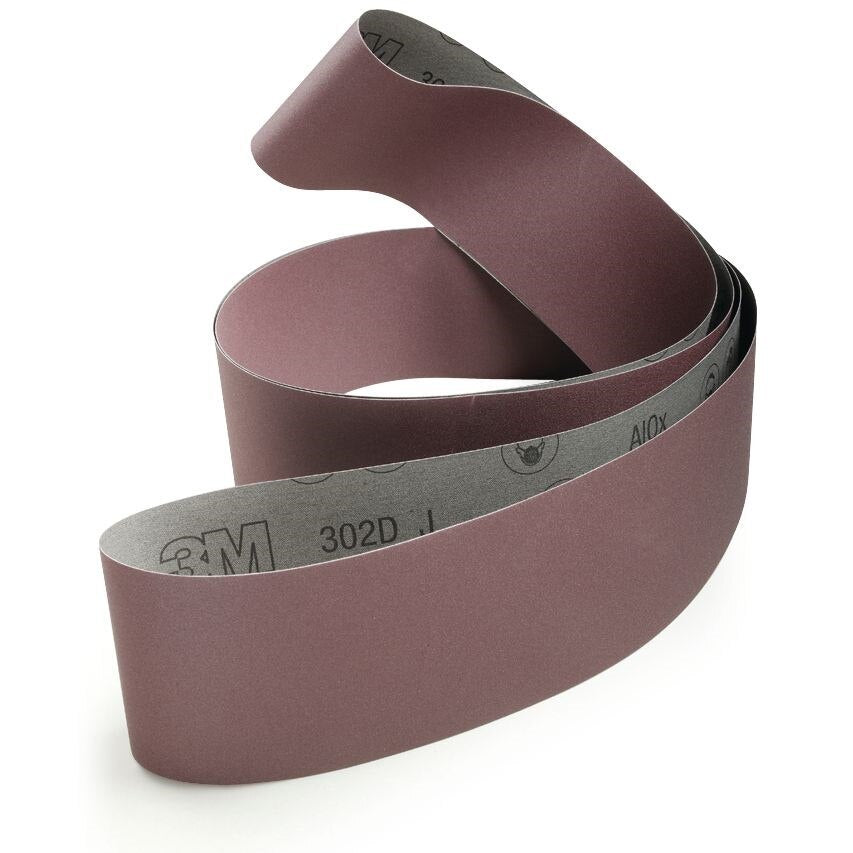

3M 7010308886 Abrasive Belt P180 Grit 132x3 Inch Ao Cloth

Product Description

The 3M 7010308886 is a coated abrasive cloth belt engineered for metalworking applications requiring a fine finish and controlled material removal. Built on a flexible J-weight cloth backing with open coat aluminum oxide grain and a resin bond system, this belt delivers fast cutting action while conforming to contours and complex part geometries. At P180 grit, it is positioned for finishing, deburring, light grinding, and grain-setting work on a wide range of ferrous and non-ferrous metals. The open coat construction actively evacuates sanding dust, extending abrasive life and maintaining cut rate throughout the belt's service life.

This belt is intended for dry metalworking operations on carbon steel, stainless steel, aluminum, brass, bronze, and copper. It is suited for use on backstand grinders, file belt tools, and benchtop motor setups where conformability and finish quality are priorities. The flexible backing makes it well-matched for blending welds, finishing contoured surfaces, and deburring machined edges in both production and job-shop environments. Metal fabricators, maintenance machinists, and industrial finishing technicians are the primary users.

Key Features

• Aluminum oxide abrasive provides fast, consistent cut on most metals
• P180 grit suited for finishing, deburring, and grain-setting operations
• Flexible J-weight cloth backing conforms to contours and complex part shapes
• Open coat construction evacuates dust for longer belt life and more aggressive cut
• Resin bond system maximizes abrasive retention and overall belt durability
• Compatible with backstand grinders, file belt tools, and benchtop motors
• Rated for dry metalworking applications only

Compatibility

Designed for use on backstand grinders, file belt tools, and benchtop motor setups accepting a 132 inch by 3 inch abrasive belt.

Installation Notes

Belt installation should be performed by a qualified operator with the machine powered down and locked out per applicable OSHA lockout/tagout procedures. Verify belt tracking and tension before resuming operation, and confirm the machine is rated for the belt dimensions prior to mounting. Do not use this belt on wet applications or with cutting fluids, as it is designed exclusively for dry metalworking use.

Technical Specifications

• Abrasive Type: Aluminum Oxide
• Grit: P180
• Belt Length: 132 inches
• Belt Width: 3 inches
• Backing Material: J-Weight Cloth
• Coat Type: Open Coat
• Bond Type: Resin
• Application: Dry Metalworking
• Weight: 0.32 pounds
• UPC: 00051141307237

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308886
