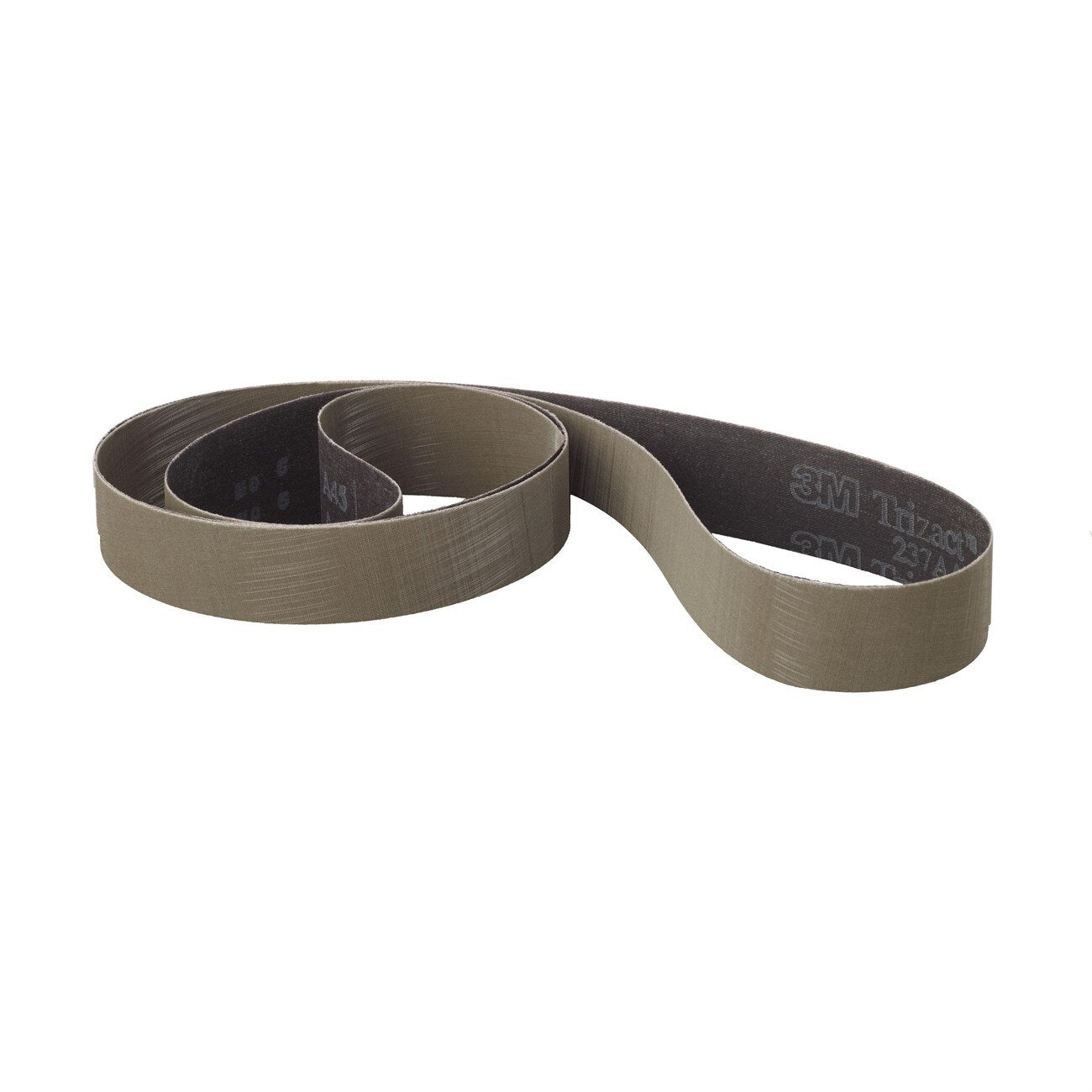

3M 7010308525 Trizact 237AA Abrasive Belt 354x4 Inch Ao

Product Description

The 3M 7010308525 is a Trizact 237AA abrasive belt built on an X-weight cloth backing with aluminum oxide mineral formed into microscopic three-dimensional pyramids using 3M proprietary microreplication technology. As the abrasive surface wears during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine surface finish from start to finish. The belt measures 354 inches in length and 4 inches in width, making it suited for high-production belt finishing operations. It is installed by machinists, metal fabricators, and finishing technicians working in automated or robotic grinding lines as well as manual applications.

This belt is designed for intermediate finishing and fine polishing operations on metal components prior to plating or buffing. The flexible cloth backing conforms to contoured surfaces, making it effective for parts with complex geometry. Its three-dimensional abrasive structure produces finer, more uniform finishes compared to conventional electrostatically coated abrasives, and the self-sharpening pyramid design runs cooler than standard abrasive formats, reducing heat-related surface damage during extended finishing cycles.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut and finish
• Pyramids stay sharp throughout belt life, reducing heat generation compared to conventional abrasives
• X-weight cloth backing provides flexibility for finishing over contoured and complex surfaces
• Three-dimensional abrasive design delivers repeatable, uniform finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt finishing machines and robotic grinding systems that accept 354-inch by 4-inch abrasive belts. Suitable for metal finishing applications requiring consistent surface finish prior to plating or buffing operations.

Installation Notes

Installation should be performed by a qualified machinist or finishing technician. Power down and de-energize the finishing machine before mounting or removing belts. Confirm the belt tracking and tension settings match the machine manufacturer's specifications before resuming operation. Inspect the belt for damage before each use and replace immediately if tears, delamination, or uneven wear are observed.

Technical Specifications

• Product Series: Trizact 237AA
• Abrasive Mineral: Aluminum Oxide
• Backing Type: X-Weight Cloth
• Belt Length: 354 inches
• Belt Width: 4 inches
• Weight: 47.24 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 051125871568

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308525
