3M 7010308454 Aluminum Oxide Cloth Belt P120 24x3 in

Product Description

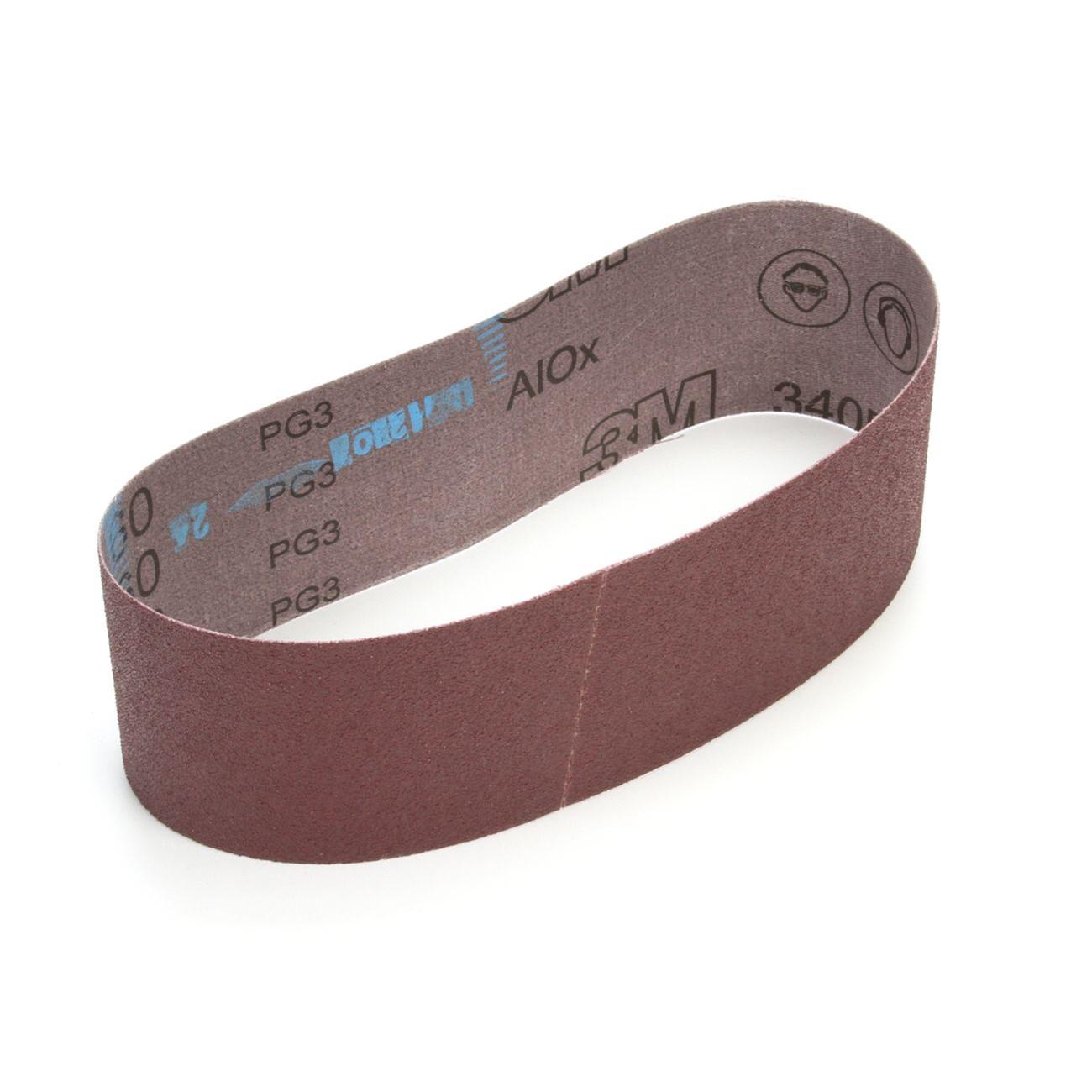

The 3M 7010308454 is an open-coat aluminum oxide cloth sanding belt designed for aggressive stock removal on wood and metal surfaces. The 340D series uses a heavyweight cloth backing bonded with a resin system that withstands high heat and pressure, extending abrasive life in high-production settings. At P120 grit, this belt delivers a balance of cut rate and surface finish suitable for intermediate sanding stages. The open-coat construction actively resists loading, keeping the belt cutting freely rather than glazing over. Licensed tradespeople and finishing professionals working in cabinet shops, metal fabrication, and general woodworking will find this belt well-suited to demanding production schedules.

This belt measures 24 inches in length and 3 inches in width, fitting standard wide belt sanders, edge sanders, and portable belt sanding machines configured for that contact dimension. It is appropriate for both wood substrates, including high-resin species such as pine, and metal surfaces where consistent aluminum oxide abrasion is required. The washable backing allows the belt to be cleaned and reused on high-loading materials, reducing consumable turnover in production environments. The unit of measure is each, and a minimum order quantity of 50 units applies.

Key Features

• Premium aluminum oxide abrasive grain delivers increased cut rate and extended abrasive service life
• Open-coat construction resists loading on all wood species, including high-resin substrates like pine
• Heavyweight cloth backing supports durability in high-production sanding environments
• Washable backing enables repeated use, lowering consumable cost on loading-prone materials
• Resin bond system withstands elevated heat and pressure for longer belt life under continuous use

Compatibility

Designed for use on wide belt sanders, edge sanders, and portable belt sanders configured for a 24-inch by 3-inch belt. Suitable for sanding applications on wood and metal.

Installation Notes

Install with the arrow on the belt backing aligned to the direction of travel on the sander to ensure the splice seam runs correctly and does not lift under load. Confirm the sander platens and tracking guides are clear of debris before mounting a new belt. Disconnect or lock out power to the sander before changing belts, following applicable OSHA lockout/tagout procedures. Inspect the belt for tears or splice separation before each use.

Technical Specifications

• Abrasive Type: Aluminum Oxide
• Grit: P120
• Belt Length: 24 inches
• Belt Width: 3 inches
• Backing Material: Heavyweight Cloth
• Coat Type: Open Coat
• Bond Type: Resin
• Backing Feature: Washable
• Weight: 0.08 pounds
• UPC: 00051144274703

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308454
