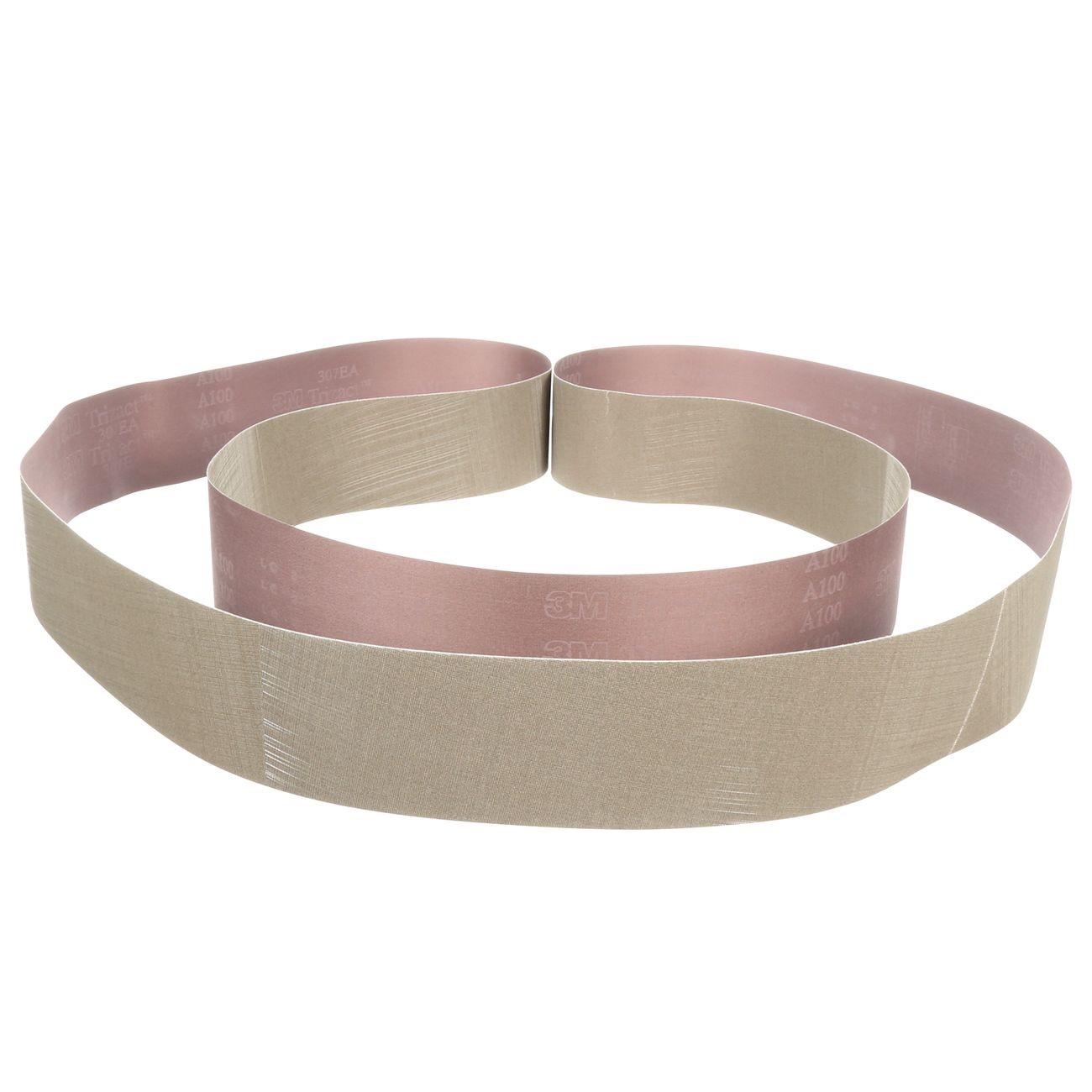

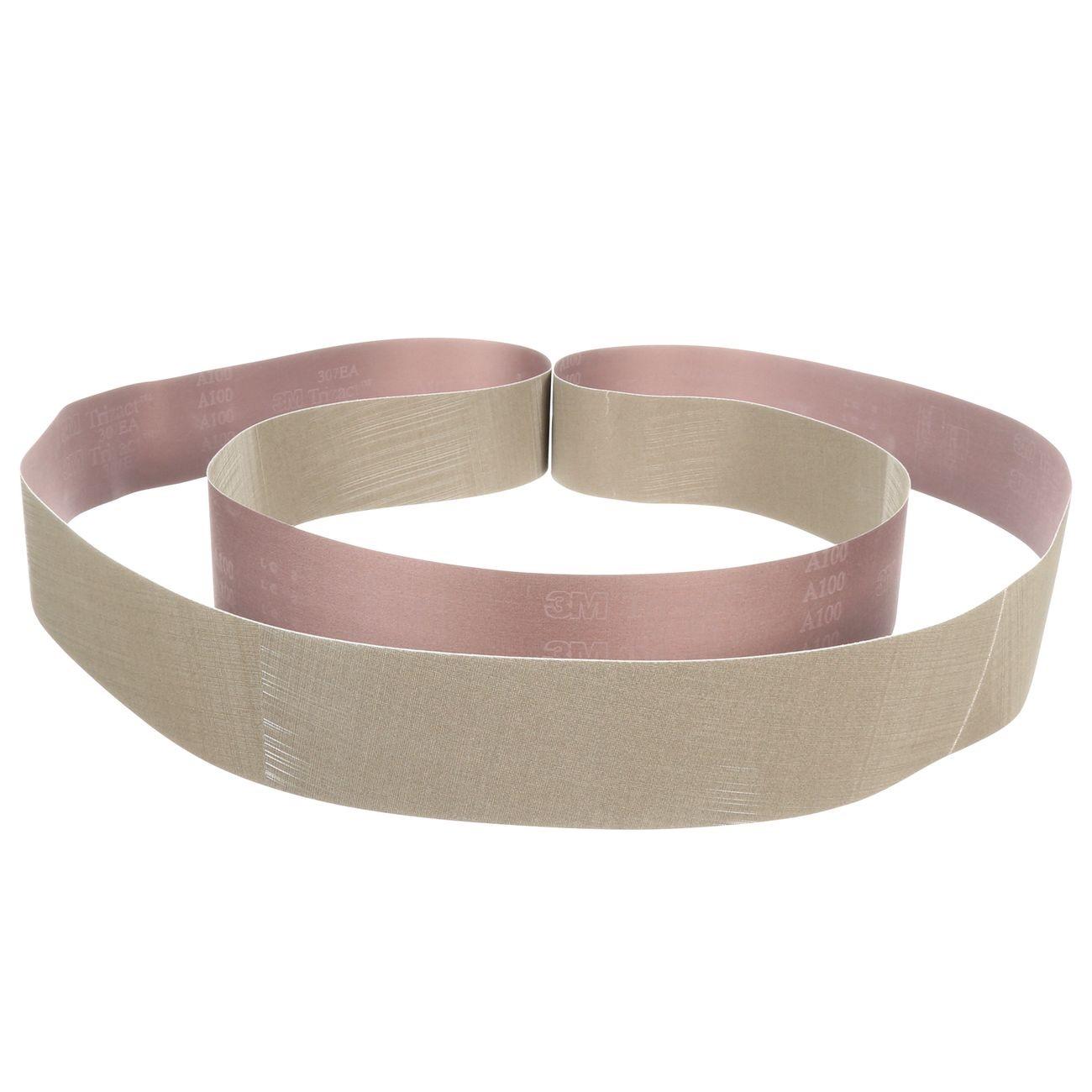

3M 7010308276 Abrasive Belt 132x3 Inch Aluminum Oxide

Product Description

The 3M 7010308276 is a Trizact 307EA coated abrasive belt built on a flexible rayon cloth backing with aluminum oxide abrasive mineral formed into precision microreplication pyramids. As the pyramids wear during use, fresh sharp mineral is continuously exposed from within the structure. This produces a consistent cut rate and a predictable, fine surface finish across the full life of the belt. At 132 inches long and 3 inches wide, it is sized for wide-belt finishing machines used in metal fabrication and finishing operations. Installers and operators in industrial grinding and surface preparation work are the primary users.

This belt is designed for intermediate finishing and fine polishing applications on metal substrates prior to plating or buffing operations. The flexible rayon backing conforms to contoured surfaces, making it well suited for applications where consistent finish quality across complex geometry is required. Its three-dimensional abrasive structure also makes it suitable for robotic or automated finishing lines where repeatability across an entire belt run is critical.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening pyramids for consistent cut throughout belt life
• Fresh sharp mineral is continuously exposed as pyramids wear, extending usable life compared to conventional coated abrasives
• Flexible rayon cloth backing conforms to contoured and complex surfaces
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Three-dimensional abrasive design supports consistent, repeatable results in robotic and automated finishing applications
• Suited for intermediate finishing and fine polishing steps before plating or buffing

Compatibility

Designed for use on wide-belt finishing machines accepting belts 132 inches in length and 3 inches in width, typically used in metal fabrication, polishing, and surface preparation operations.

Installation Notes

Belt installation should be performed by a qualified machine operator following the equipment manufacturer's belt-tracking and tensioning procedures. Ensure the machine is fully powered down and de-energized before changing belts. Confirm belt orientation matches the arrow or run-direction marking on the belt backing before starting the machine. Always verify proper belt tracking before beginning a production run.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 0.33 pounds
• UOM: Each
• UPC: 00051125086578

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308276
