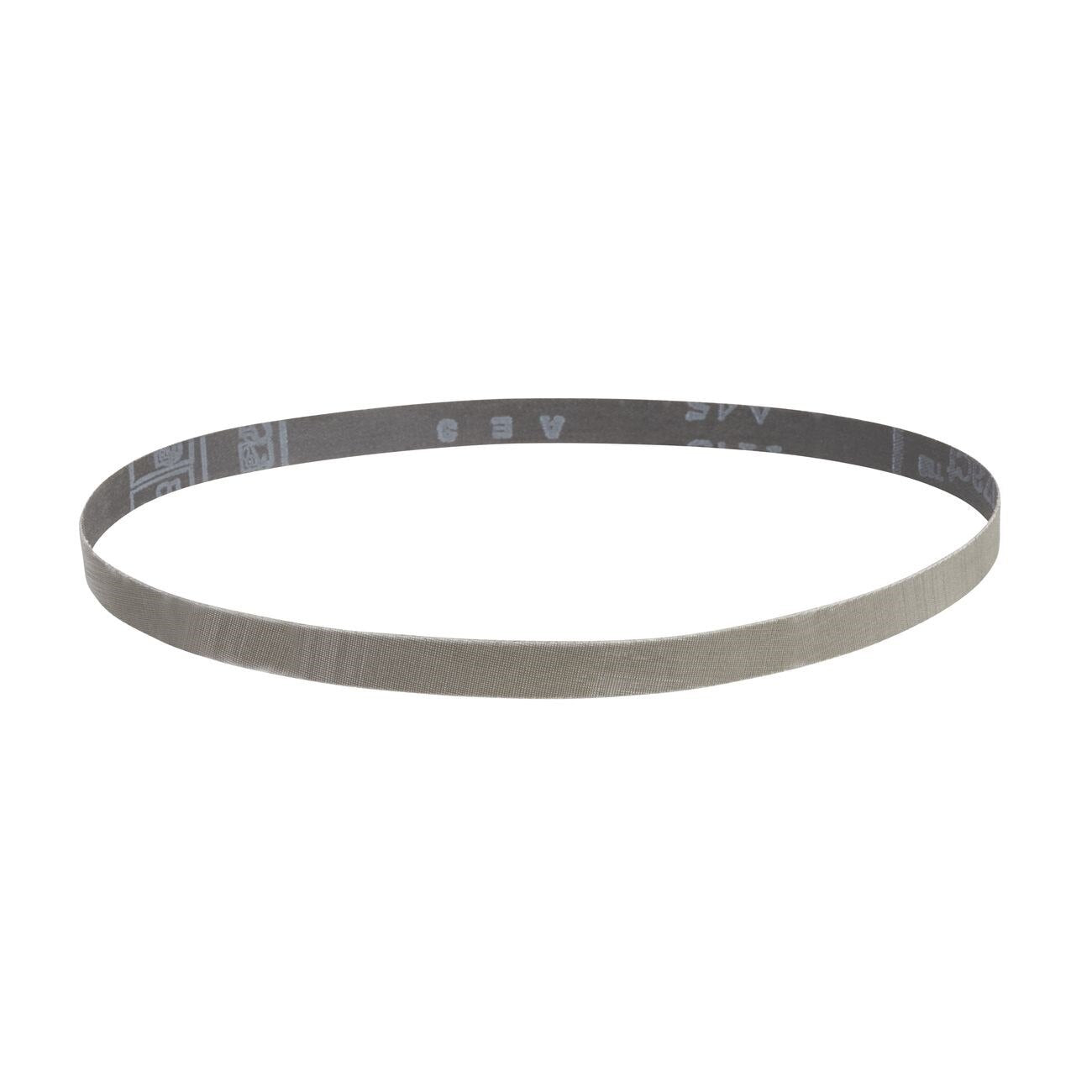

3M 7010308275 Trizact 237AA Abrasive Belt 24x3/8 in

Product Description

The 3M 7010308275 is a Trizact 237AA abrasive belt engineered for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramid tips wear, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and predictable fine finish throughout the belt's life. At 24 inches long and 3/8 inch wide, this belt is suited for precision finishing on narrow-contact applications. Installers and fabricators in metalworking, plating prep, and automated robotic finishing operations rely on this format.

This belt is designed for intermediate finishing and fine polishing operations prior to plating or buffing on metal workpieces. The flexible cloth backing conforms to contoured surfaces, making it effective for both flat and irregular profiles. Its three-dimensional abrasive structure produces more consistent finishes than conventional electrostatically coated abrasives and performs reliably in robotic and automated finishing systems where repeatability is critical. It is sold individually (each) and is well suited for high-volume production environments.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut and finish
• Pyramids expose fresh mineral as they wear, running cooler than conventional abrasives and reducing heat-related workpiece damage
• Flexible X-weight cloth backing conforms to contoured and irregular surfaces
• Three-dimensional abrasive design delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Optimized for pre-plating and pre-buffing polishing stages

Compatibility

Designed as a replacement-style abrasive belt for belt finishing machines accepting a 24-inch by 3/8-inch belt format, commonly used in metalworking, fabrication, and automated finishing lines.

Installation Notes

Installation should be performed by a qualified machine operator or metalworking technician familiar with belt finishing equipment. Power down and lock out the machine before mounting or removing the belt. Confirm belt tracking alignment before resuming operation. Follow the equipment manufacturer's guidelines for belt tension and speed ratings appropriate to cloth-backed abrasive belts.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Belt Length: 24 inches
• Belt Width: 3/8 inch
• Abrasive Structure: Microreplication (3D Pyramid)
• Application: Intermediate Finishing and Fine Polishing
• Color: Gray
• Unit of Measure: Each
• Weight: 0.02 pounds
• UPC: 00051125080903

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308275
