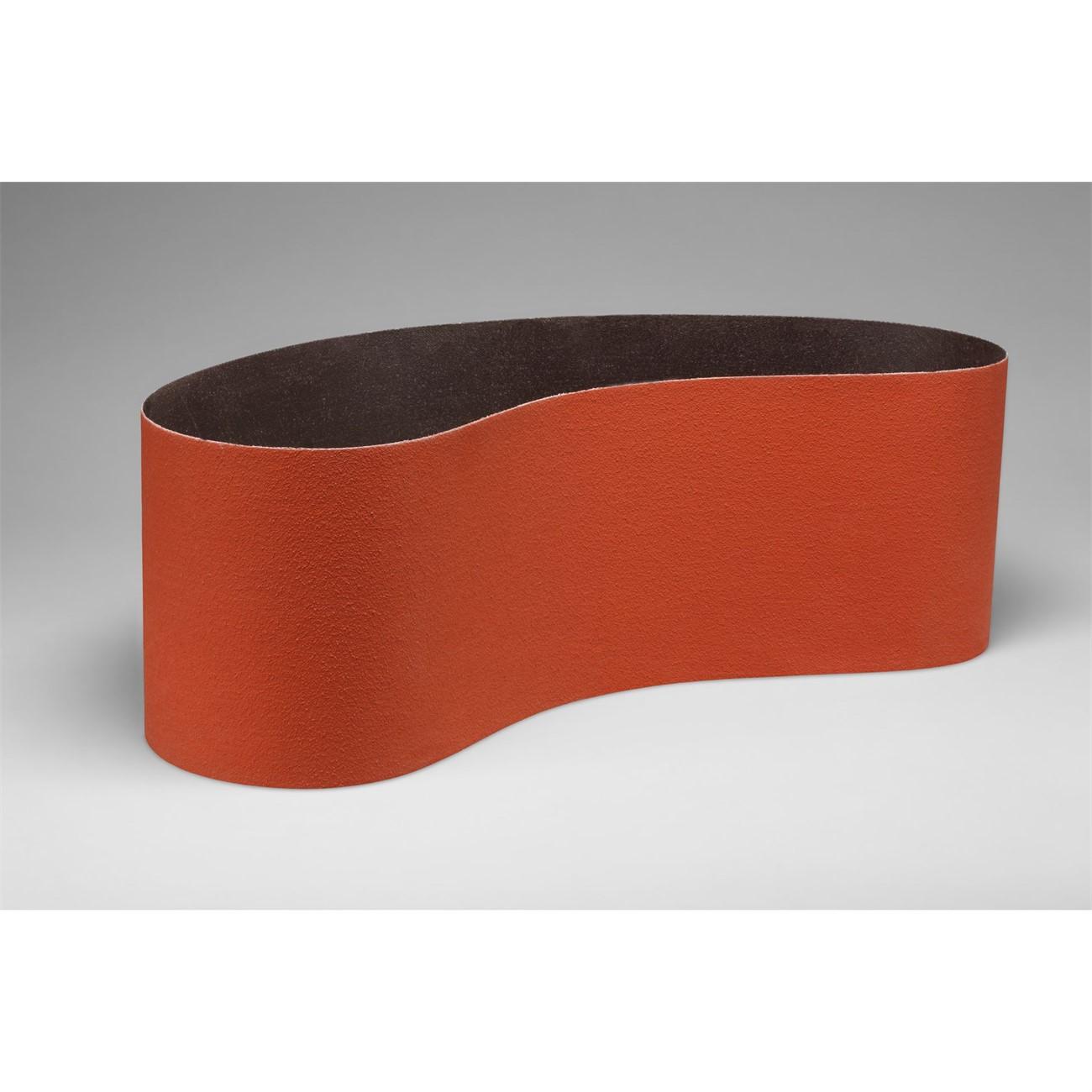

3M 7010308260 747D Abrasive Belt P150 Grit 19.87x8 Inch

Product Description

The 3M 7010308260 is a coated abrasive belt in the 747D series, designed for stroke sanding and finishing operations on metal surfaces. It combines ceramic aluminum oxide grain with an anti-friction backing to deliver consistent cut rates and controlled surface finishes. The X-weight cotton backing resists tearing under aggressive sanding and grinding pressure. A built-in grinding aid reduces heat buildup during use, extending belt life and protecting workpiece integrity. This belt weighs 0.24 pounds and measures 19.87 inches in length by 8 inches in width, suiting it for industrial stroke sanding machines and wide-contact finishing setups.

This belt is engineered for metal finishing applications on a range of substrates, including stainless steel, nickel alloys, and other ferrous and non-ferrous metals. It is well suited for fabrication shops, weld blending, and surface prep work where consistent scratch patterns and finish control are required. The P150 grit rating positions it in the intermediate finishing range, removing moderate stock while leaving a refined surface suitable for subsequent polishing or coating steps. Metal fabricators and industrial finishing technicians are the primary installers and users of this product.

Key Features

• Ceramic aluminum oxide blend delivers high cut rate and extended belt life
• Anti-friction backing allows smooth belt travel across the workpiece
• X-weight cotton backing withstands aggressive sanding and grinding loads
• Grinding aid reduces heat generation and lowers grinding temperatures
• P150 grit provides intermediate stock removal with a refined surface finish
• Effective on stainless steel, nickel, and other metal substrates

Compatibility

Designed for use on stroke sanders and wide-belt finishing machines configured for 19.87-inch by 8-inch abrasive belts, with primary application on metal substrates including stainless steel and nickel alloys.

Installation Notes

Installation should be performed by qualified finishing technicians familiar with abrasive belt machinery. Power down and lock out the machine before mounting or removing the belt. Verify belt tracking and tension according to the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or edge damage before each use.

Technical Specifications

• Series: 747D
• Abrasive Type: Ceramic Aluminum Oxide Blend
• Grit: P150
• Belt Length: 19.87 inches
• Belt Width: 8 inches
• Backing Material: X-Weight Cotton Cloth
• Weight: 0.24 pounds
• UPC: 00051119779974

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308260
