3M 7010308234 Trizact 217EA Abrasive Belt 148x2 Inch Ao

Product Description

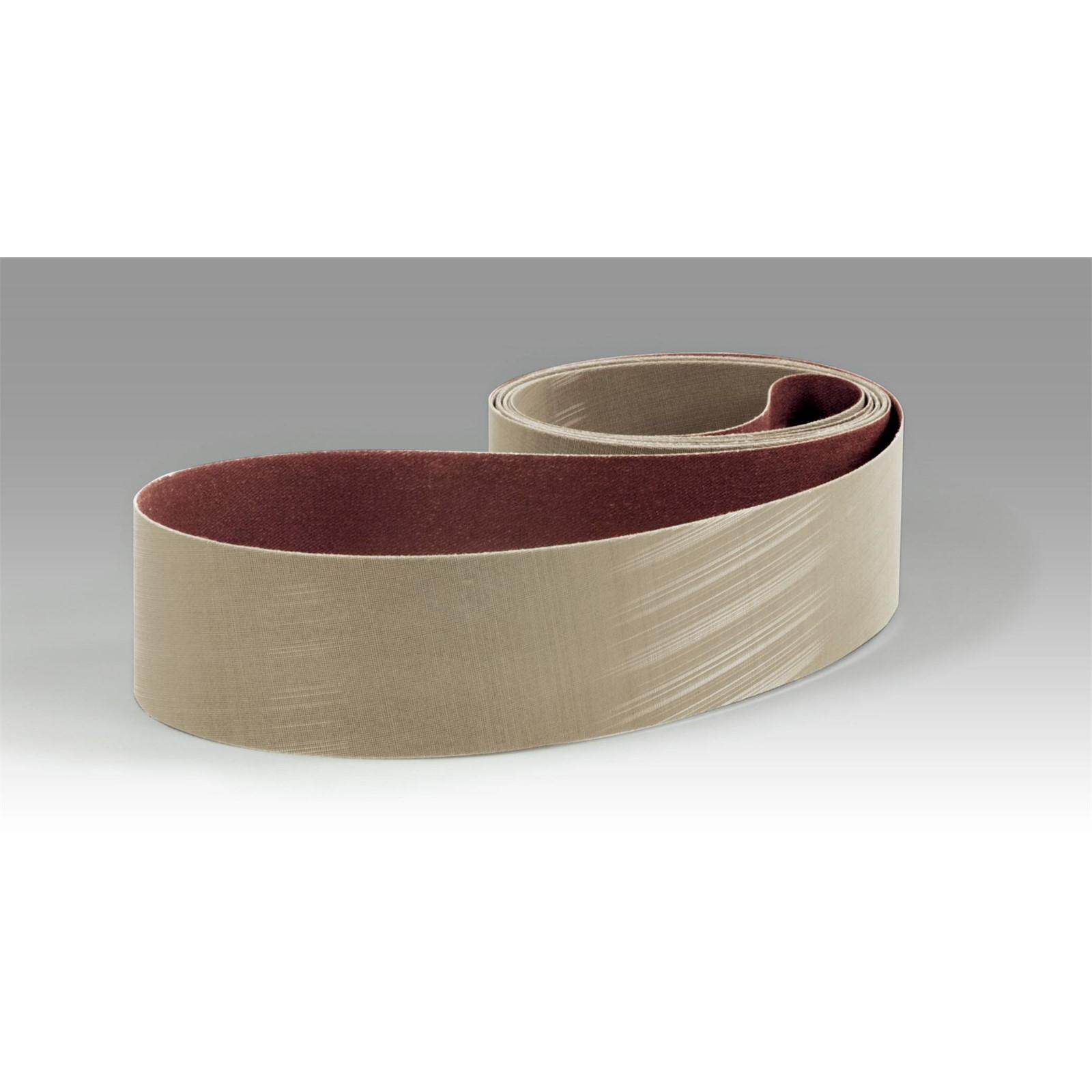

The 3M 7010308234 is a Trizact 217EA coated abrasive belt engineered for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It measures 148 inches long by 2 inches wide and uses 3M proprietary microreplication technology: micron-graded aluminum oxide particles are formed into precision pyramids bonded to a JE-weight rayon cloth backing. As the pyramids wear, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable surface finish from the first pass to the last. Licensed tradespeople and industrial finishers in metal fabrication, aerospace, and job-shop settings use this belt where repeatable, fine results matter.

This belt is suited for intermediate finishing and fine polishing steps immediately prior to plating or buffing operations on metal workpieces. The flexible JE-weight rayon backing conforms to contoured and irregular surfaces, making it well-suited for finishing complex profiles. Its self-renewing abrasive structure and built-in grinding aid make it a reliable choice for robotic or automated belt finishing systems where consistent performance across long production runs is required. It is also appropriate for light-pressure manual applications where maintaining cut without heat damage is critical.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral for consistent cut throughout belt life
• JE-weight rayon cloth backing conforms to contoured and complex surface profiles
• Built-in grinding aid reduces heat buildup, helping prevent workpiece warping and discoloration
• Produces finer finishes than conventional coated abrasive belts
• Well-suited for robotic and automated finishing applications requiring long, consistent abrasive life
• Effective for light-pressure applications where controlled breakdown and steady cut rate are needed

Compatibility

Designed for use on belt finishing machines and robotic grinding systems that accept 148-inch by 2-inch abrasive belts; appropriate for ferrous and non-ferrous metal finishing ahead of plating or buffing operations.

Installation Notes

Install abrasive belts only on equipment rated for the belt dimensions and operating speeds specified by the machine manufacturer. Power down and de-energize the belt grinder or finishing machine completely before mounting or removing the belt. Ensure belt tracking is correctly adjusted before resuming operation to prevent edge damage or premature wear. Follow all applicable workplace safety standards and equipment manufacturer guidelines when operating abrasive belt machinery.

Technical Specifications

• Belt Length: 148 inches
• Belt Width: 2 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: JE-weight Rayon Cloth
• Abrasive Technology: Trizact Microreplication
• Color: Tan
• Unit Weight: 0.44 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 00051115277832

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308234
