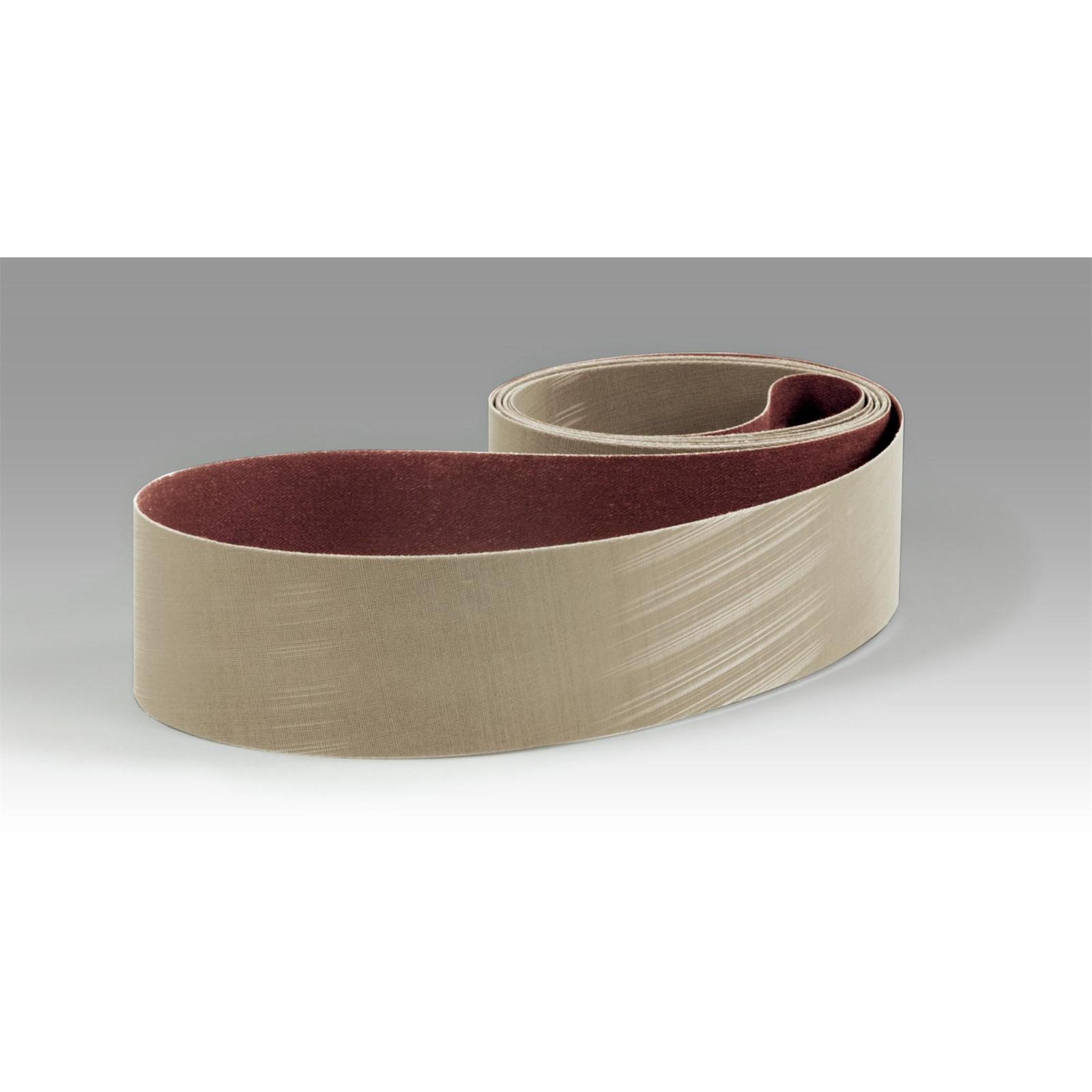

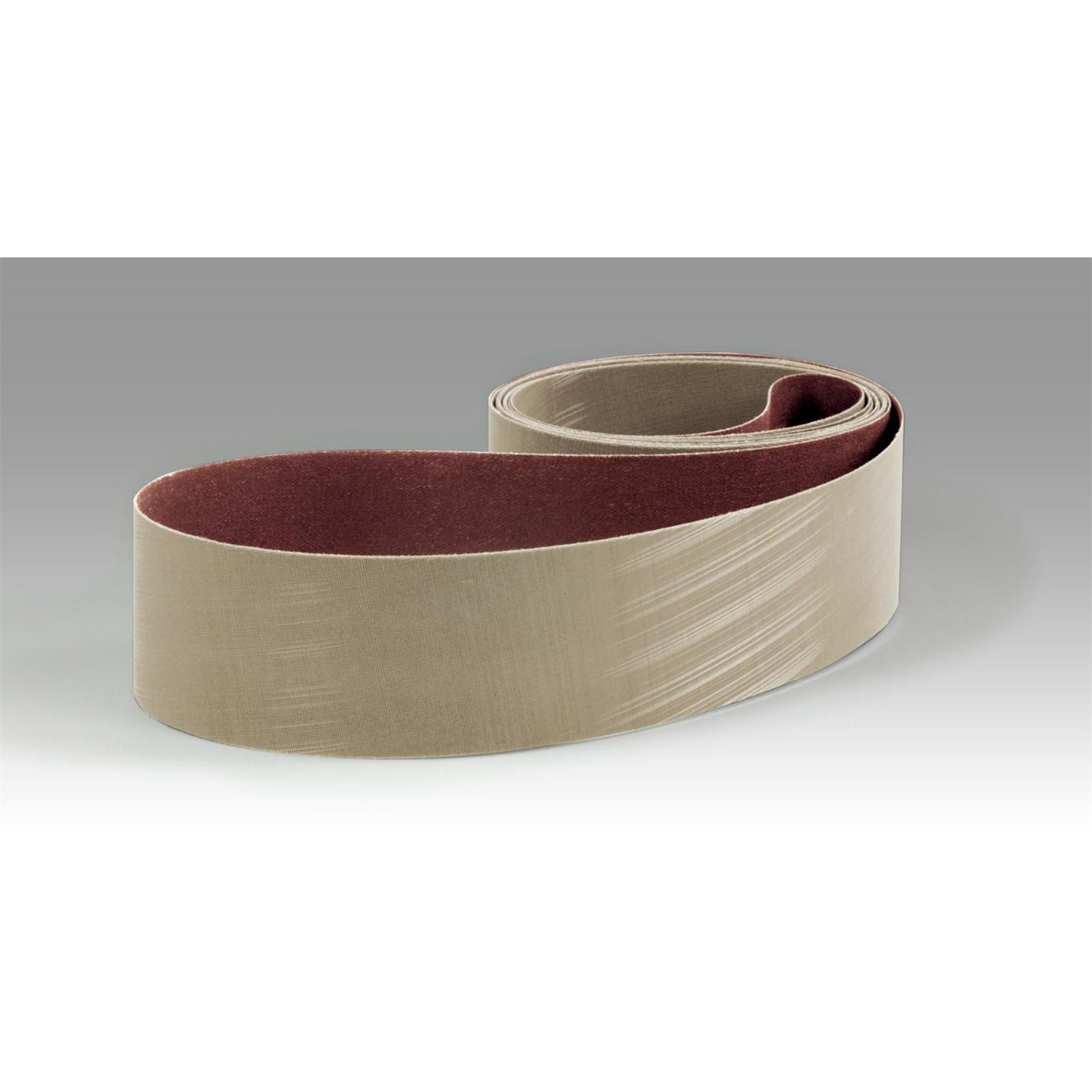

3M 7010308228 Abrasive Belt 132x2.5 Inch Aluminum Oxide

Product Description

The 3M 7010308228 is a Trizact 217EA coated abrasive belt designed for intermediate finishing and fine polishing on metal workpieces prior to plating or buffing operations. It uses 3M microreplication technology in which micron-graded aluminum oxide mineral is formed into uniform pyramidal structures and bonded to a JE-weight rayon cloth backing. As the pyramids wear down during use, fresh, sharp mineral is continuously exposed at the cutting surface. The result is a consistent cut rate and a predictable, fine finish throughout the full service life of the belt. At 132 inches long and 2.5 inches wide, it is sized for production-scale belt finishing equipment.

This belt is well suited for metalworking applications that require repeatable surface finishes across high part volumes. It performs in light-pressure finishing scenarios and is particularly effective on contoured surfaces where the flexible JE-weight rayon backing conforms to the workpiece geometry. The consistent cut behavior and extended abrasive life make it appropriate for robotic and automated finishing lines where belt changeover frequency directly affects throughput. Typical applications include pre-plate and pre-buff finishing of stainless steel, aluminum, and other metals in fabrication and manufacturing environments.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral as they wear, sustaining cut consistency across belt life
• JE-weight rayon cloth backing flexes over contoured surfaces for uniform contact and finish
• Produces finer surface finishes than conventional coated abrasive belts
• Grinding aid integrated into the construction helps reduce heat buildup, limiting warping and discoloration of workpieces
• Consistent performance profile makes it suitable for robotic and automated finishing applications
• Optimized for light-pressure use where controlled mineral breakdown is required

Compatibility

Designed for use on belt finishing machines accepting 132 inch by 2.5 inch abrasive belts; suited for intermediate and fine finishing of metals prior to plating or buffing operations.

Installation Notes

Installation should be performed by qualified machine operators or tooling technicians familiar with belt finishing equipment. Confirm belt tracking tension and tracking adjustment per the equipment manufacturer guidelines before running. Inspect the belt splice and ensure the arrow on the backing, if present, aligns with the direction of machine travel. Disconnect and lock out power to the finishing machine before changing belts.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Abrasive Technology: Microreplication (Trizact)
• Backing Material: JE-Weight Rayon Cloth
• Belt Length: 132 inches
• Belt Width: 2.5 inches
• Application: Intermediate finishing and fine polishing prior to plating or buffing
• Weight: 0.28 pounds
• UOM: Each
• UPC: 00051115276071

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308228
