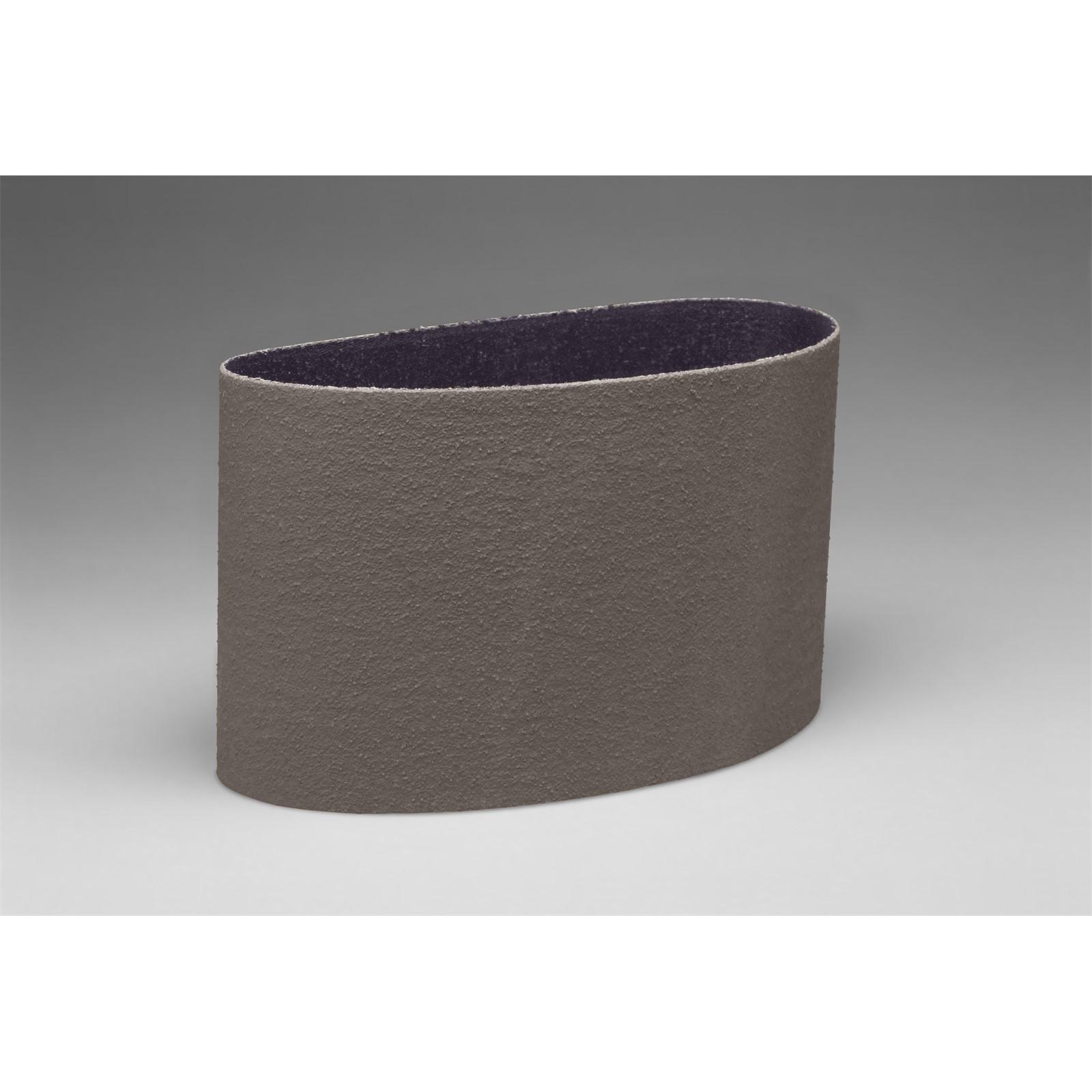

3M 7010308224 Abrasive Belt 328x6 Inch Ao Cloth

Product Description

The 3M 7010308224 is a Trizact 237AA coated abrasive belt built on an X-weight cloth backing with aluminum oxide abrasive mineral formed into three-dimensional microreplication pyramids. As the pyramid tips wear during use, fresh, sharp abrasive is continuously exposed, delivering a consistent cut rate and a predictable surface finish throughout the life of the belt. At 328 inches long and 6 inches wide, this belt is sized for large-format grinding and finishing equipment. It weighs 1.94 pounds. Metalworking shops, fabrication facilities, and automated robotic finishing lines use this belt for intermediate finishing and fine polishing operations.

This belt is suited for intermediate finishing and fine polishing prior to plating or buffing on metal workpieces. The flexible X-weight cloth backing conforms to contoured surfaces, making it appropriate for both flat-stock and complex-profile parts. The three-dimensional abrasive structure produces finer, more uniform surface finishes than conventional electrostatically coated abrasives, which is especially valuable in robotic or automated finishing cells where consistent, repeatable results are critical. It is used in metal fabrication, aerospace component finishing, and precision machining environments.

Key Features

• Microreplication technology forms aluminum oxide particles into self-sharpening pyramids for consistent cut and finish
• Fresh abrasive mineral is continually exposed as pyramid tips wear, extending effective belt life
• X-weight cloth backing provides flexibility for finishing over contours and complex profiles
• Three-dimensional abrasive design delivers repeatable, predictable finishes in robotic finishing applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Optimized for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on large-format belt grinding and finishing equipment that accepts 328-inch by 6-inch abrasive belts, including robotic and automated finishing systems in metalworking and fabrication applications.

Installation Notes

Installation should be performed by qualified machine operators or maintenance technicians familiar with industrial belt grinders and finishing equipment. Disconnect and lock out all power to the machine before changing the belt. Verify belt tracking and tension according to equipment manufacturer specifications before resuming operation. Inspect the contact wheel or platen for wear or damage before mounting a new belt.

Technical Specifications

• Belt Length: 328 inches
• Belt Width: 6 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Technology: Microreplication (Trizact)
• Color: Gray
• Weight: 1.94 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 00051115274503

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308224
