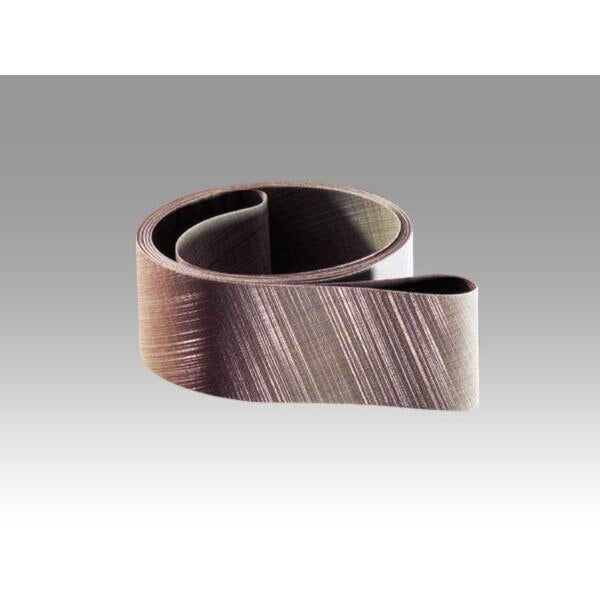

3M 7010308220 Abrasive Belt 132x1 Inch Aluminum Oxide

Product Description

The 3M 7010308220 is a Trizact 307EA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to a flexible rayon cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish throughout the belt's service life. At 132 inches long and 1 inch wide, this belt fits narrow-contact and robotic finishing setups common in metal fabrication and surface preparation work.

This belt is suited for metal finishing operations that require a uniform, fine surface profile prior to plating, buffing, or coating. The flexible rayon backing conforms to contoured and irregular surfaces, making it effective on formed parts and tubing as well as flat stock. It is commonly used in automated and robotic grinding cells where finish consistency across high part volumes is required. Manual bench and stroke sanding applications also benefit from the self-renewing abrasive structure.

Key Features

• Microreplication technology forms aluminum oxide into abrasive pyramids for consistent, self-sharpening cut
• Fresh mineral is continuously exposed as pyramids wear, extending usable belt life
• Runs cooler than conventional abrasives, reducing heat-related surface damage
• Flexible rayon cloth backing conforms to contoured and complex geometries
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Consistent finish output makes it well suited for robotic and automated finishing lines

Compatibility

Designed for use on narrow-contact belt sanders, robotic finishing cells, and stroke sanders that accept a 132-inch by 1-inch abrasive belt configuration. Intended for metal substrates requiring fine surface finishing prior to plating or buffing.

Installation Notes

Installation should be performed by qualified finishing or fabrication personnel. Verify belt tracking direction markings before mounting to avoid premature edge wear. Ensure the drive and idler pulleys are clean, properly aligned, and within the belt width specification before tensioning. Power down and lock out the machine before changing belts in accordance with applicable OSHA lockout/tagout procedures.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 1 inch
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 0.15 pounds
• Unit of Measure: Each
• UPC: 00051115273469

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308220
